3. ECN-303/304 (OPTION)
3-6
3.4 How to Mount the Rack for the Processor Unit
After completing the wiring, remount the rack if it was removed at section 3.2.
Note: Leave sufficient space at the sides and rear of the unit to facilitate maintenance.
1. Confirm that the power switch on the EC-3000/3005 is turned off before doing this
procedure.
2. Set the rack for the processor unit to the rails until the rack contacts the stoppers
on the rails.
Note 1: When remounting the processor unit from the console, be careful not to
apply tension to cables.
Note 2: The processor unit weighs 20 kg. Hold the rack securely so that it will not
drop to the deck.
Note 3: Do not tilt the processor unit to insert into the console unit.
If you could not put the rack on the rails immediately, you can rest the rack on the
spacers shown below.
3. Fasten the cables from the processor unit with clamps at the left and right hand
sides of the rack at the position of the red-colored marks on the cables.

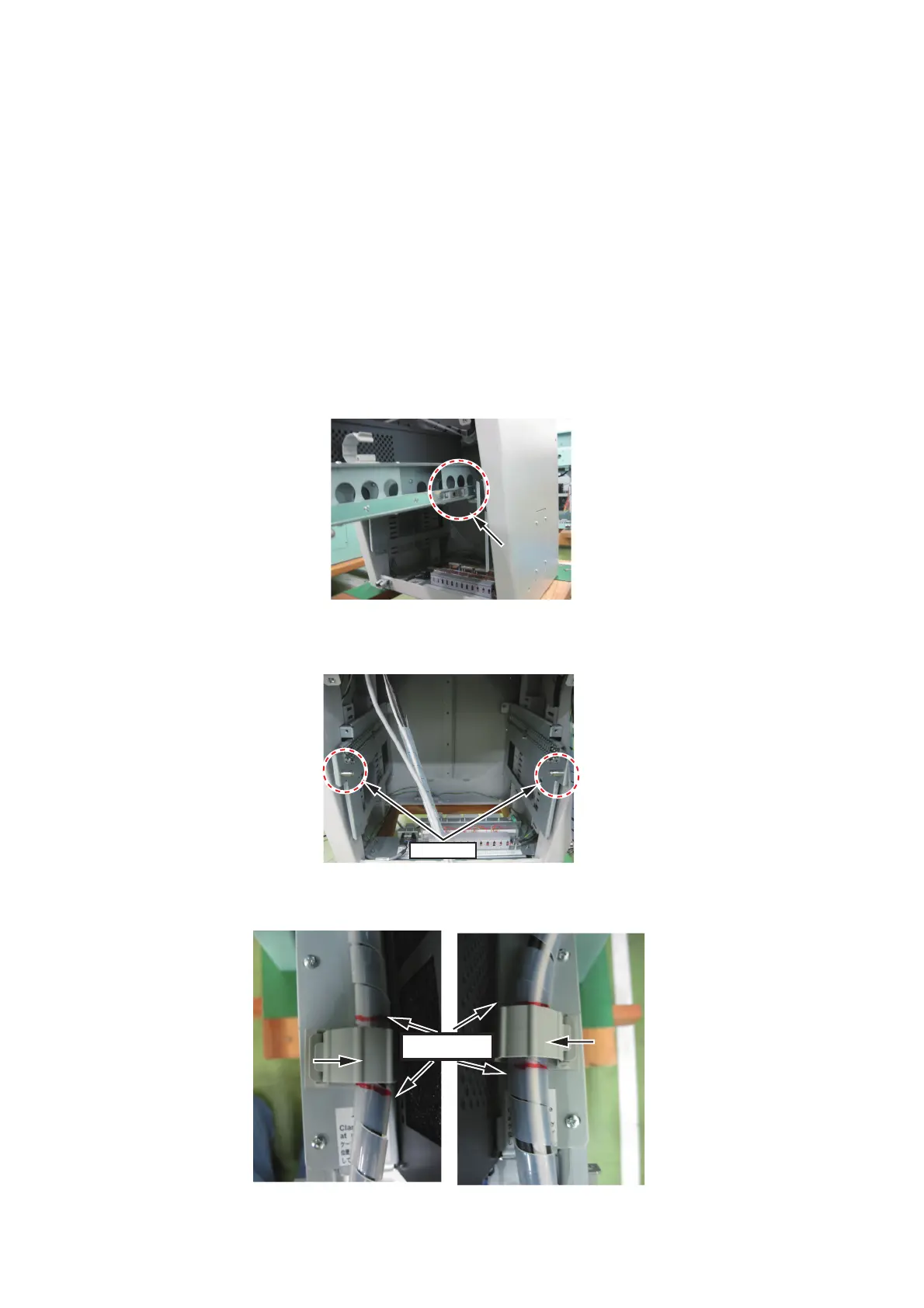

Spacers
Rack (left)
䚷䚷䚷䚷䚷䚷䚷䚷䚷
Rack (right)
Marks (red)
ClampClamp
ClampClamp
