Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage the equipment.
Use only the specified power cable.
Fire or damage to the equipment can result
if a different cable is used.
Attach protective earth
securely to the ship's body.
The protective earth
(grounding) is required for the
AC power supply to prevent
electrical shock.
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Turn off the power at the mains switch-
board before beginning the installation.
Fire, electrical shock or serious injury can
result if the power is left on or is applied
while the equipment is being installed.
ELECTRICAL
SHOCK
HAZARD
Mandatory Action
Prohibitive Action
WARNING
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided,
can result in minor or moderate injury.

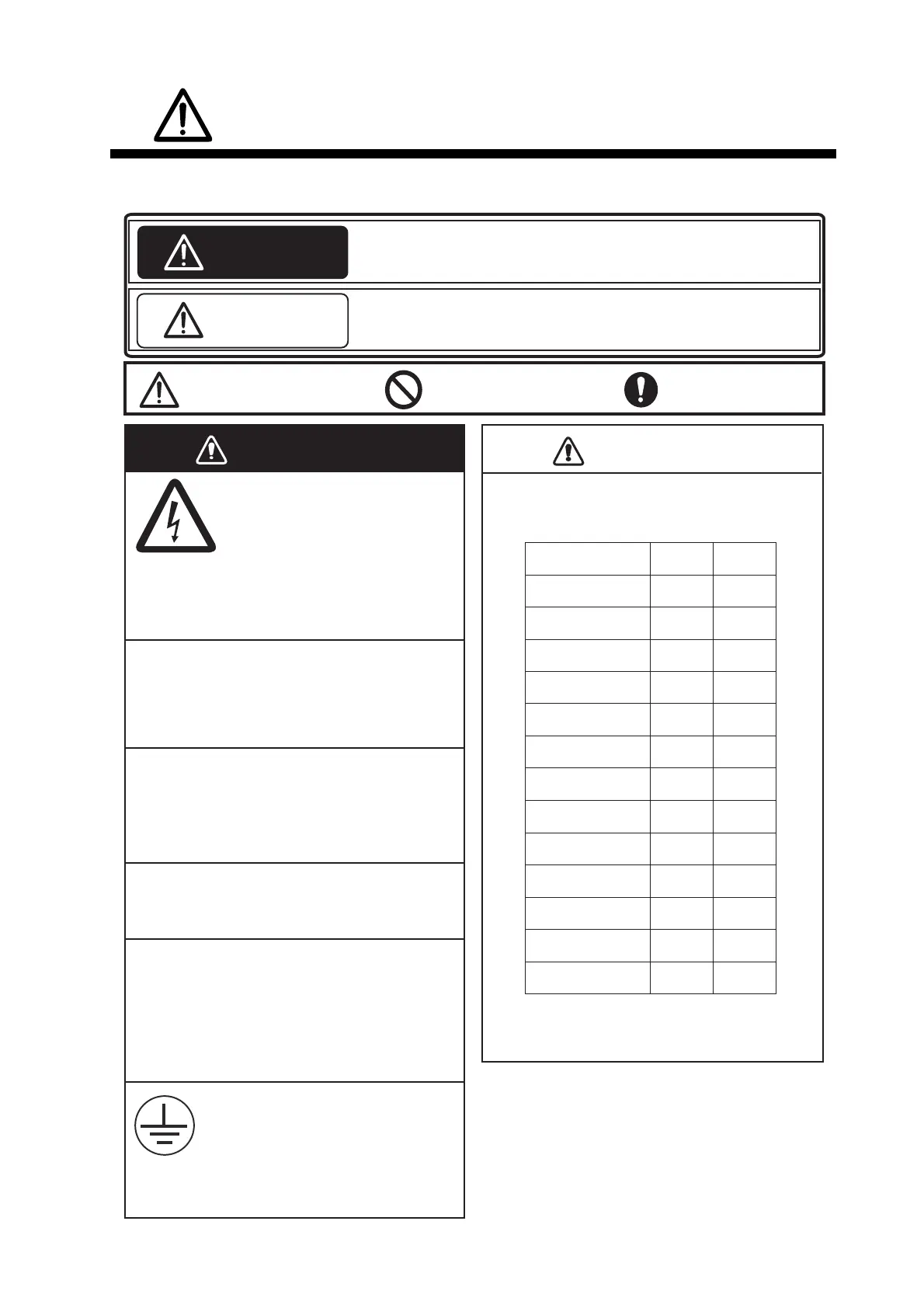

Warning, Caution
The installer of the equipment must read the safety instructions before attempting to
install the equipment.
Do not install the monitor unit,
processor unit or control unit where
they may get wet from rain or
water splash, or in a dusty environment.
Water in the units can result in fire,
electrical shock, or damage the equipment.
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Standard
compass
Monitor Unit
(MU-190)
1.65 m
1.05 m
Monitor Unit
(MU-231)
2.55 m
1.55 m
Trackball Control
Unit (RCU-026)
0.30 m 0.30 m
Steering
compass
Intelligent HUB
(HUB-3000)
2.05 m 1.35 m
1.20 m 0.75 m
Processor Unit
(EC-3000*/EC-3005)
2.65 m 1.70 m
Sensor Adapter
(MC-3000S)
ECDIS Control
Unit (RCU-024)
0.30 m 0.30 m
0.75 m 0.50 m
Sensor Adapter
(MC-3010A)
Sensor Adapter
(MC-3020D)
Sensor Adapter
(MC-3030D)
1.05 m 0.70 m
0.90 m 0.60 m
Switching HUB
(HUB-100)
1.00 m 0.60 m
Radar Connection
Box (RCB-002)
1.45 m
0.95 m
Monitor Unit
(MU-270W)
0.90 m
0.55 m
*: If the internal CPU board is ADP-556, the compass
safe distances are 2.40 m for standard compass, and
1.55 m for steering compass. The CPU board type can
be found in the [System 1] tab in the [About] window.
