9.2.3 Flush mount
1. Using the template (supplied), cut out a hole in the mounting location.
2. Prepare four pilot holes (for 3x20 self-tapping screws) at the mounting location.
3. Unscrew knobs to dismount the receiver unit from the hanger.
This hanger can be discarded.

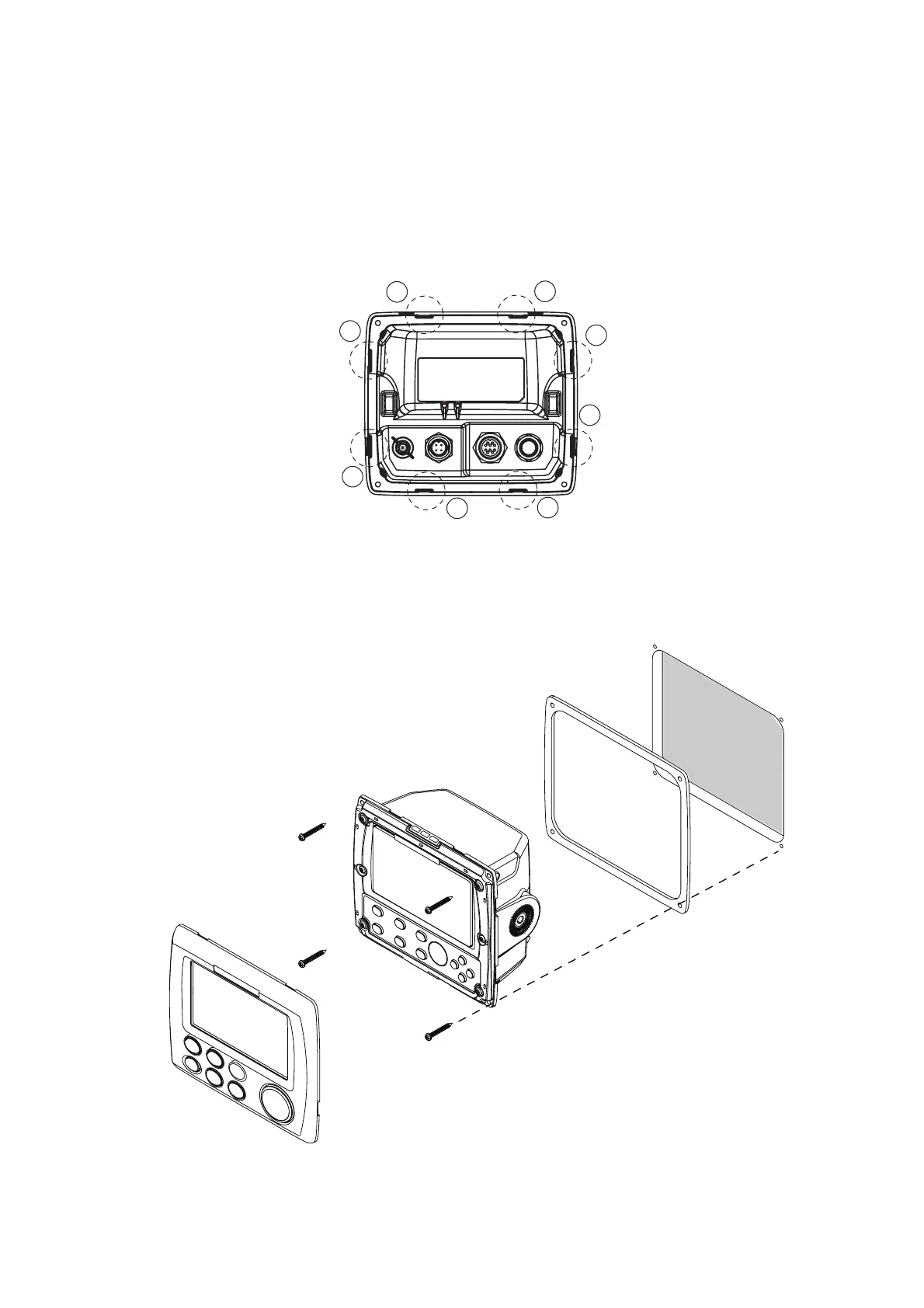

4. Remove the front panel from the receiver unit by unfastening the catches at the
rear of the panel by hands, in the order shown in the figure below.
5. Attach the mount cushion (sponge) to the hole made at step 1, or receiver unit.
6. Connect cables to the back of the receiver unit (see section 9.4).
7. Use four self-tapping screws (3x20, supplied) to fasten the receiver unit to the
mounting location, and re-attach the front panel.
1
2
3
4
5
6
7
8
Mount cushion
(sponge)
Self-tapping Screw
(3x20, 4 pcs.)
Front Panel
Receiver
Unit
Mounting
Hole
