5. INITIAL SETTINGS
20
"DATA3" Port
• The output signal of this port is changed by jumper JP4 and JP5 between data out (IEC
61162-1/NMEA 0183 Ver.
1.5/Ver. 2.0) and log pulse.
• In case of data out, the same data of DATA1 port (#1 & #2) is output.

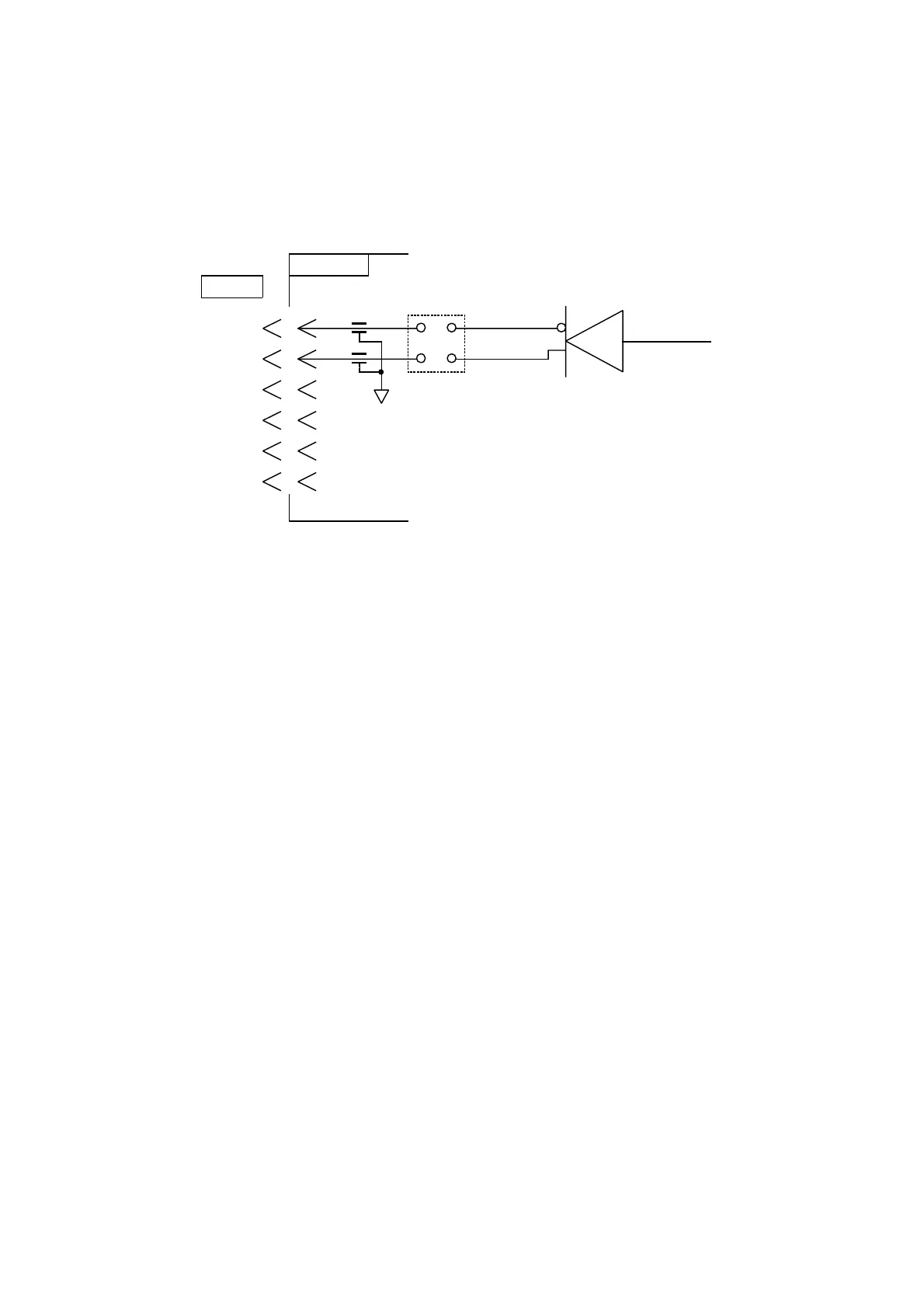

• Output Schematic Diagram (Talker)
20P8147
MJ-A6SRMD
14
13
12
1
3
2
4
DATA3
1
J6
2
3
4
5
6
FL5
FL6
JP4
TD-A
TD-B
U35
SN75ALS172
• Output Drive Capability
Max. 10mA
"DATA4" Port
IN/OUT signal is selected by the menu among the output of IEC 61162-1, NMEA 0183 Ver.
1.5/Ver. 2.0, PC output/input and DGPS signal. Also, to select DGPS signal, jumper JP3 is
required to connect "external DGPS receiver."
RS-232C or RS-422 level can be selected by the menu.
In case of output of IEC 61162-1, NMEA 0183 Ver. 1.5/Ver. 2.0,
• Data format can be selected by the menu between IEC 61162-1 and NMEA 0183 Ver.
1.5/Ver. 2.0.
• Output sentence is described on page 8 and 9.
• Each sentence is output at the interval entered.
To Next Page
