4. INSTALLATION
4-3
4.2 Receiver Unit
General mounting considerations
• The mounting location should be well ventilated and dry.
• The unit can be mounted on bulkhead or the desk.
• Secure the maintenance space shown in drawing at the back of this manual
for ease of maintenance and service.
• Compass safe distances are:
Standard: 1.15 m, Steering: 0.75 m
Mounting Method
Fasten the receiver unit with four self-tapping screws (5x20, supplied as
installation material). For bulkhead mounting, do the follows.
1. Tighten lower self-tapping screws so there is 5 mm clearance between
bottom of screw head and bulkhead.
2. Hook the receiver unit on the lower screws.
3. Tighten upper screws followed by the lower screws.

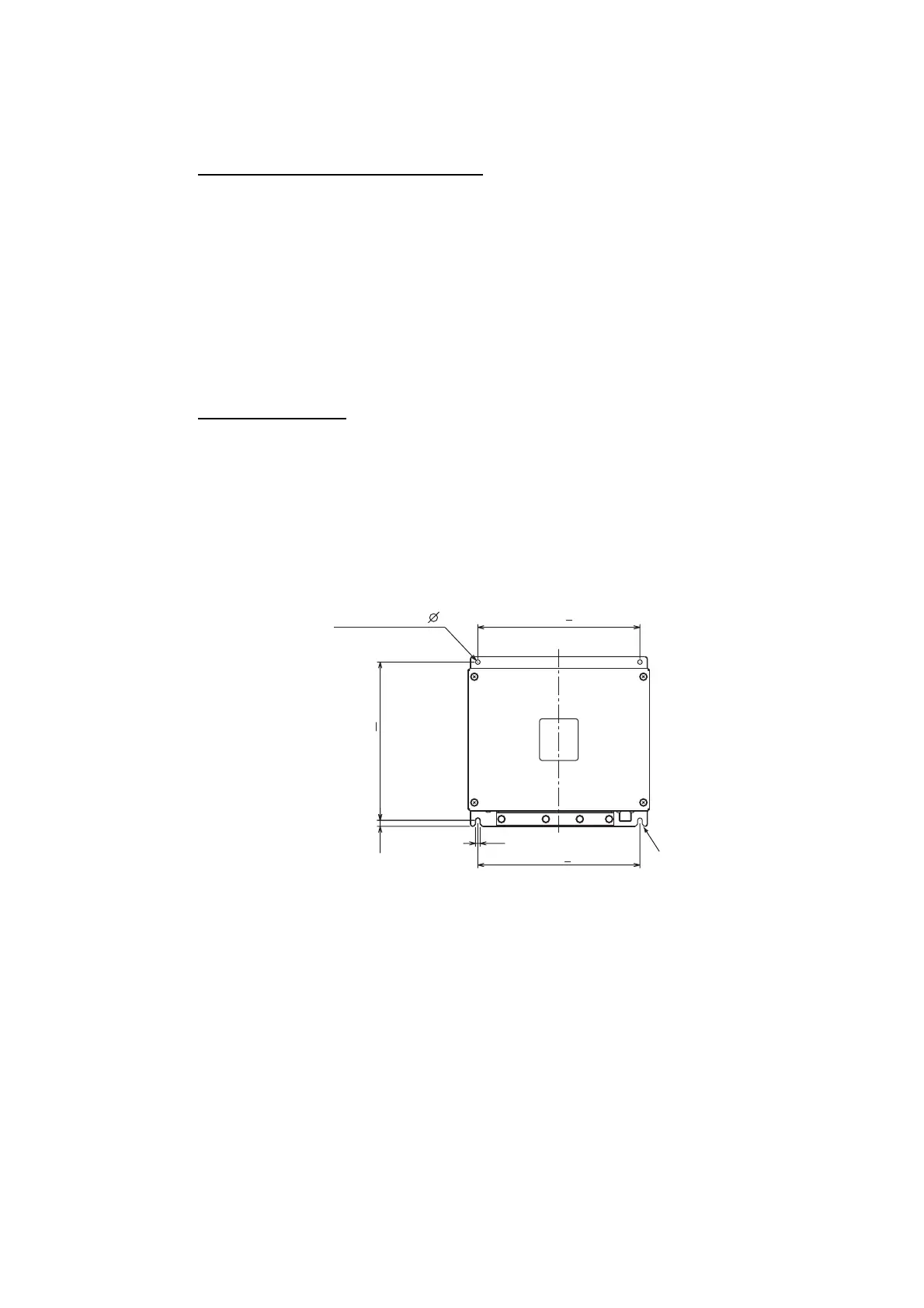

210+1
6
Fixing hole 2- 6
205+1
8
210+1
Notch
