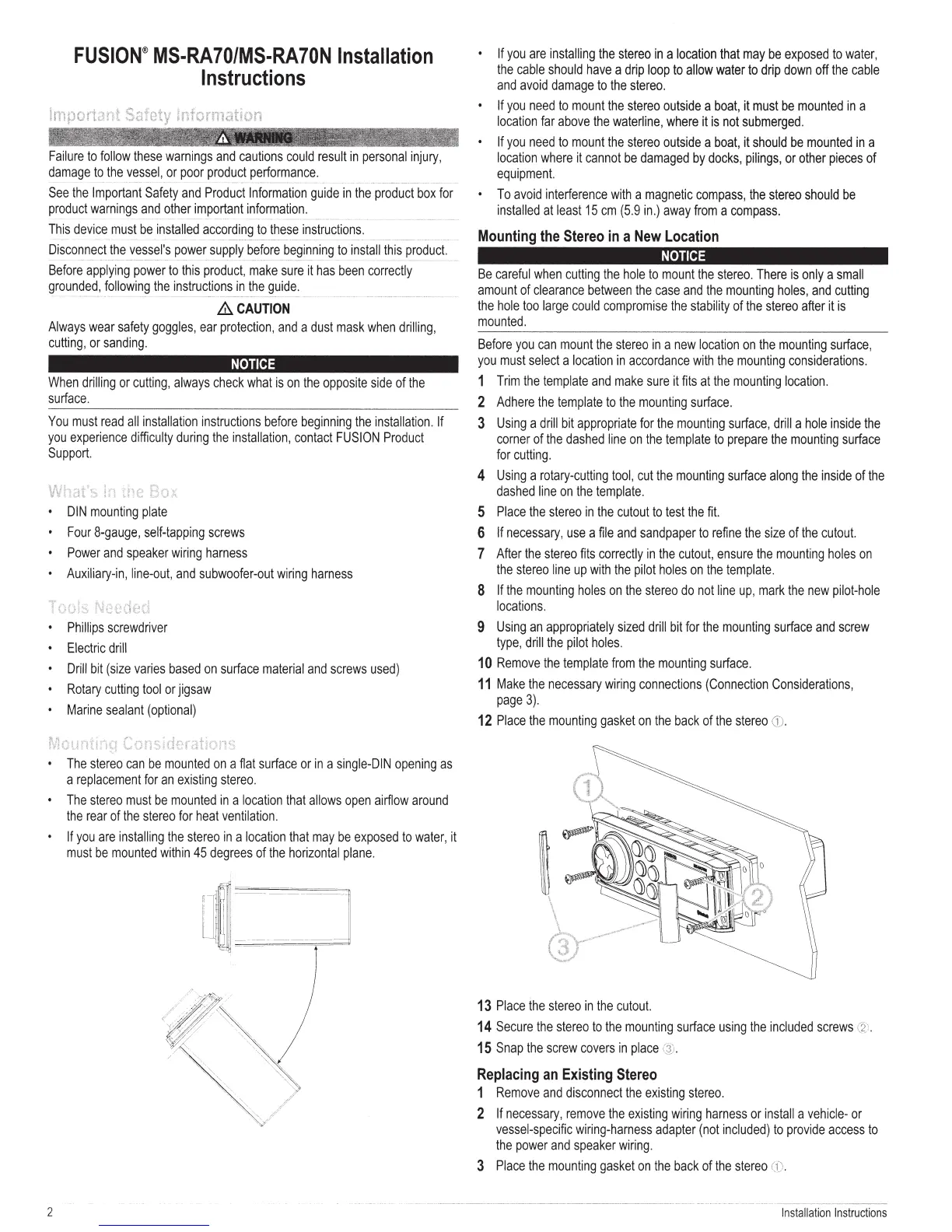

FUSION® MS-RA70/MS-RA70N Installation
Instructions
Failure to follow these warnings and cautions could result in personal injury,
damage to the vessel, or poor product performance .
--- ---- ---- " ' " """""' "' " """' "'' "" . -----·------------ ·· . ..... ................ , . ___ _ __ _ ____ --- -
See the Important Safety and Product Information guide in the product box for
product warnings and other important information.
This device must be installed according to these instructions.
-------------- -- ---- -- - -- --· ·- --- ---------------- ···--·· --~--- ---------- ----
Disconnect the vessel's power supply before beginning to install this product.
Before applying power to this product, make sure it has been correctly
grounded , following the instructions in the guide .
·· - -- ------------- --- - ·· ·"" •'• •'•' •" ·- --- -·- -- --- -- -- - -- ---------.. ... ... ... . " ""'"' .. ... .. ..... _ __ __ _ ----- --- -
.&.CAUTION
Always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the
surface.
You must read all installation instructions before beginning the i nstallation . If
you experience difficulty during the installation, contact FUSION Product
Support.
: ~ . : ;: l . :. \ n ~ ! !1 ;:
DIN mounting plate
• Four 8-gauge, self-tapping screws
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harness
: :· : }: = ~
• Phillips screwdriver
• Electric drill
• Drill bit (size varies based on surface material and screws used)
• Rotary cutting tool or jigsaw
Marine sealant (optional)
!:: : :. r: ~. ); ._. ~ ;
L'lt!:~ ~~ ~:~
• The stereo can be mounted on a flat surface or in a single-DIN opening as
a replacement for an existing stereo .
The stereo must be mounted in a location that allows open airflow around
the rear of the stereo for heat ventilation.
• If you are installing the stereo in a location that may be exposed to wate r, it
must be mounted within 45 degrees of the horizontal plane.
2
, r ~ ~~~ ~ ~ J
l ~ ~ ... .. ~
• If you are installing the stereo in a location that may be exposed to water ,
the cable should have a drip loop to allow water to drip down off the cable
and avoid damage to the stereo .
•
If you need to mount the stereo outside a boat, it must be mounted in a
location far above the waterline, where it is not submerged.
• If you need to mount the stereo outside a boat, it should be mounted in a
location where it cannot be damaged by docks, pilings, or other pieces of
equipment.
• To avoid interference with a magnetic compass, the stereo should be
installed at l east 15 em (5.9 in.) away from a compass.
Mounting the Stereo in a New Location
NOTICE
Be careful when cutting the hole to mount the stereo. There is only a small
amount of clearance between the case and the mounting holes, and cutting
the hole too large could compromise the stability of the stereo after it is
mounted.
Before you can mount the stereo in a new l ocation on the mounting surface,
you must select a location in accordance with the mounting considerations.
1 Trim the template and make sure it fits at the mounting location.
2 Adhere the template to the mounting surface.
3 Using a drill bit appropr i ate for the mounting surface, drill a hole inside the
corner of the dashed line on the template to prepare the mount i ng surface
for cutting.
4 Using a rotary-cutting tool, cut the mounting surface along the inside of the
dashed line on the template.
5 Place the stereo in the cutout to test the fit.
6 If necessary, use a file and sandpaper to refine the size of the cutout.
7 After the stereo fits correctly in the cutout, ensure the mounting holes on
the stereo line up with the pilot holes on the template.
8 If the moun ti ng holes on the stereo do not line up, mark the new pilot-hole
locations.
9 Using an appropriately sized drill bit for the mounting surface and screw
type, drill the pilot holes .
10 Remove the t emplat e from the moun t ing surface.
11 Make the necessary wiring connections (Connection Cons i dera t ions,
page 3).
12 Place the mounting gasket on the bac k of the stereo (1) .
~ \
(~ft ·· · ··
13 Place the st ereo in the cutout.
14 Secure the stereo to the mounting surface using the included screws
15 Snap the screw covers in place t ~) .
Replacing an Existing Stereo
1 Remove and disconnect the existing stereo.
2 If necessary, remove the existing wiring harness or install a veh i cl e· or
vessel-specific wiring-harness adap t er (not included) to provide access to
the power and speaker wiring.
3 Place the mounting gasket on the back of the stereo (1}
I ns tall at io n In s tru c tions
