Gaggia Brera Service Manual

Rev. 00 OCTOBER 2009 Page / 01
GAGGIA

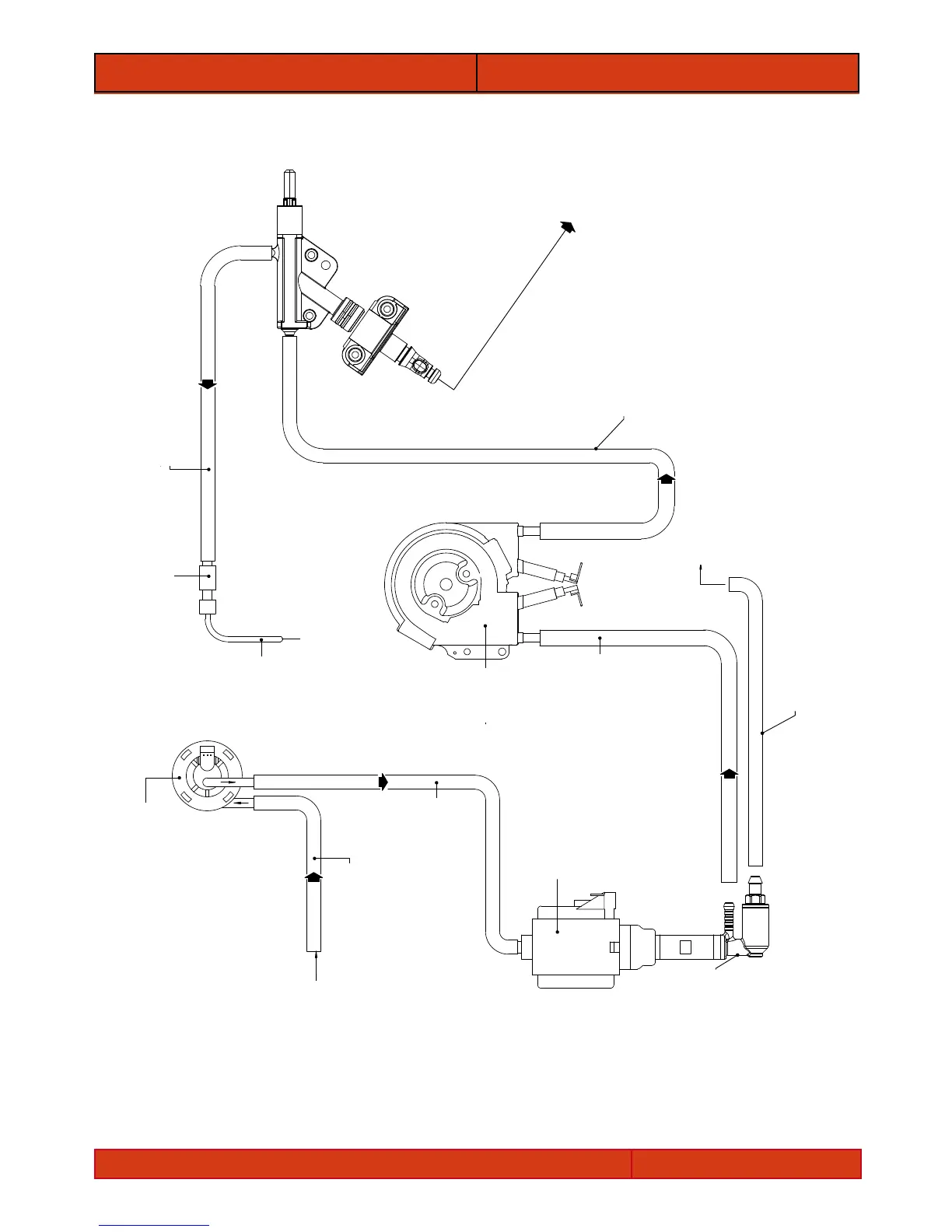

09 WATER CIRCUIT DIAGRAM
9.1. Water circuit diagram
Steam wand pipe tting Raccordo tubo vapore
Silicone tube - Tubo silicone 5x10 9972.176 (130mm)
Silicone tube - Tubo silicone 5x10 9912.122 (290mm)
Silicone tube - Tubo silicone 5x10 9972.176 (130mm)
Linen-faced silicone tube
Tubo silicone retinato
5x8,9 11005599 (190mm)
Safety valve
Valvola di sicurezza
11010166
Linen-faced silicone tube Tubo silicone retinato 5x8,9 11003557 (260mm)
Water drain Scarico acqua
To the Dispensing spout
All'erogatore caffè
Linen-faced silicone tube Tubo silicone retinato 5x8,9 11004050 (165mm)
Water tank Water tank
Flow meter Turbine
Steam wand Tubo vapore
Boiler
Caldaia
1300W
Steam/Water dispensing Erogazione vapore/acqua
Pump Pompa
01

Gaggia Brera Specifications

General

Type	Espresso
Dimensions (WxDxH)	256 x 447 x 315 mm
Product type	Espresso machine
Water tank capacity	1.2 L
Coffee beans capacity	250 g
Maximum operating pressure	15 bar
Product color	Black
Indication light	Yes
AC input voltage	230 V
AC input frequency	50 Hz

Weight and Dimensions

Weight	8500 g
