Viewing Pages
You can view a log of depth readings (page 6) or water temperature readings
(page 7) on the full screen. You can also view both logs simultaneously on
a split screen log (page 7). The graph scrolls to the left as information is
received.
When you open a log page, the last log page you selected is shown (depth,
water temperature, or both). You can then select a different log page.

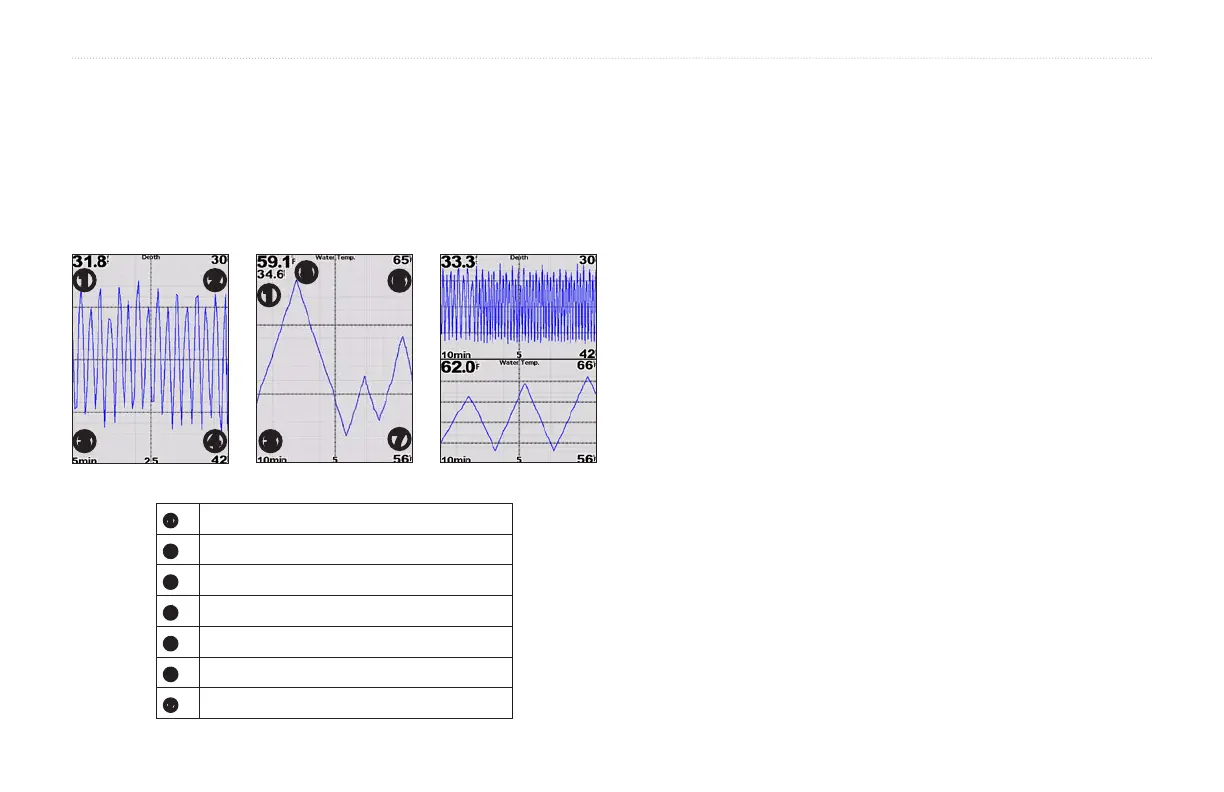

➊ ➋
➌ ➍
➊
➎
➏
➌
➐
➊
Depth at your present location.
➋
Depth value at top of log.
➌
Log duration.
➍
Depth value at bottom of log.
➎
Water temperature at your present location.
➏
Temperature value at top of log.
➐
Temperature value at bottom of log.
The Depth Log page displays a graphic log of depth readings over time.
1. From any page, select MENU > Pages > Log.
2. If the temperature log or the split screen log is shown, select MENU >
Change Log > Depth.
Before you can set the depth log duration, you must open the depth log or
the split screen log.
You can change the time scale (duration) on the depth log. Increasing the
duration allows you to view depth variations over a longer period of time.
Decreasing the duration allows you to view more detail over a shorter period
of time.
The duration appears in the lower-left corner of the screen.
Before you can set the depth-range scale, you must open the depth log or the
split screen log.
You can change the depth-range scale on the depth log. Increasing the depth-
range scale allows you to view more variations in depth. Decreasing the
depth-range scale allows you to view more detail in the variation. When the
scale is set to Auto, the depth range automatically adjusts to display all the
log values within the selected duration.
1. Select MENU > Depth Log Options > Scale.
2. Select a depth-range scale.
