Installation
Installing the Display
Display Installation (Surface Mount)
The Fishfi nder 160 can be mounted to a fl at surface using the supplied
Surface Mounting Bracket.
Surface Mounting the Display:
1. Position the Surface Mount in the desired location. Leave approximately
2'’ behind the unit for cable clearance.
2. Mark the location of the four mounting holes with a pencil.
3. Drill pilot holes for the mounting fasteners (not included in kit).
4. Secure the Surface Mount, using the mounting fasteners.
5. Slip the unit into the surface mount bracket.
6. Tighten the knobs to secure the unit to the bracket.
The Surface Mount Bracket is designed to be secured using a fl at head screw.
If you use a screw with a countersunk head you risk damaging the Surface
Mount Bracket.

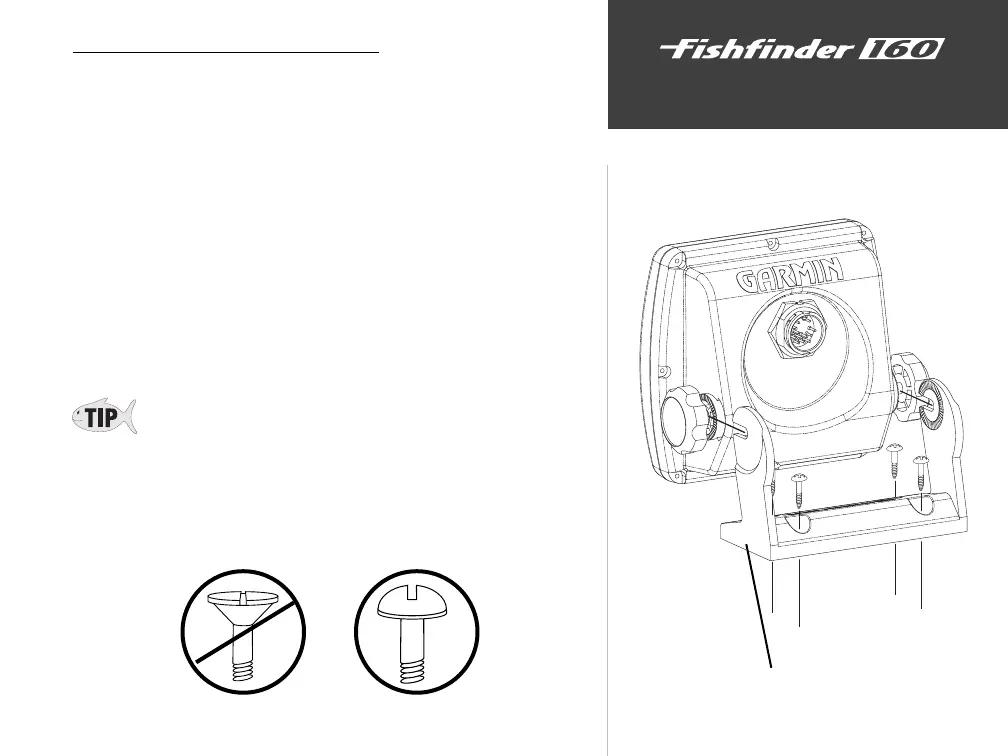

Surface Mount Bracket
OK
