Item Description Important Considerations
Ç
Pump power cable The pump can be connected to a 12–24 Vdc power source. To extend this cable, use the correct wire gauge
(page 13).
È
Alarm See page 11 for alarm-wiring information.
É
Shadow Drive See page 12 for Shadow Drive wiring information.

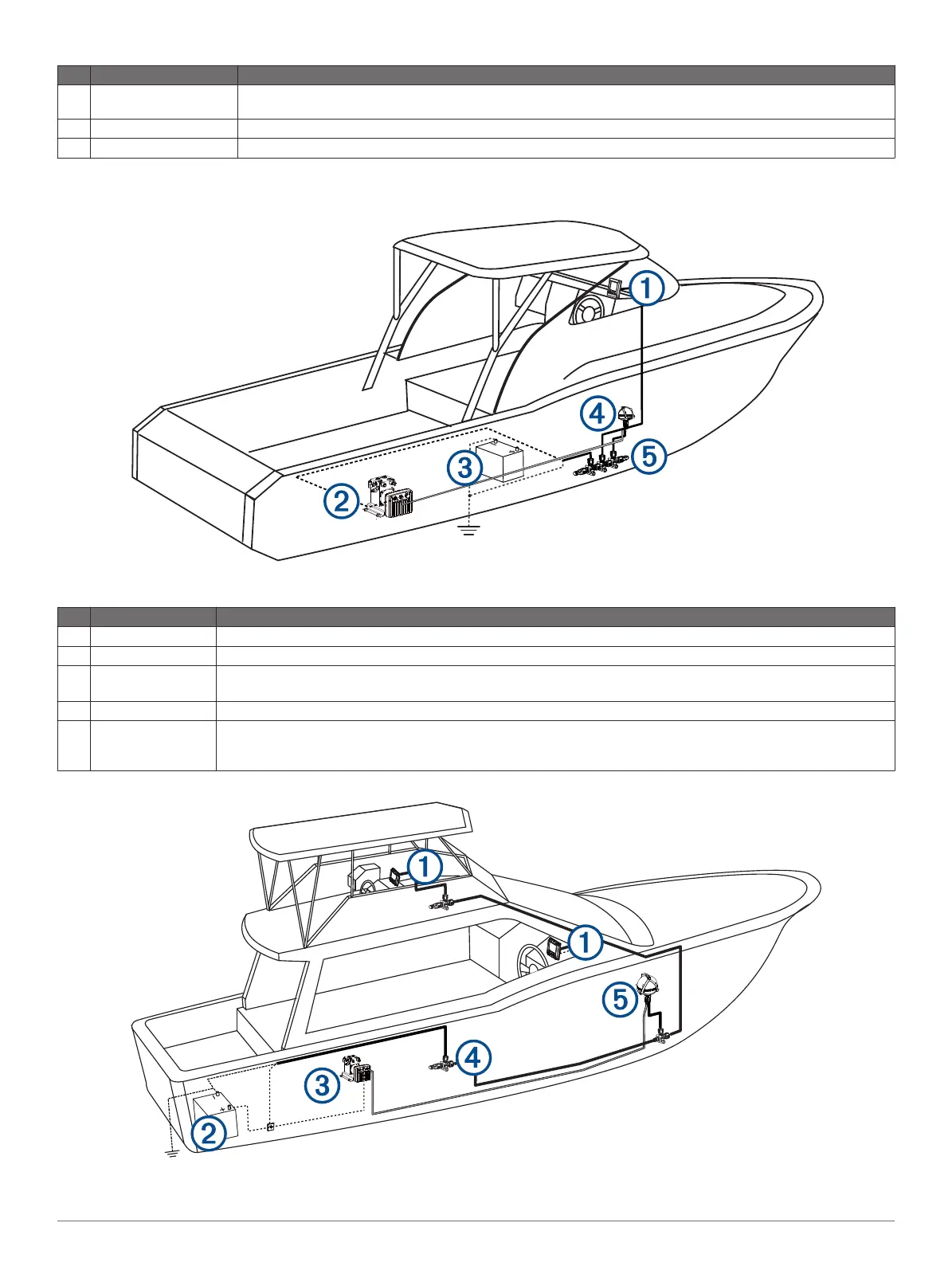

Component Layout
Single-Helm Layout
NOTE: This diagram is for planning purposes only. Specific connection diagrams are included in the detailed installation instructions
for each component. Hydraulic connections are not shown in this diagram.
Item Description Important Considerations
À
Helm control
Á
Pump
Â
12–24 Vdc battery The pump can be connected to a 12–24 Vdc power source.
The NMEA 2000 power cable must be connected to a 9–16 Vdc power source.
Ã
CCU The CCU must be installed in the front half of the boat, no higher than 10 ft. (3 m) above the waterline.
Ä
NMEA 2000 Network The helm control and the CCU must be connected to a NMEA 2000 network using the included T-connectors (page 2).
If there is not an existing NMEA 2000 network on your boat, you can build one using the supplied cables and
connectors (page 12).
Dual-Helm Layout Guidelines
NOTE: This diagram is for planning purposes only. Specific connection diagrams are included in the detailed installation instructions
for each component. Hydraulic connections are not shown in this diagram.
