2-1
CHAPTER 2
GETTING STARTED
2.1 FRONT PANEL

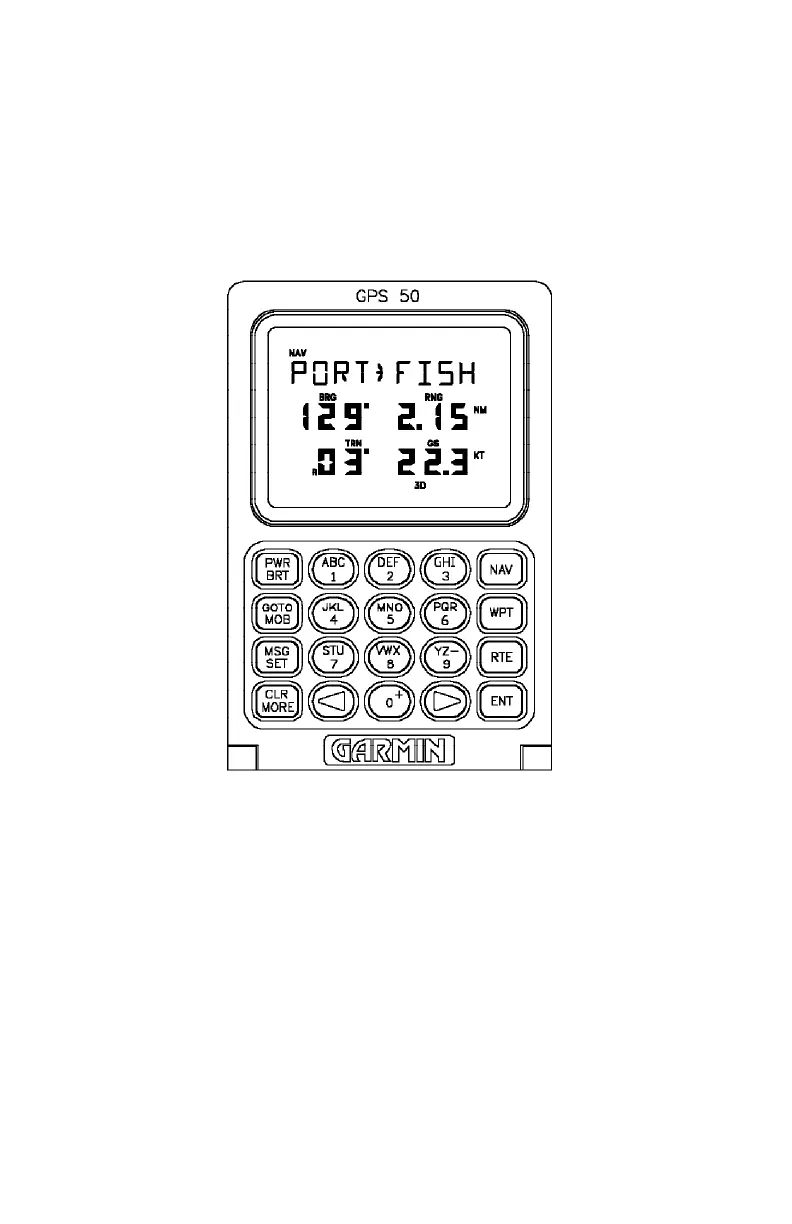

The front panel consists of a 20-key keypad and a LCD display which
includes three lines of information and various banners. Both the display and
keypad are illuminated for operating in darkness.
2.2 BANNERS
Information displayed on the LCD is commonly referred to as a “page”. A
page consists of alphanumeric information and banners. Banners, illustrated
below, are used to indicate the type of page, navigation units, and data
displayed (see Appendix B). They also indicate navigation fix type, satellite
tracking, and provide user prompting.
