Garmin PANOPTIX LIVESCOPE LVS32 User Manual

Power Cable Extensions

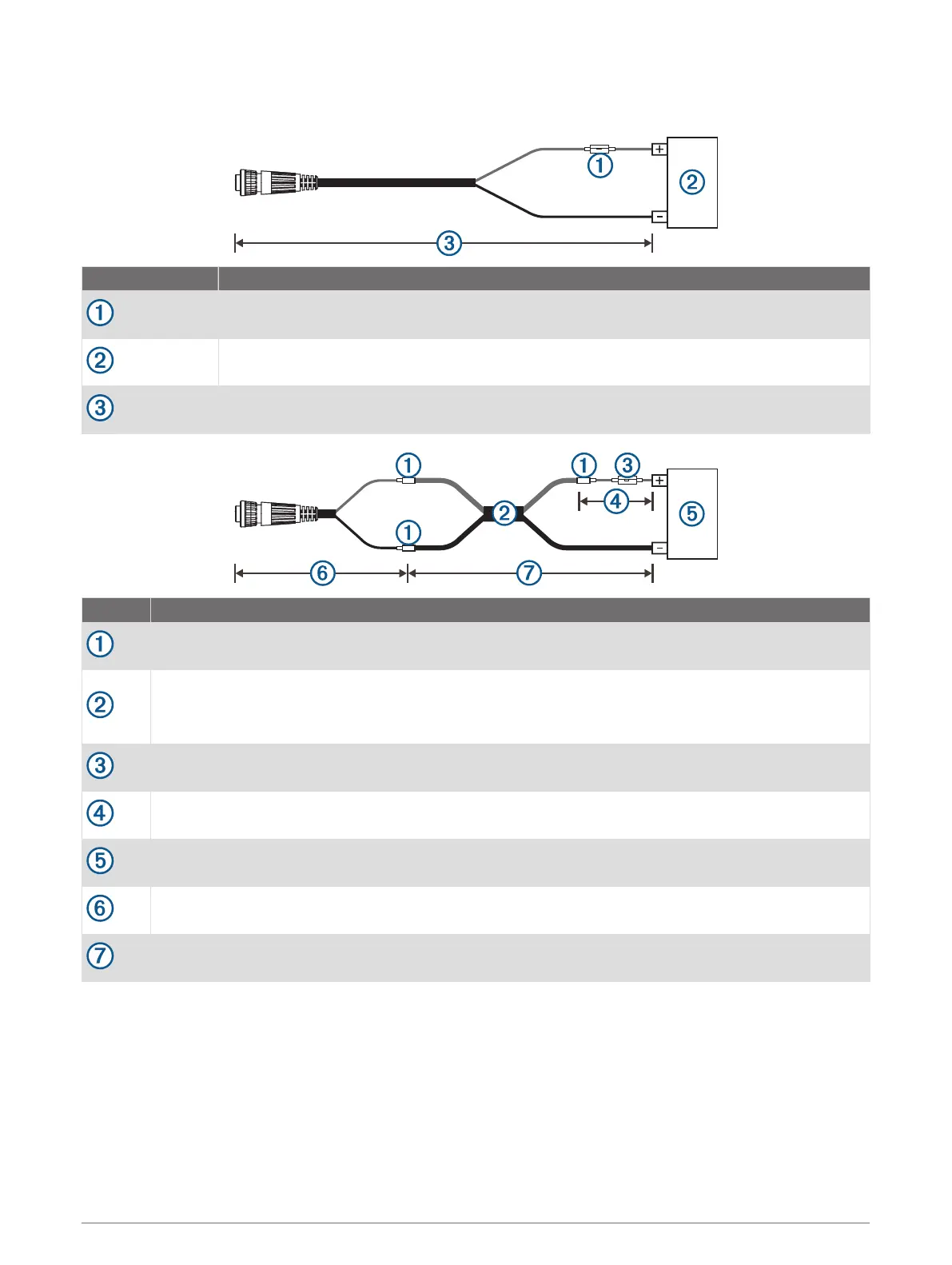

If necessary, you can extend the power cable using the appropriate wire gauge for the length of the extension.
Item Description
Fuse
Battery
9 ft. (2.7 m) no extension
Item Description
Splice
• 10 AWG (5.26 mm²) extension wire, up to 4.6 m (15 ft.)
• 8 AWG (8.36 mm²) extension wire, up to 7 m (23 ft.)
• 6 AWG (13.29 mm²) extension wire, up to 11 m (36 ft.)
Fuse
8 in. (20.3 cm)
Battery
8 in. (20.3 cm)
Maximum extension 36 ft. (11 m)
11

Garmin PANOPTIX LIVESCOPE LVS32 Specifications

General

Frequency	530 - 1, 100 kHz
Power	500 W
Beam Width	20° x 135°
Cable Length	20 ft (6 m)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Voltage Range	10-32 V
Operating Temperature	0°C to 40°C
Compatible Units	GPSMAP
Maximum Depth	200 ft
