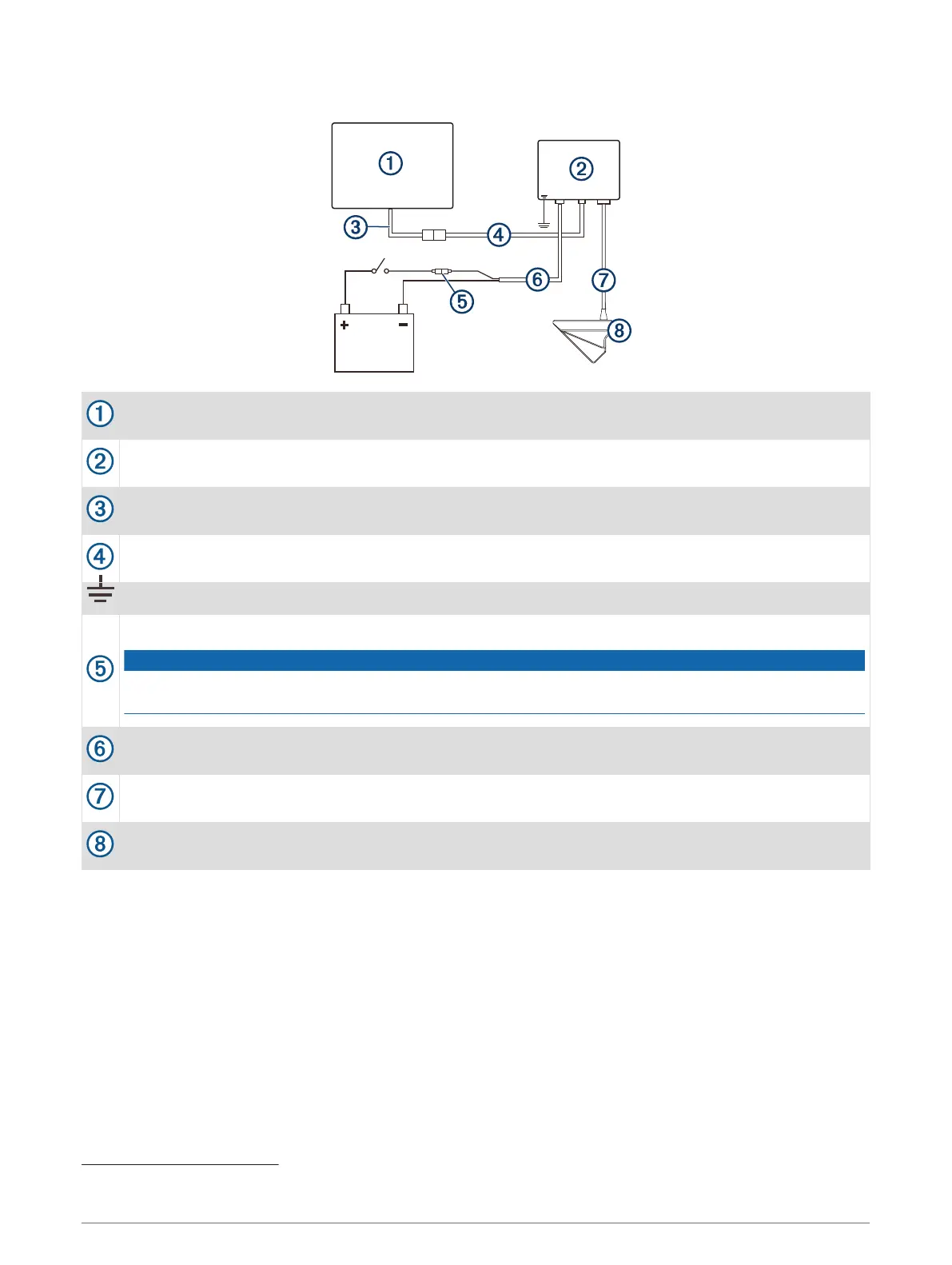

Installation Diagram
Compatible Garmin chartplotter
1
Panoptix LiveScope GLS 10 sonar module
Garmin Marine Network adapter cable (Garmin part number 010-12531-01)
Garmin Marine Network cable, small connector to NETWORK port
Water ground
7.5 A, fast-acting fuse
NOTICE
Do not remove the fuse. Removing the fuse may cause the device to malfunction and will void the
warranty.
Panoptix LiveScope GLS 10 power cable to POWER port
Transducer cable to XDCR port
Panoptix LiveScope LVS32 transducer
1
For chartplotter connections, refer to your chartplotter installation instructions.
10

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Garmin PANOPTIX LIVESCOPE LVS32 and is the answer not in the manual?

Garmin PANOPTIX LIVESCOPE LVS32 Specifications

General IconGeneral
Frequency530 - 1, 100 kHz
Power500 W
Beam Width20° x 135°
Cable Length20 ft (6 m)
Storage Temperature-4°F to 158°F (-20°C to 70°C)
Voltage Range10-32 V
Operating Temperature0°C to 40°C
Compatible UnitsGPSMAP
Maximum Depth200 ft
