Garmin PANOPTIX LIVESCOPE LVS32 User Manual

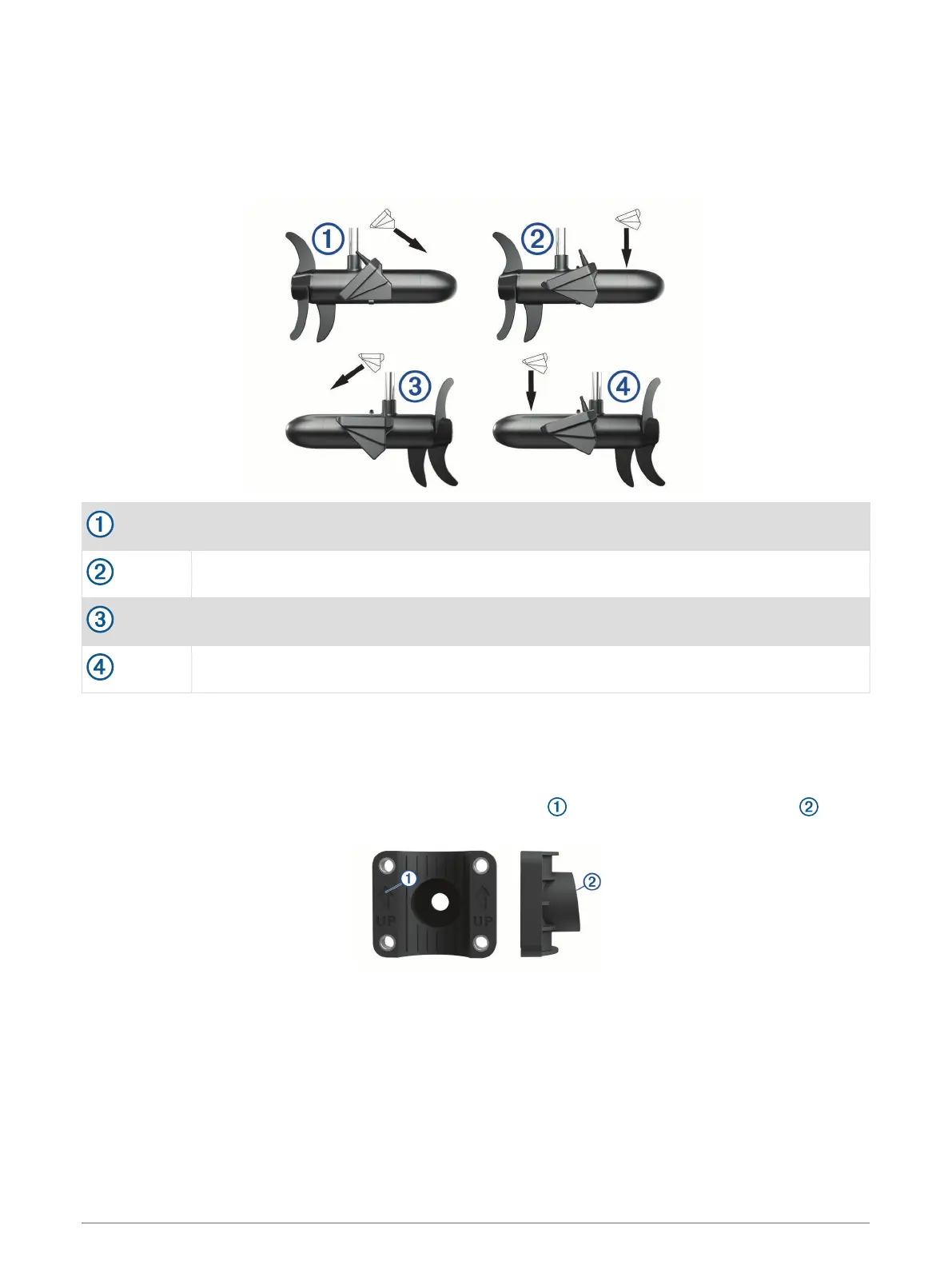

Trolling Motor Mount Orientation
The orientation depends on which side of the trolling motor you have mounted the transducer on, and your
desired field of view.
TIP: No tools are necessary to change the orientation from forward to down. Turn the mount one click to
change the orientation from forward to down.
Starboard side, forward view
Starboard side, downward view
Port side, forward view
Port side, downward view
Installing the Transducer on a Trolling Motor Shaft
Trolling Motor Shaft Bracket Orientation
The trolling motor shaft bracket features an 8-degree cant to reduce the effects of the trolling motor barrel
interference with the transducer beam. You must orient the arrow and the narrow end of the angle to the
top when you attach the bracket to the trolling motor shaft.
5

Garmin PANOPTIX LIVESCOPE LVS32 Specifications

General

Frequency	530 - 1, 100 kHz
Power	500 W
Beam Width	20° x 135°
Cable Length	20 ft (6 m)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Voltage Range	10-32 V
Operating Temperature	0°C to 40°C
Compatible Units	GPSMAP
Maximum Depth	200 ft
