OUTDOOR UNIT CONTROLS and COMPONENTS
PAGE 9
ENGLISH

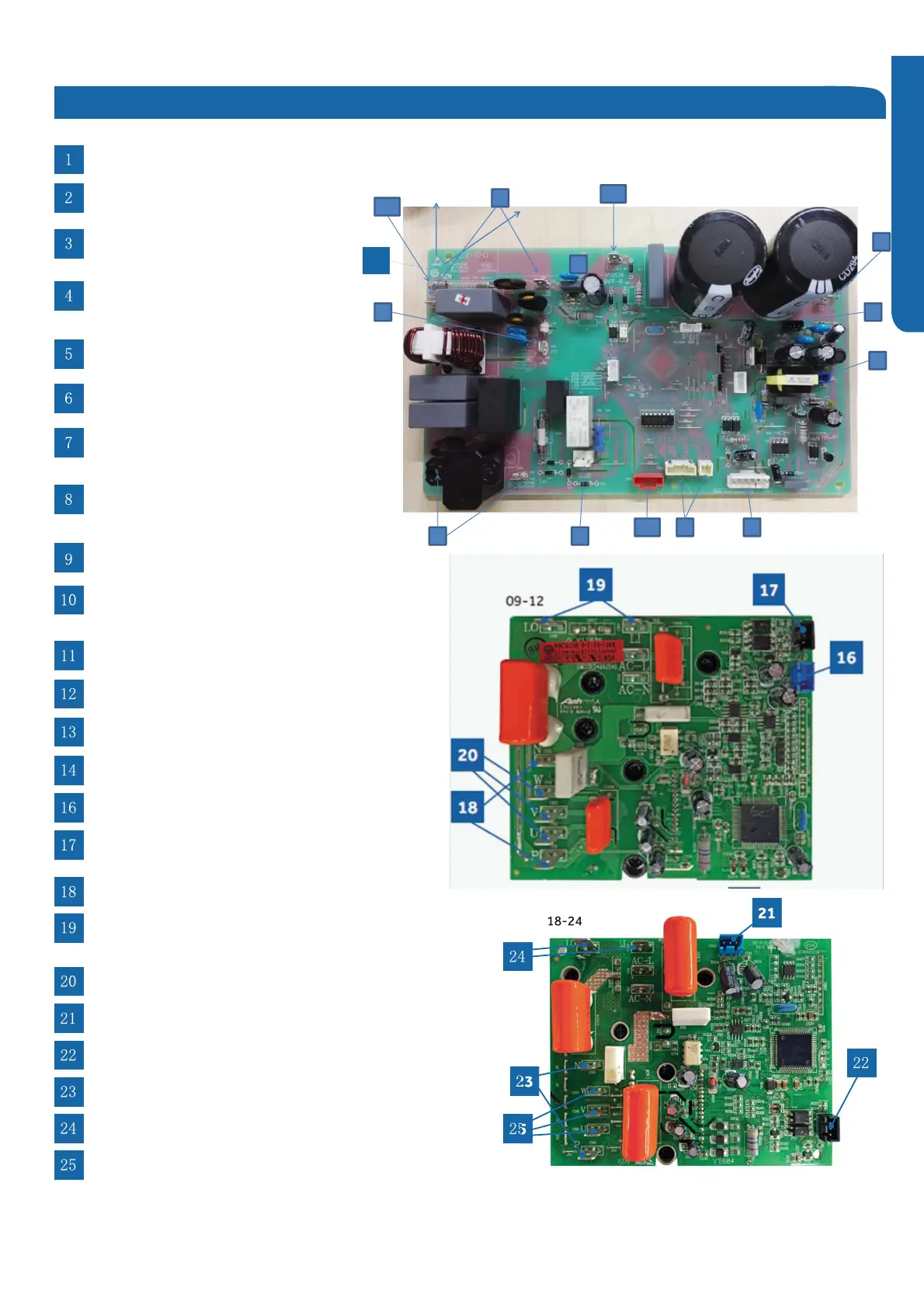

PCB
PCB (1)
CN3-Connector for ground
CN10 (09k and 12k), CN11 (18k and 24k) -
4-way valve connections
CN8 and CN9 (09k and 12k), CN9 and
CN10 (18k and 24k) - 230 VAC output from
the PCB to the IPM
18-24
CN23 (09k and 12k) and CN24 (18k and 24k) -
5-G-15 VDC communication connection
between the PCB and the IPM
CN1,CN2-Connector for power N and L
CN18 and CN20 (09k and 12k), CN17, CN21,
and CN47 (18k and 24k) - Connectors for
thermistors
CN22 (09k and 12k), CN23 (18k and 24k) -
5-G-15 VDC connections for power to the IPM
CN24 and CN26 (09k and 12k), CN25 and CN28
(18k and 24k) - 310+ VDC connection from the IPM
CN21 (09k and 12k), CN22 (18k and 24k) -
Connection for the fan motor
CN10-09k and 12k IPM:5-G-15 VDC power from the PCB
CN11 - Connector for the 5-G-15 VDC communication
signal between the PCB and the IPM
P(CN1), N(CN5)- 310+ VDC power to the PCB
LI (CN7), LO(CN6) - Power filter reactor connections
CN2,CN3,CN4-Connector for the
U, V, and W compressor wire connections
6
1211
7
RV1,RV2,RV3 ,RV4 Varistor
1
2
3
5
4 6
7
8
9
10
11
PCB(3)(Module PCB for 18-24K)
CN10 - 5-G-15 VDC power connection from the PCB
CN11 - 5-G-15 VDC communication connection with the PCB
P(CN8), N(CN9)- 310+ VDC power connection to the PCB
LI (CN3), LO(CN4) power filter reactor
CN5,CN6,CN7-Compressor U, V, and W wiring connections
12
14
CN4 (09k and 12k) and CN36 (18k and 24k) -
Communication connection between
the indoor and outdoor units
CN16 (09k and 12k), CN15 (18k and 24k) - EEV connections
FUSE 1 (25A, 250V) ; FUSE 2 (3.15A ,250V)
LED1 - Steady flash indicates normal operation
while intermittent flashes are error codes
