Fuse Link: The fuse link is in-line with the
compressor wiring and comes only as a complete
harness assembly (ONLY on 230 volt models). If the
fuse link opens, the compressor will be "dead".
Thermal Fuse: The thermal fuse is in-line with the
compressor wiring and comes only as a complete
harness assembly. On early production models, if
the thermal fuse opens the compressor will "hum"
and trip the overload protector.

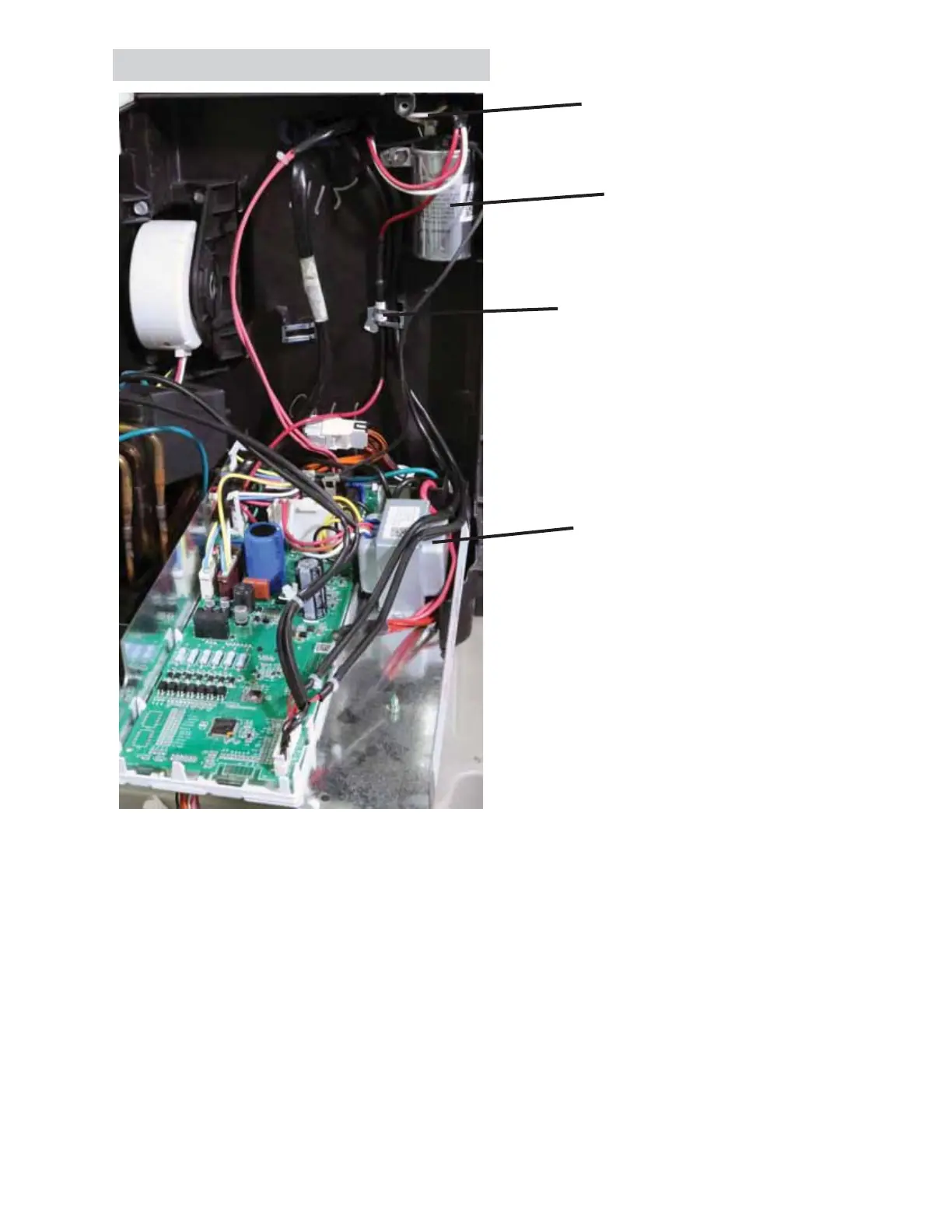

Electrical
Thermal fuse
Capacitor
Fuse link
(230/208 models only)
Low voltage transformer
Capacitor: The capacitor assists the compressor
starting and lowers the running current.
WARNING: Be sure to discharge the capacitor with
proper insulated pliers and electrically rated gloves
before attempting service.
For a compressor not starting, and the capacitor is
suspected, it is recommended to substitute a known
good capacitor of the same value in its place.
