– 48 –

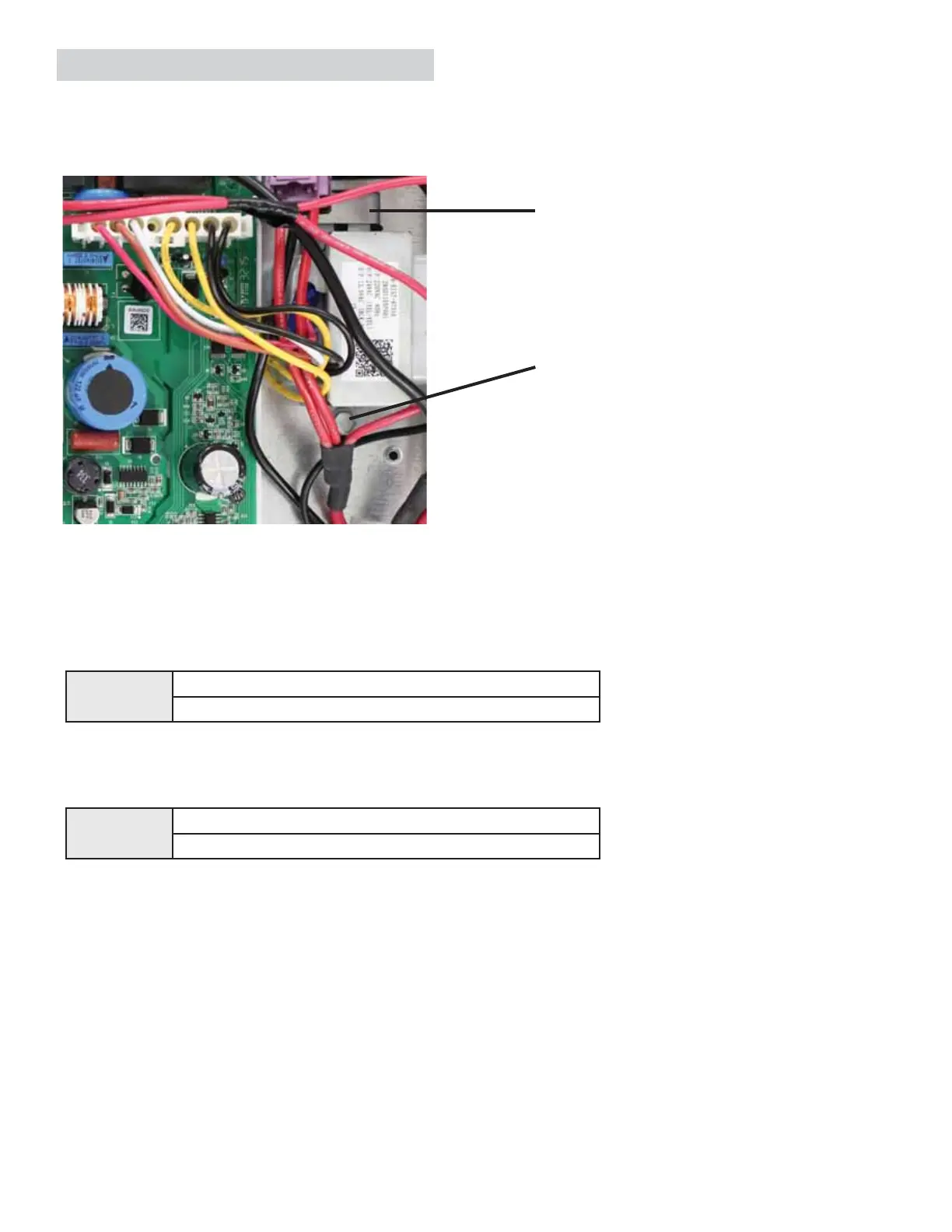

The low voltage transformer mounts to the control
console with one screw and tab. One harness
connector plugs into the main board.
The same transformer is used in all Zoneline models:
208/230 and 265 volt models.
The 208/230 volt models use WHITE to RED for line
input and BLACK to BLACK for 24 VAC output.
The 265 volt models use WHITE to BROWN for line
input and YELLOW to YELLOW for 24 VAC output.
LoZ Voltage Transformer
Tab
Screw
Resistance
WHITE to RED 125 ohms ± 15%
BLACK to BLACK .71 ohms - .85 ohms MAX
Resistance
WHITE to BROWN 154 ohms ± 15%
YELLOW to YELLOW 3.2 ohms - 3.85 ohms MAX
