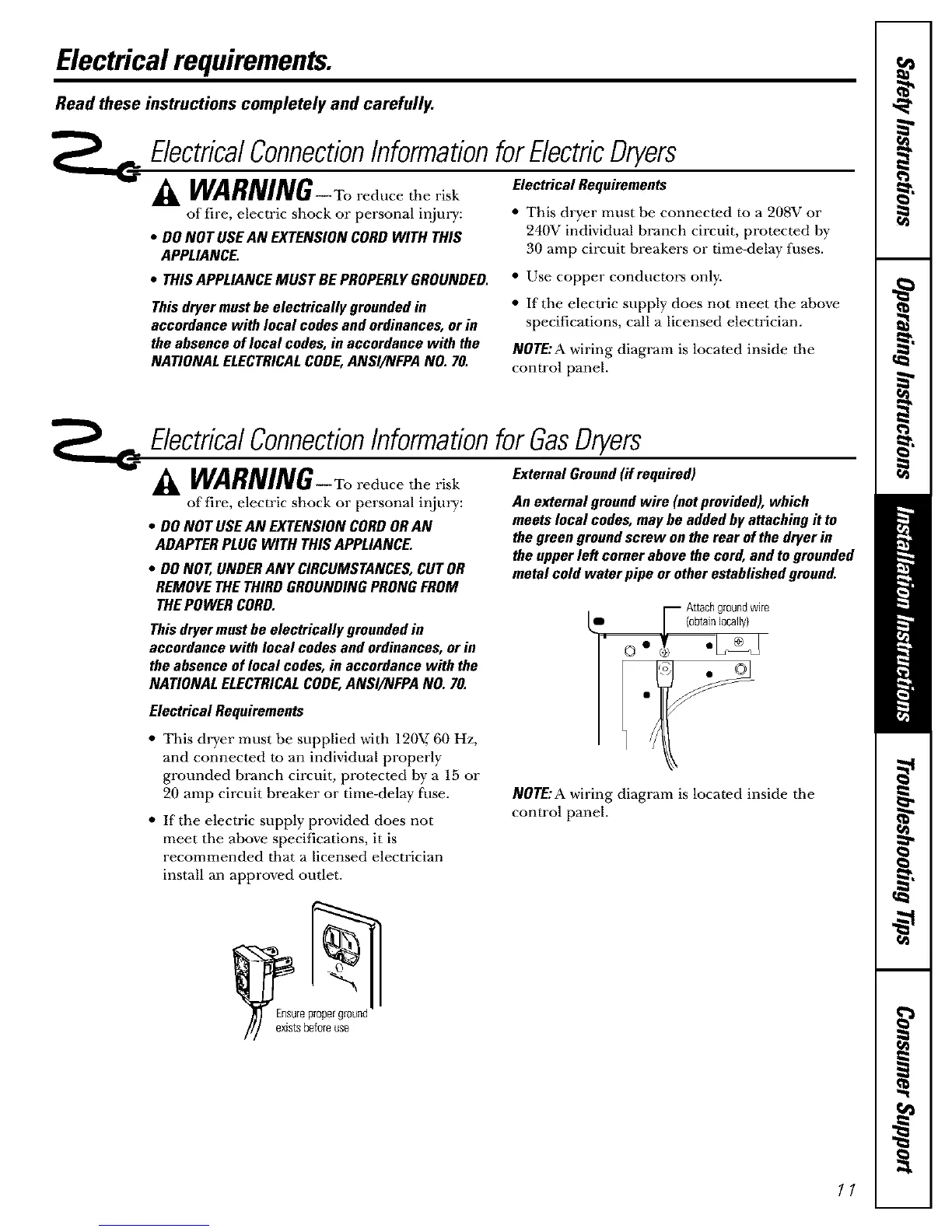

Electricalrequirements.
Read these instructions completely and carefully.
C
ElectricalConnectionInformationforElectricDryers
_I, WARNING-Toreducethorisk
of fire, electric shock or personal iqjury:
• DONOT USEAN EXTENSIONCORDWITH THIS
APPLIANCE.
ElectricalRequirements
• This dryer must be connected to a 208V or
240V individual branch circuit, protected by
30 amp circuit breakers or time<lelay fuses.
• THISAPPLIANCEMUSTBE PROPERLYGROUNDED. • Use copper conductors only.
Thisdryer mustbe electrically groundedin
accordancewith local codesand ordinances,orin
theabsenceof local codes,in accordancewith the
NATIONALELECTRICALCODE,ANSI/NFPANO. 70.
• If the electric supply does not meet the above
specifications, call a licensed electrician.
NOTE:A wiring diagram is located inside tile
control panel.
ElectricalConnectionInformationforGasDryers
_i WARNING-Toreduce the risk
of fire, electric shock or personal injury:
• DONOT USEAN EXTENSIONCORDORAN
ADAPTERPLUGWITH THISAPPLIANCE.
• DONOT,UNDERANY CIRCUMSTANCES,CUTOR
REMOVETHETHIRDGROUNDINGPRONGFROM
THEPOWERCORD.
Thisdryermustbe electrically groundedin
accordance with local codesandordinances,orin
theabsenceof local codes,in accordance with the
NATIONALELECTRICALCODE,ANSI/NFPANO. 70.
Electrical Requirements
• This dwer must be supplied with 120V, 60 Hz,
and connected m an individual properly
grounded branch circuit, protected by a 15 or
20 amp circuit breaker or time-delay filse.
• If the electric supply provided does not
meet the above specifications, it is
recommended that a licensed electrician
install an approved outlet.
ExternalGround(if required)
An external groundwire (notprovided),which
meetslocal codes,may be addedbyattaching# to
thegreen groundscrew on the rear of the dryerin
theupperleft comer abovethe cord,and to grounded
metalcold water pipe orotherestablishedground.
Attachgroundwire
o F {obtainlocally)
• o'_ "L_J
"C
NOTE:A wiring diagram is located inside tile
control panel.
11
