– 13 –

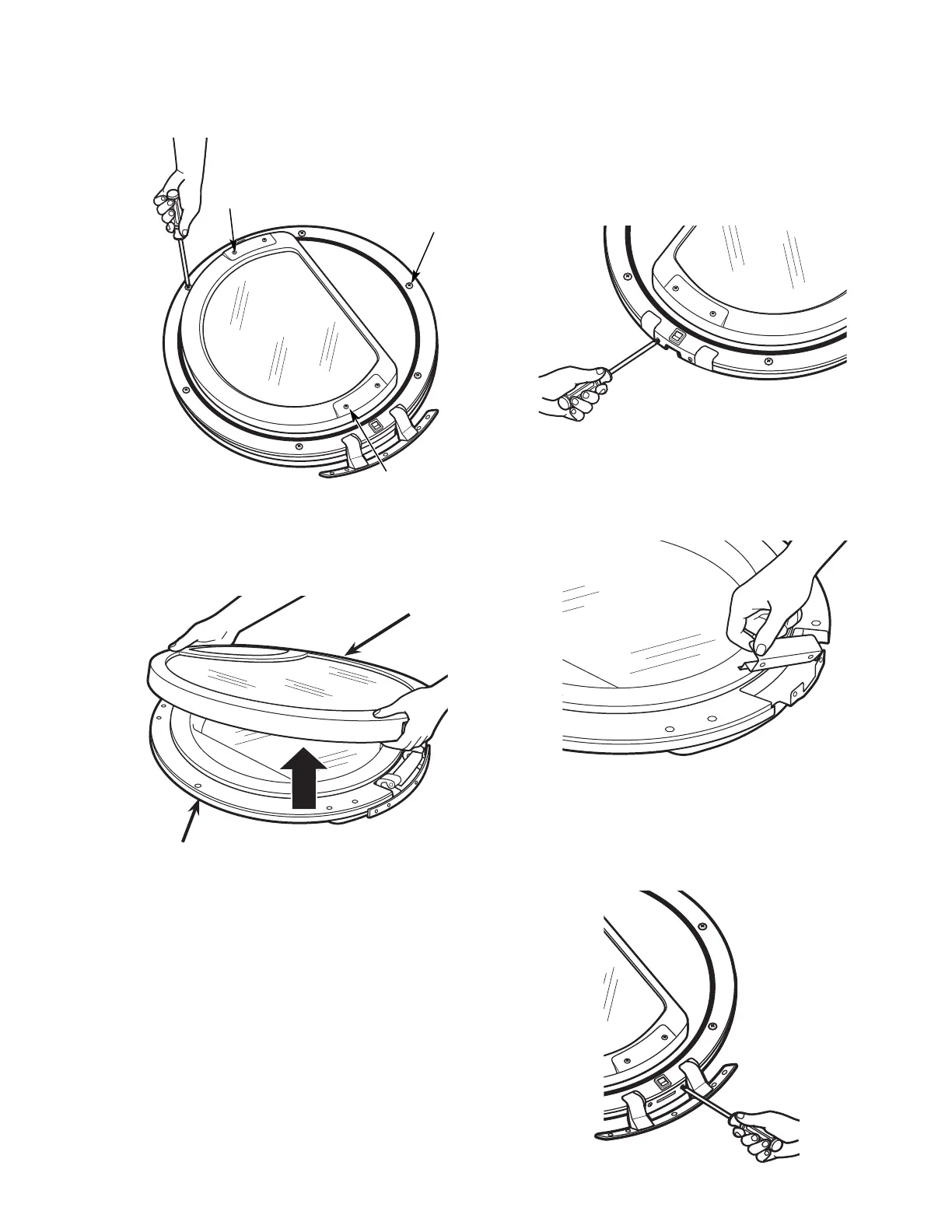

Remove the 6 large tapping screws (#10) located
around the perimeter of the door outlining the
gasket and the 4 machine screws (#8).
5.
6 #10 Large
Screws
2 #8 Machine
Screws
2 #8 Machine
Screws
IMPORTANT: Note the location of the hinge (left or
right) before removing.
Note: The hinge cover is located at the opposite side
of the hinge assembly.
Turn the door over. Remove the 2 (#8) tapping
screws and the hinge cover from the frame.
7.
Remove the window retainer located on the side
opposite the hinge assembly and underneath
the plastic cover.
8.
Turn the door over, separate the door cover
from the door frame and set the cover aside.
6.
Door Frame
Door Cover
Remove the 2 (#8) machine screws that attach
the hinge assembly to the side of the door
frame. Pull the hinge assembly out of the
opening in the door.
9.
(Continued Next Page)
