– 17 –
Place the pedestal against the bottom of the
washer or dryer. Ensure that the drawer front is
at the front of the washer or dryer.
Align the holes in the pedestal with the holes in
the bottom of the washer or dryer base.
Use a Phillips-head screwdriver to install the 4
(8-mm) bolts through the pedestal and into the
unit. DO NOT tighten the bolts.
Align the pedestal with the unit. Use an 8-mm
socket wrench to securely tighten the bolts.
7.
8.
9.
10.
Note: The support pads should be installed on the
dryer only. DO NOT INSTALL THE PADS ON THE
WASHER PEDESTAL.
Install a support pad at each top corner of the
pedestal. Ensure both protrusions on each pad
are inserted in the holes on top of the pedestal.
6.
(Continued Next Page)

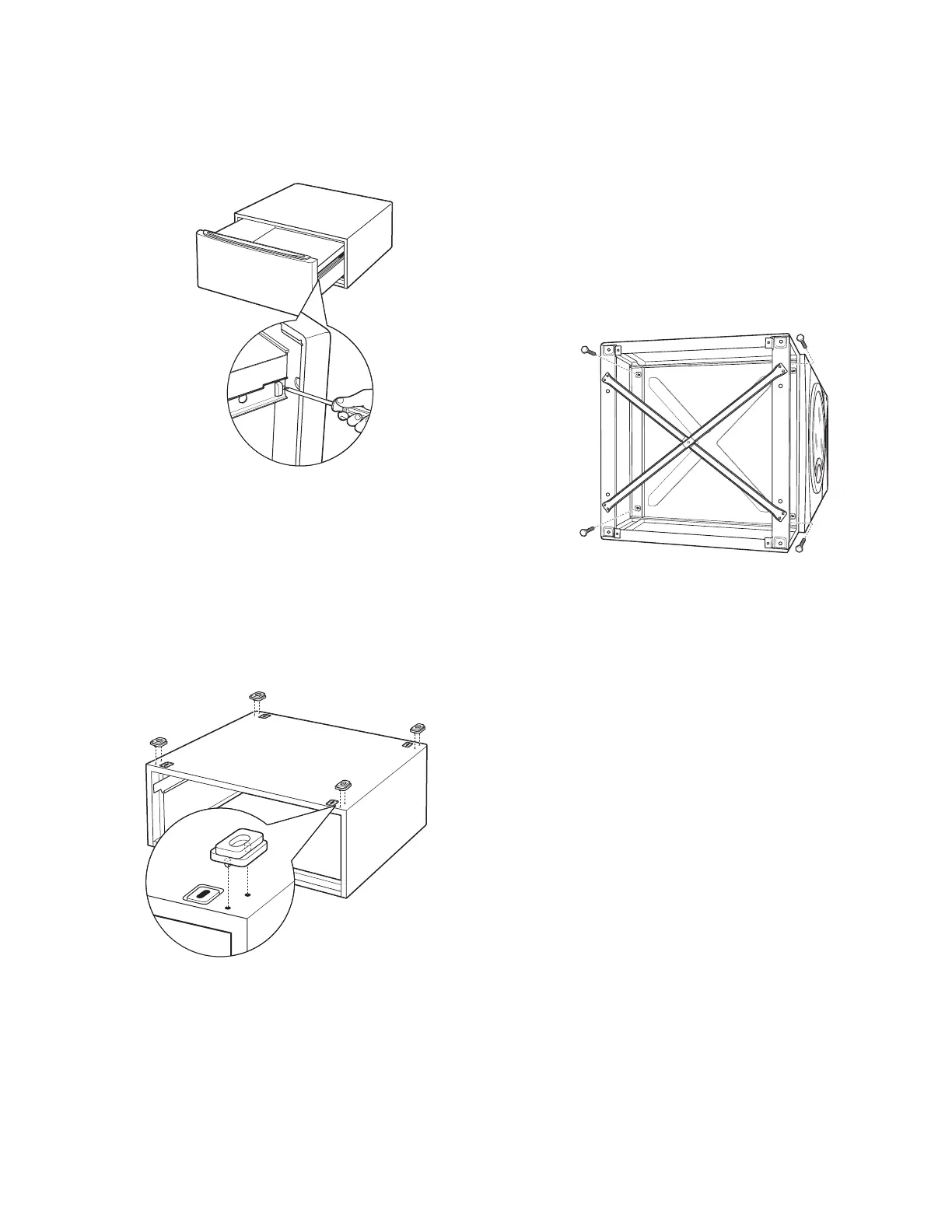

Pull the drawer out to its stop position.
Remove the screws from the drawer slides.
Slide the drawer out of the base and set it aside.
3.
4.
5.
To Next Page
