– 33 –

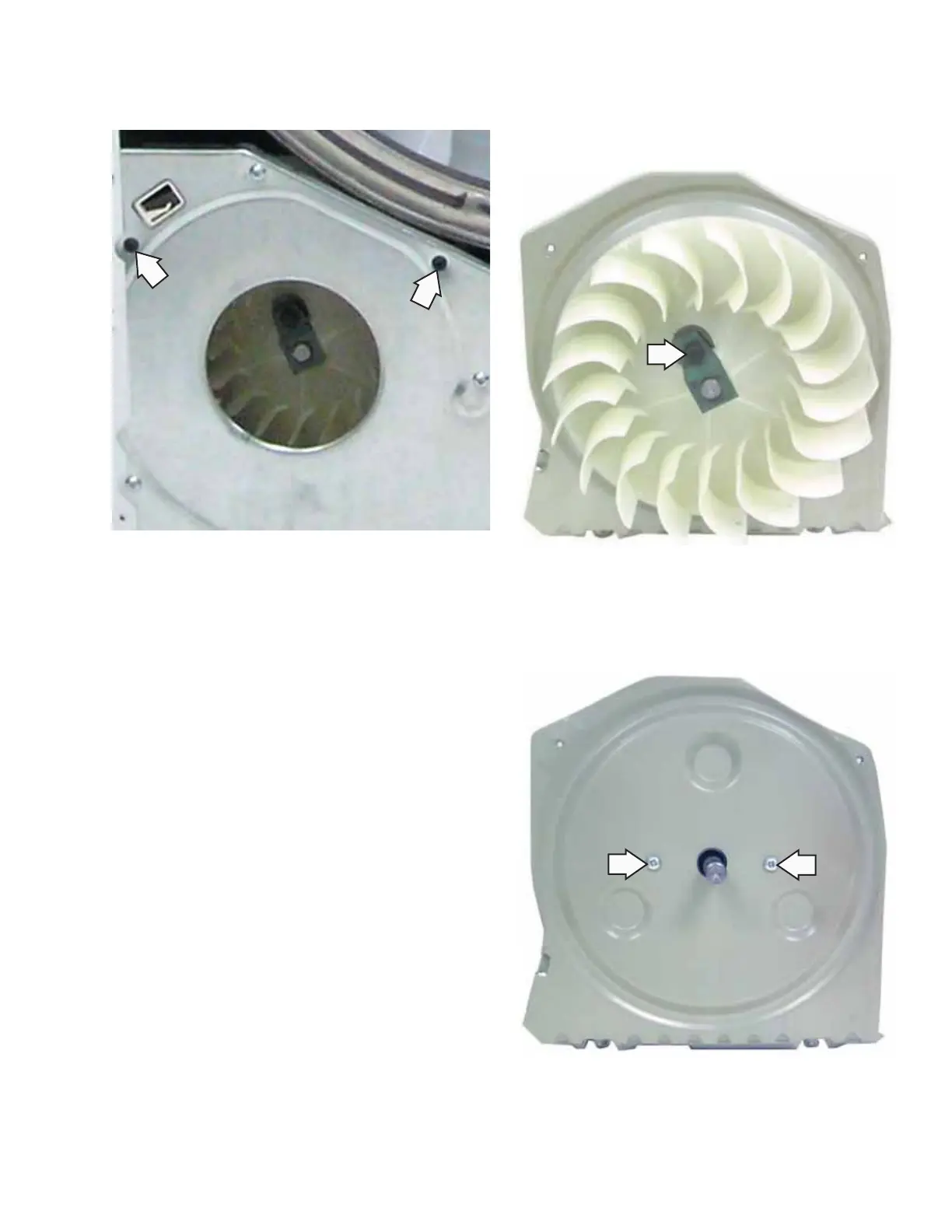

Remove the 2 Phillips-head screws that hold
the top of the motor base plate to the blower
housing.
10.
Raise the rear of the motor bracket to clear the
tab protruding from the bottom of the base
plate. Pull rearward and remove the motor and
blower wheel assembly from the base plate.
Note: When installing the motor and blower wheel
assembly, ensure that the 2 front tabs and the 2
rear tabs on the motor bracket are inserted into
slots provided in the bottom of the base plate.
11.
To replace the blower wheel:
Loosen the
3
/
8
-in. hex-head screw that secures the
blower wheel clamp to the motor shaft. Pull the
blower wheel off the shaft.
To replace the motor:
Remove the 2 Phillips-head screws that hold the
front motor strap to the motor base plate.
1.
(Continued Next Page)
