GE Digital Energy GT Series User Manual

OPM_GTU_TWR_1K0_3K0_XUS_V015
10
DE GT Series: User manual rev date 8-11-04
Digital Energy GT Serie
s
g
8 13 12 11 10
5 364
1
9
7
2

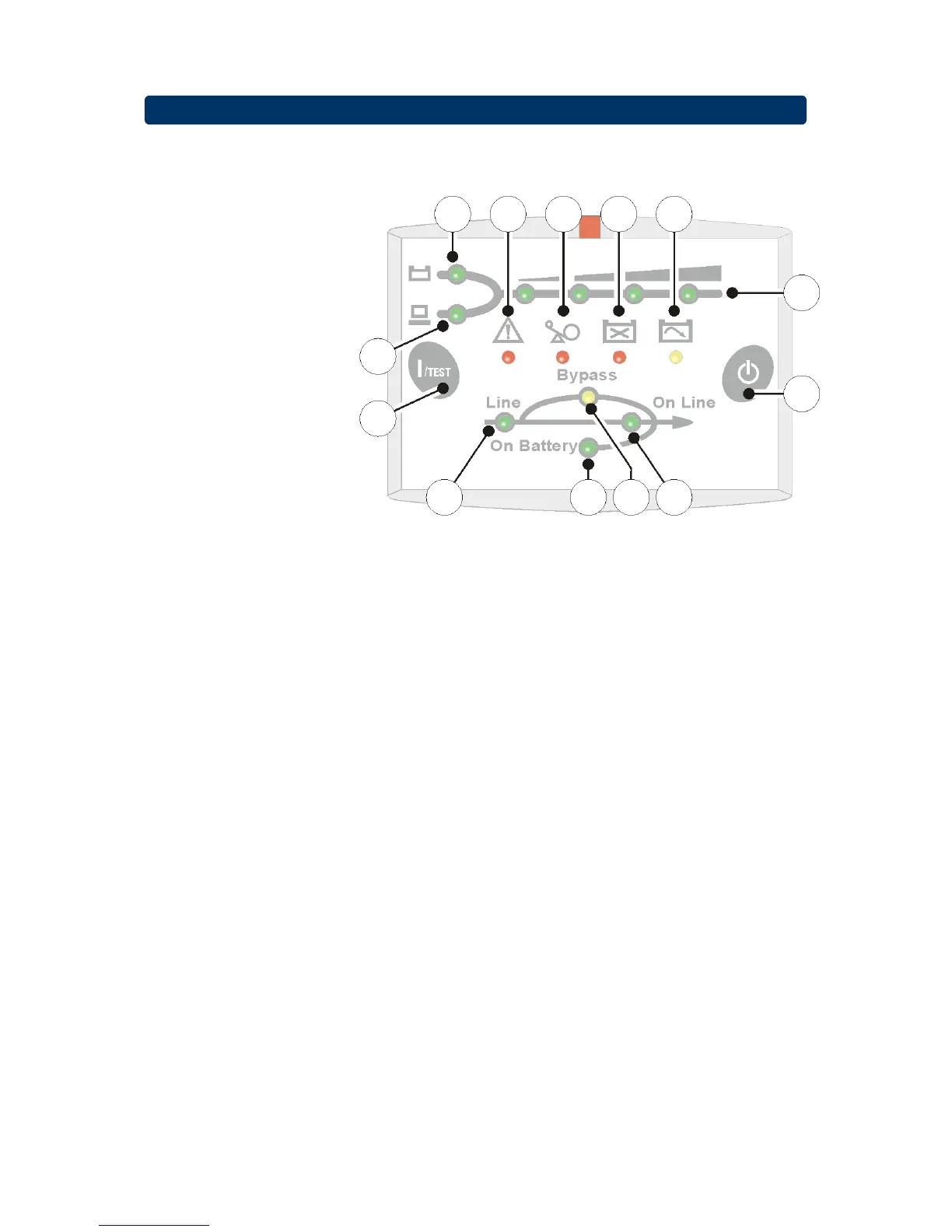

3.1 Operation Panel
1
Switch ‘I/TEST’
- Switches on the UPS
- In ‘ON-LINE’ mode it starts the battery test
- In ‘ON BATTERY’ mode it mutes the buzzer
2
Off switch
Switches off the UPS
3
LED ‘Bypass’
The UPS is in ‘BYPASS’ mode: the incoming utility power is
channeled directly to the load. See also 3.3.5
4
LED ‘Line’
Indicates the condition of the utility input power.
Continuously lighting up: the input power is OK,
Flashing
: input voltage is too low, too high, or out of frequency,
Off: blackout or ultra high voltage (>150Vac)
5
LED ‘On Line’
The UPS is operating in the (normal) ‘ON LINE’ mode
6
LED ‘On Battery’
The UPS is operating in ‘ON BATTERY’ (back-up) mode: utility
power fails, and the internal batteries supply the required
power until either they are depleted or utility power returns.
7
Level bar
- In ‘ON BATTERY’ mode: shows current battery capacity
- In ‘ON LINE’ mode: showing current load level
8
Battery LED
Level bar shows current battery capacity
9
Load LED
Level bar shows current load level
10
Battery low LED
The battery is almost depleted
11
Replace battery LED
After a battery test the LED shows that the batteries are weak.
Battery replacement is recommended
12
Overload LED
The load exceeds the nominal UPS rating. After a short period
of time the UPS will transfer to ‘BYPASS’ mode
13
Fault LED
The UPS is faulty
3 - Operation
Fig. 3.1 Operating pane
l
