2.1 Package contents
The packing box contains a Digital Energy GT Series-UL UPS, an RS232 data cable, a CD
ROM and this manual. Carefully inspect the packing box and its contents. If any damage is
visible please immediately notify the carrier and/or dealer.
2.2 Location
Please refer to section 1.3 of ‘IMPORTANT SAFETY INSTRUCTIONS’
2.3 Rear panel
1
Input
AC utility supply power to the UPS
2
Input breaker
Protects the UPS from damage
caused by high input currents
7
Communication interface
RS232/dry contact. Allows communi-
cation between computer and UPS.
See chapter 4 for more detailed
information.
3
Output receptacles
To connect critical load to the UPS
4
Output circuit breaker
Protects the UPS from damage
caused by output overload
8 TVSS - Transient Voltage Surge
Suppressor (RJ-45/RJ-11): To
prevent damage caused by surges,
noise and spikes traveling over the
telephone or network line. (Optional)
5
DC connector
To connect external battery pack for
extended runtime
6 Fan
Electronically controlled cooling fan.
Make sure ventilation air can move
freely around and trough the UPS
9
SNMP Slot
An (optional) SNMP adapter can be
plugged into this port for managing the
UPS via the network. See chapter 4
for more detailed information.
2 - Installation

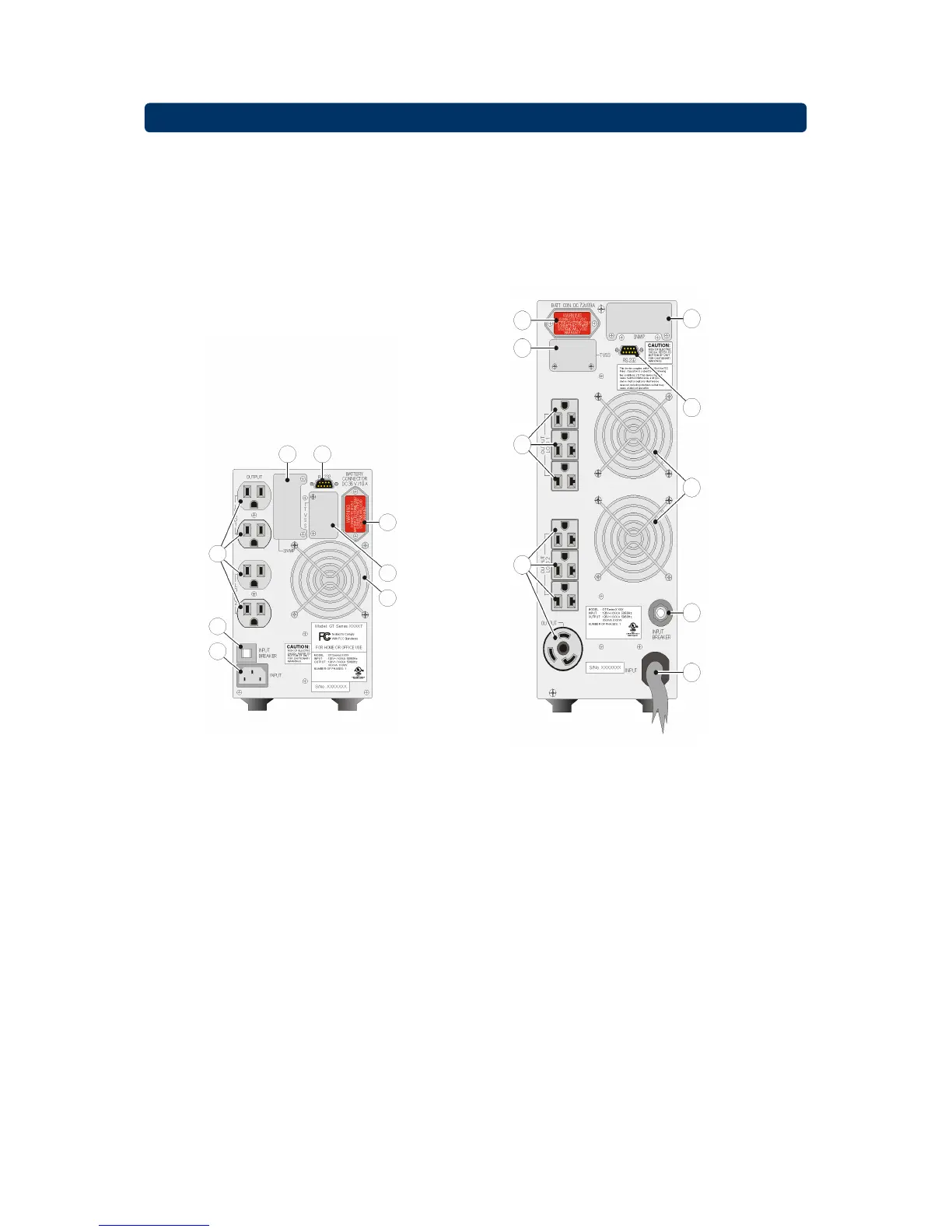

Fig. 2.1 Rear panels
