7.4 PDM: Power Distribution Module
This Power Distribution Module (PDM) contains 4 x Nema 5-20R, 2 x Nema L6-30R and 1 x Nema L14-30 R
Power sockets (see fig. 23). The PDM replaces the conduit box (17), and converts the LP-U into a pluggable
UPS. Only qualified personnel is allowed to install the PDM.
For more information please refer to the user manual that comes with the Power Distribution Module.
A Connector Nema L14-30R (1)
B TCBs (8)
C Connector Nema L6-30R (2)
D Connector Nema L5-20R (4)
7.5 Seismic anchors
Seismic anchors can be ordered separately; contact your local dealer.

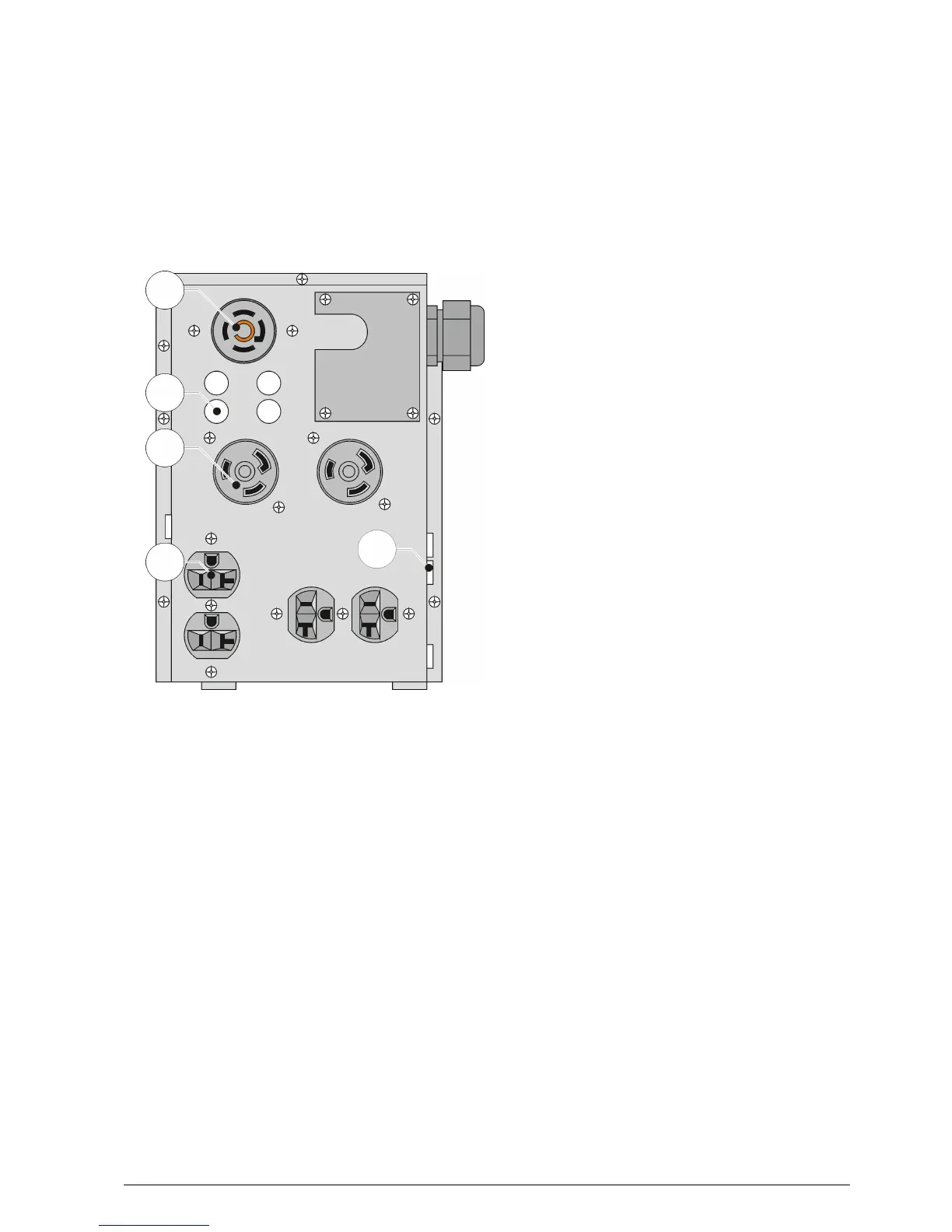

Fig. 23: Power Distribution Module
A
B
C
D
B
