35
11/16/2015

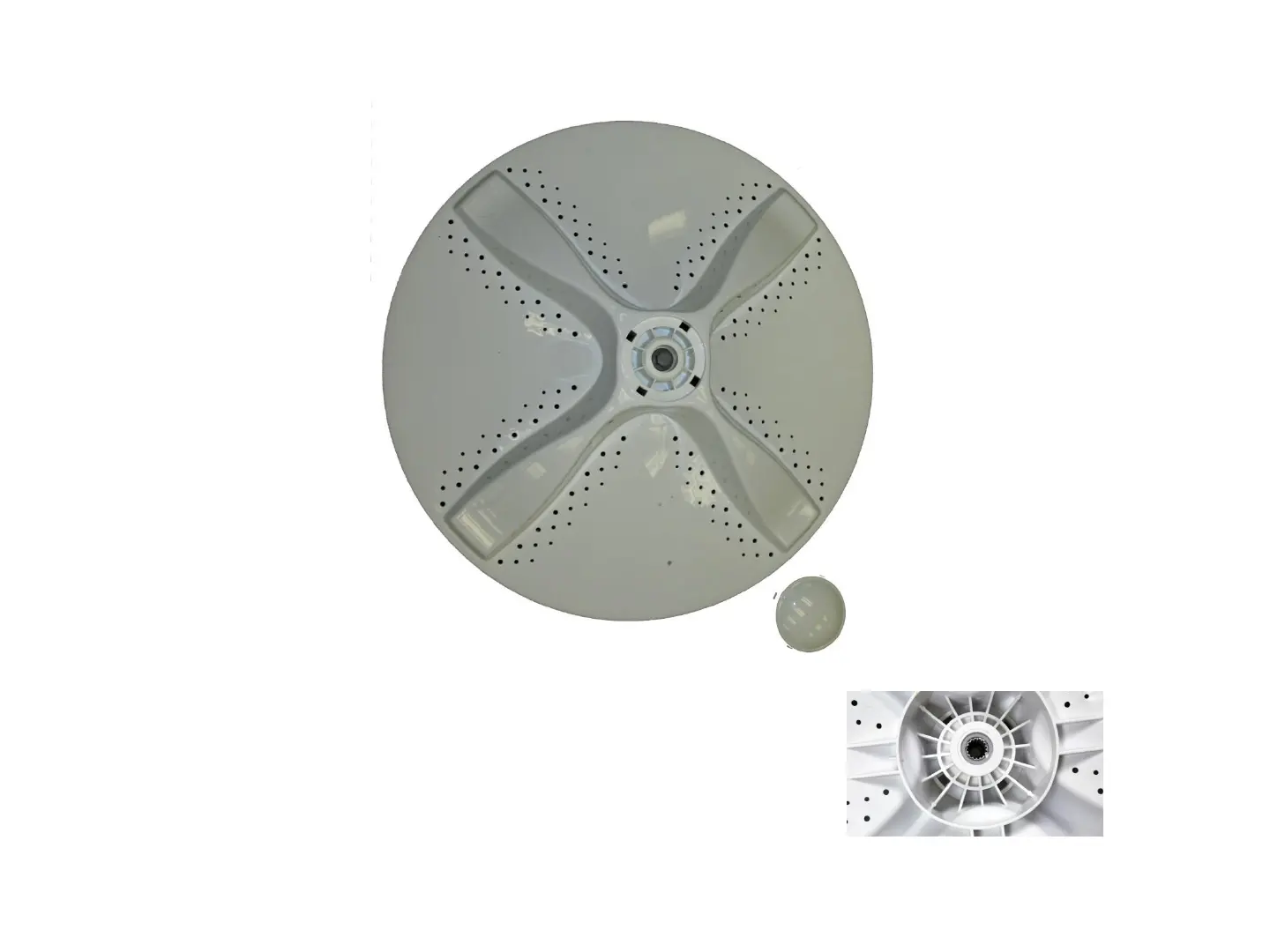

Impeller
T
o r
emove the
imp
eller
, pop
the center
cap off with
a small
scr
ewdriver
to access the 7/16
th
hex bolt
. The
splined coupler
is par
t
of the
impell
er
and agitators.
Note:
Impeller bolt should
be r
eplaced any time it is r
emoved
for service and tor
qu
ed
to 100
in-lbs.
34
36
Table of Contents
Important Safety Notice
2
Some Features & Benefits
5
Nomenclature
6
Nomenclature and Mini (MAXI) Manual Location
7
Serial Number
7
Water Levels
8
Approximate Minimum Water Levels
8
Approximate Maximum Water Levels
8
Model Graphics
9
Lid Assembly Removal
10
Control Panel Assembly Removal
11
Lid Hinge
14
Video Link
14
Lid Lock Striker
17
Lid Switch/Lock Assembly
20
Two Coil Water Valve
24
Four Coil Water Valve on GTW680 Model
27
Four Coil Water Valve Removal
28
To Remove the Water Valve
28
Thermistor Removal
30
Dispenser Removal
31
Impeller and Agitators
34
Impeller
35
Dual Stage Agitator
36
Dual Stage Agitator Auger Removal
37
Single Stage Agitator
39
Top Cover Removal
40
Basket Removal
45
Tub and Cabinet Removal/Replacement
47
Harness Removal/Replacement
49
Bottom Component View
50
Drain and Recirculation Pump
51
Drive Belt
54
Drive Motor
55
Mode Shifter Assembly
57
Platform Transmission Assembly
59
Schematic
62
Control Board User Interface
63
Consumer Error Mode Entry
64
Entry into Consumer Error Mode
64
Consumer Help Indicator
65
Service Mode Entry
66
Binary Display Test and Fault Chart
67
Service Mode Tests
68
Fault Codes
77
Warranty
81
