Mode Shifter Assembly
The mode shifter either engages or
disengages the clutch with the
transmission pulley depending on
whether the cycle is in spin or
agitate.
The clutch home position is engaged
with the pulley or ready for spin.
It has a 120 VAC motor.
Resistance of the mode shift motor
from Brown – Blue is 5700 ohm
from J512 board connector.
To remove the Mode shifter:
Remove the transmission pulley and
nut. The pulley is held on by a 9/16
in. lock nut. Use a new nut when
reinstalling the pulley and torque
to 110 in-lbs.

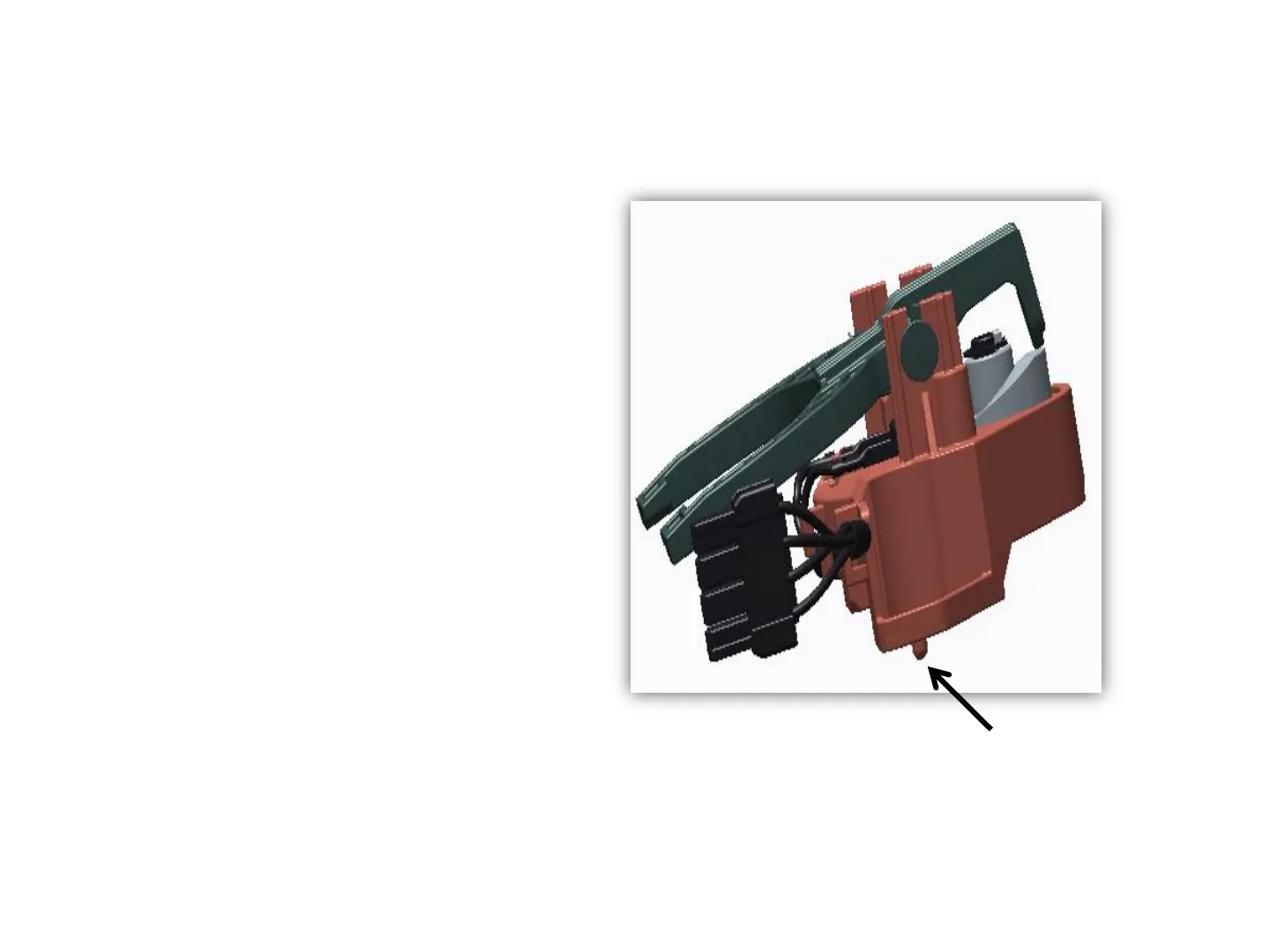

Guide Pins
