49
11/16/2015
Harness R
emoval
/Repl
acement
The cabinet
needs to be
remov
ed to
replace
the
harness
assembl
y.
Once the c
abinet is r
emoved
there
are

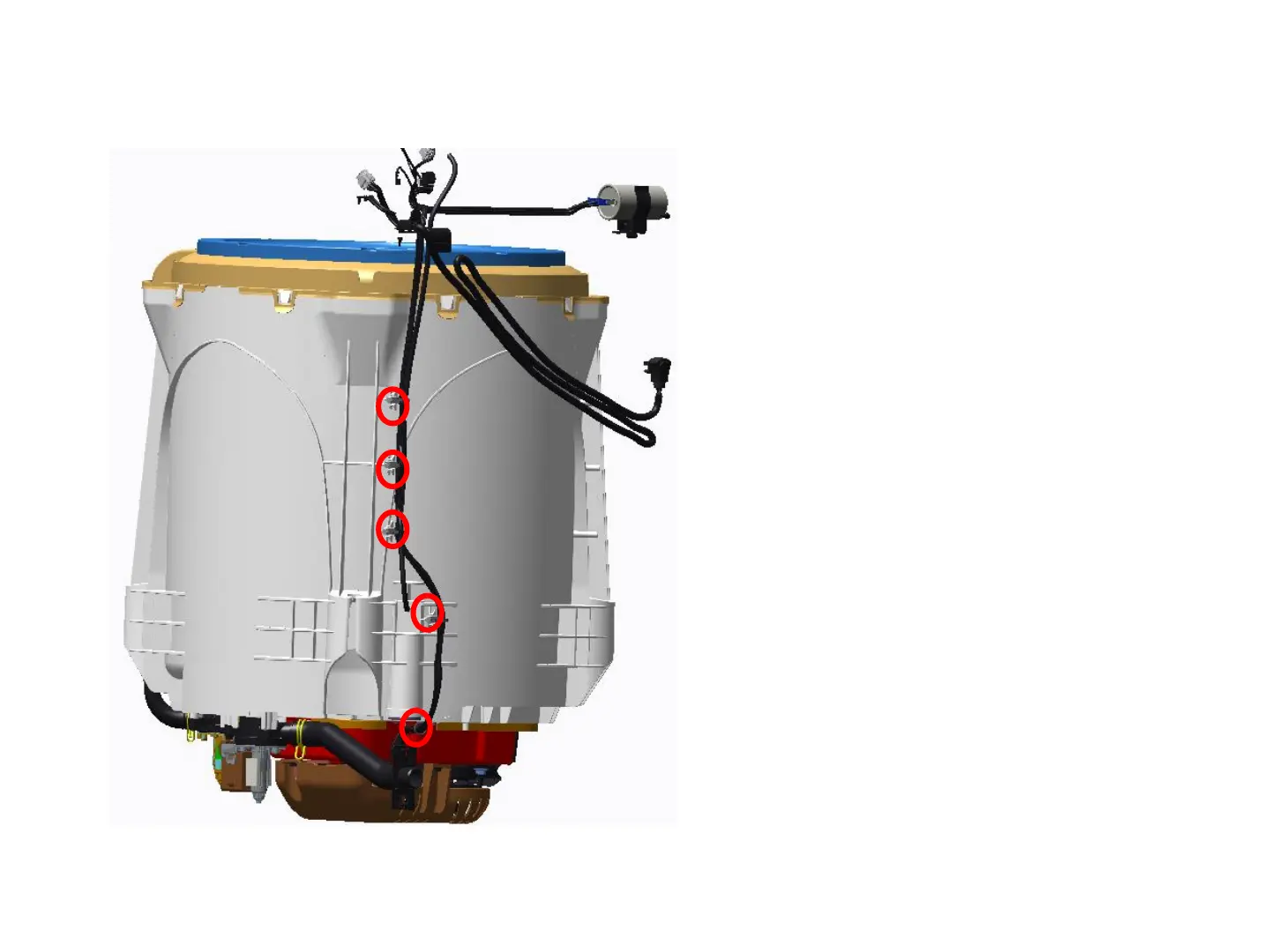

four 1/4
i
n. hex
head scr
ews that
secure
the harness
to the
side of the
tub that
ne
ed
to be r
emoved.
There
is one ¼ in. hex head
scr
ew on
the bottom
and up to
six wire
ties.
48
50
