29
Hydran* M2 Insta
llation Guide
16375 v9.0 Oct
12
Figure
30
:

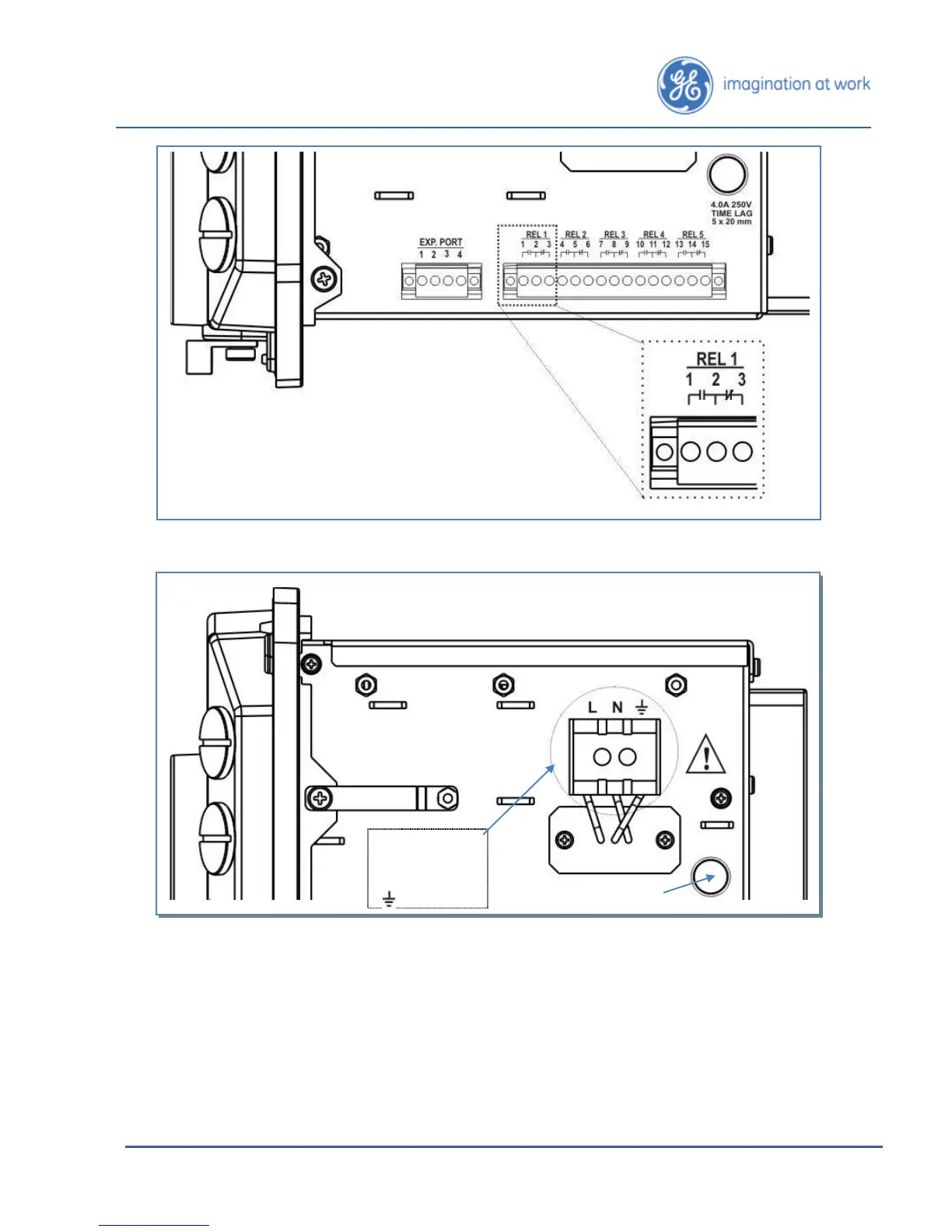

Wiring of
the Alarm Rela
ys Terminal Block
Figure
31
:
Wiring of
the AC Power
Supply Terminal Bloc
k
−
Five (5) alarm relays
−
Software
con
figu
rabl
e
−
SPDT (Form C
) cont
acts:
1.
Normally O
pen
2.
Common
3.
Normally c
losed
L
= LINE
N
= NEUTRAL
= GROUND
Fuse Holder
28
30
Table of Contents
