Hydran* M2 Insta
llation Guide
16375 v9.0 Oct
12
Install
ing
the Cov
er

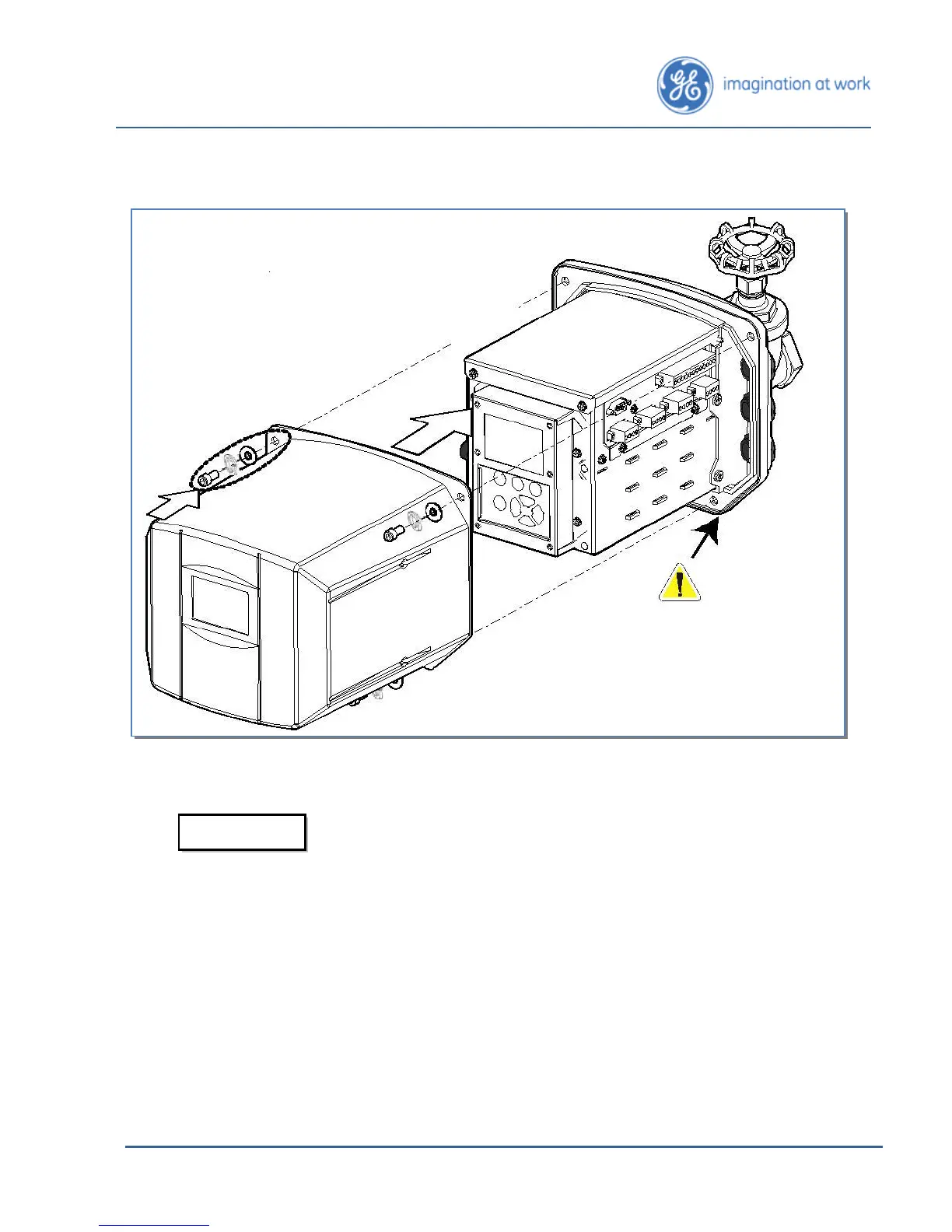

Figure
34
:
Installing the
Cover
When installing the
cover, the 4
screws must be t
ightened correctly.
A minimum torque of 50 lbf
-
in (5.6 N
-
m) is recommended.
Failure to
do so may result in wat
er ingress ins
ide the enclosure.
CAUTI
ON
CAUTIO
N
Gasket must be
properly in place
1.
Put cover
back
in place
.
2.
Insert th
e four (
4) scre
ws wit
h flat
washers
and s
plit
lock was
hers. U
sing s
upplie
d Hex
key too
l, tigh
ten
the scr
ews on
e by one
diago
nally.
42
44
