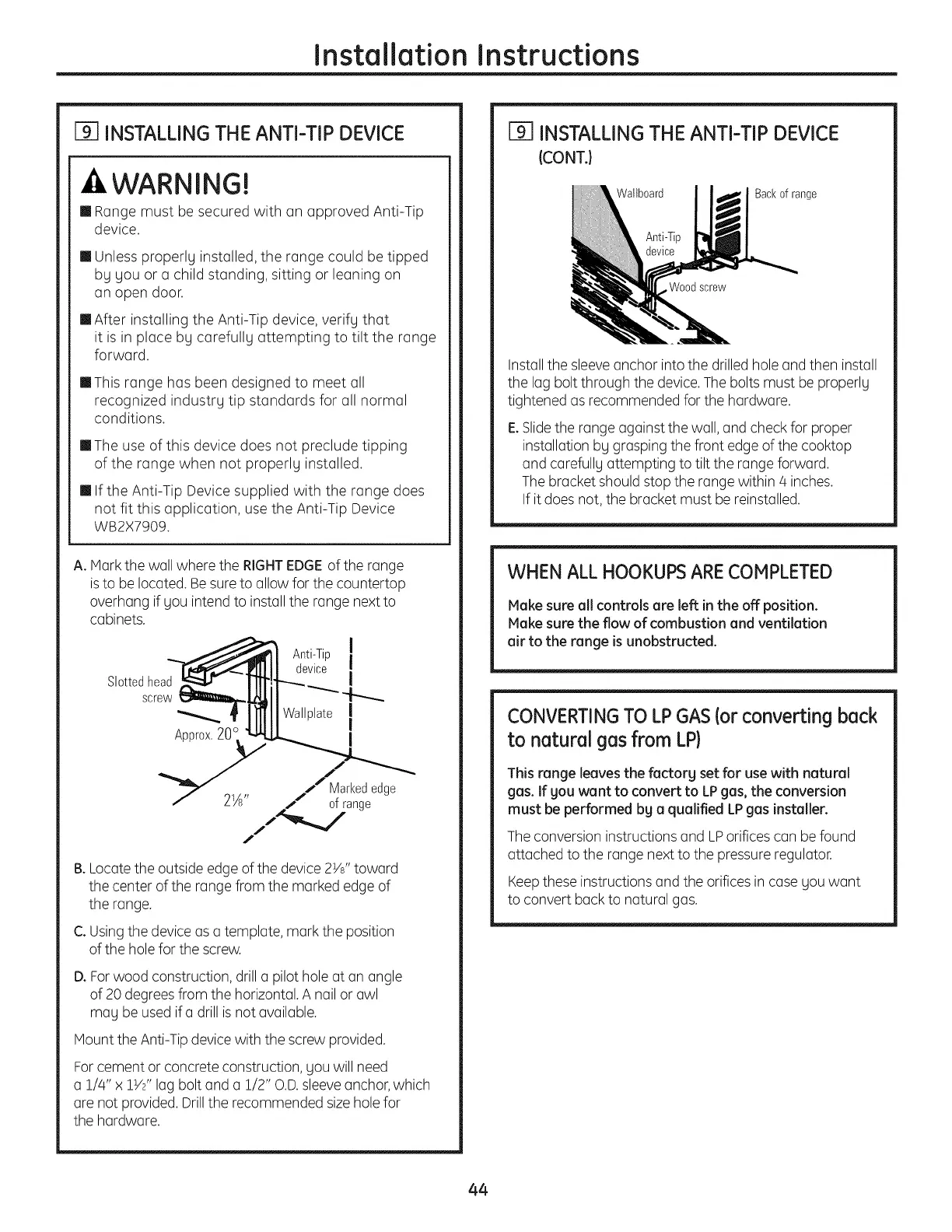

Installation Instructions
[_] INSTALLING THE ANTI-TIP DEVICE
-AWARNING!
m Range must be secured with an approved Anti-Tip
device.
m Unless properly installed, the range could be tipped
by you or a child standing, sitting or leaning on
an open door.
mAfter installing the Anti-Tip device, verify that
it is in place by carefully attempting to tilt the range
forward.
mThis range has been designed to meet all
recognized industry tip standards for all normal
conditions.
raThe use of this device does not preclude tipping
of the range when not properly installed.
m If the Anti-Tip Device supplied with the range does
not fit this application, use the Anti-Tip Device
WB2X7909.
A. Mark the wall where the RIGHTEDGEof the range
isto be located.Be sureto allow for the countertop
overhang if you intend to installthe range next to
cabinets.
Slottedhead
screw
Anti-Tip
device
Wallplate
Approx.20c
Markededge
21_. j/ ofrange
B.Locate the outside edge of the device 2_/s" toward
the center of the range from the marked edge of
the range.
C. Usingthe device as a template, mark the position
of the holefor the screw.
D. Forwood construction, drill a pilot hole at an angle
of 20 degreesfrom the horizontal.A nail or awl
may be usedifa drill is not available.
Mount the Anti-Tip devicewith the screw provided.
Forcement or concrete construction, you will need
a 1/4" x 1V2"lag bolt and a 1/2" O.D.sleeveanchor,which
are not provided. Drillthe recommended sizehole for
the hardware.
[_] INSTALLING THE ANTI-TIP DEVICE
(CONT.)
Wallboard
Backof range
Woodscrew
Installthe sleeveanchor into the drilled hole and then install
the lag bolt through the device.The bolts must be properly
tightened as recommended for the hardware.
E.Slidethe range against the wall, and checkfor proper
installation by grasping the front edge of the cooktop
and carefully attempting to tilt the range forward.
Thebracket should stop the range within/4 inches.
If itdoes not, the bracket must be reinstalled.
WHEN ALL HOOKUPSARE COMPLETED
Make sure all controls are left in the off position.
Make sure the flow of combustion and ventilation
air to the range is unobstructed.
CONVERTINGTO LPGAS(or converting back
to natural gas from LP)
This range leaves the factorg set for use with natural
gas. If gou want to convert to LPgas, the conversion
must be performed bg a qualified LP gas installer.
The conversion instructions and LPorifices can be found
attached to the range next to the pressureregulator.
Keepthese instructions and the orifices in case you want
to convert back to natural gas.
