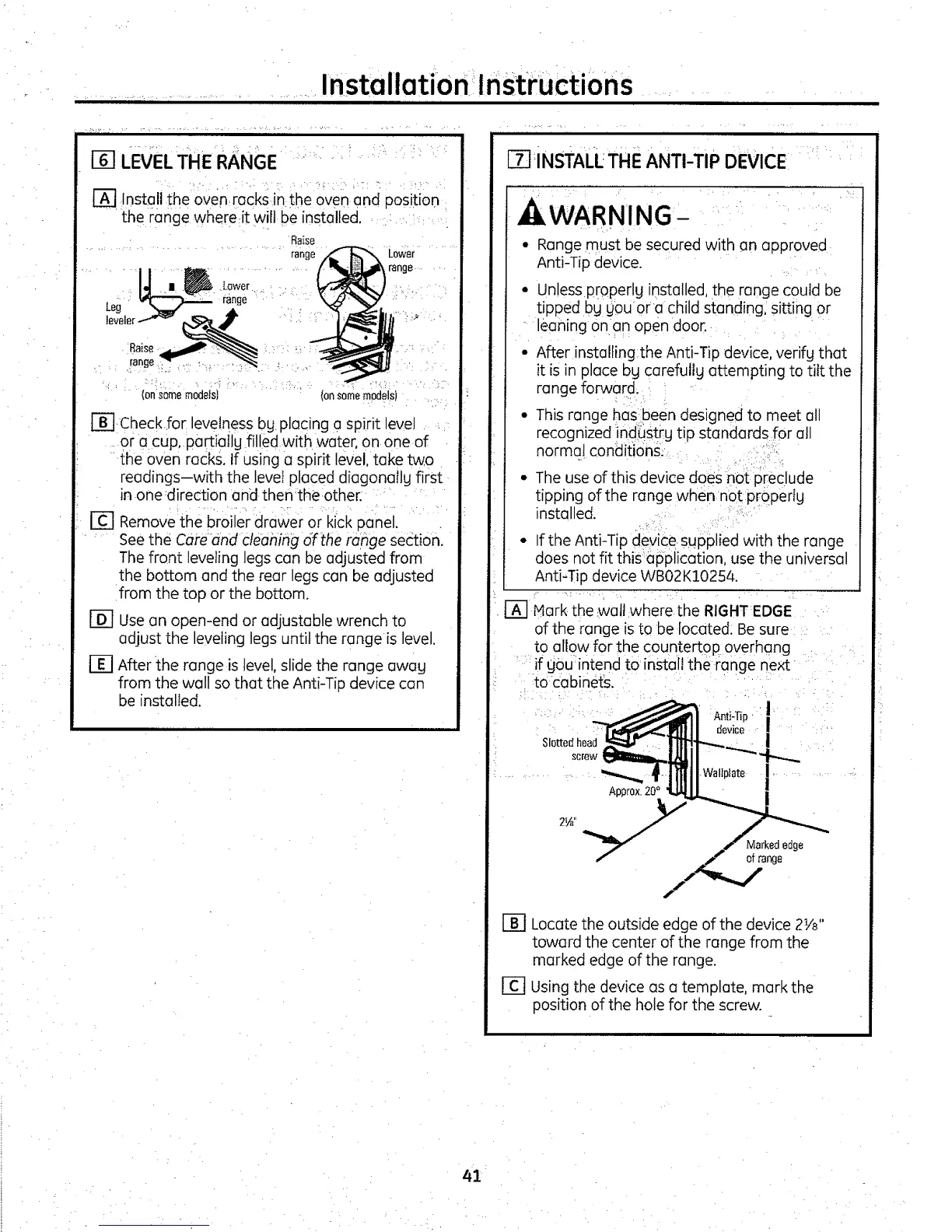

Installation Instructions
ii i
[] LEVEL THE RANGE .....
J-_ Install the oven racks in the oven and position
the range where,it will be installed.
Raise
range Lower
range
[]
[]
[]
(onsomemodels} (onsomemodels
Check.for levelness bg placing a spirit level
or a cup, partiatlg filled with water, on one of
the oven racks. If using a spirit level, take two
readings--with the level placed diagonaflg first
in one direction and then_the other.
Remove the broiler drawer or kick panel.
See the Careand cleaning 6f the range section.
The front leveling legs can be adjusted from
the bottom and the rear legs can be adjusted
from the top or the bottom.
Use an open-end or adjustable wrench to
adjust the leveling legs until the range is level.
After the range is level, slide the range awag
from the wall so that the Anti-Tip device can
be installed.
t-_ iNSTALL THE ANTI-TIP DEVICE
WARNING-
Range must be secured with an approved
Anti-Tip device.
Unless properlg installed, the range could be
tipped bg you era child standing, sitting or
leaning on an open door
• After installing the Anti-Tip device, verifg that
it is in place bg carefullg attempting to tilt the
range forward.
• This range has been designed to meet all
recognized ind_4strg tip standards for all
normal conditions.
The use of this device does not preclude
tipping of the range when not properfg
installed.
If the Anti-Tip device. SUpplied with the range
does not fit thisapplication, use the universal
Anti-Tip device WBO2K10254.
Hark the wattwhere the RIGHT EDGE
of the range is to be located. Be sure
to allow for the countertop overhang
if gou intend to install the range next
to cabinets.
Slottedhead
screw
Anti-Tip !.
device I
ofrange
[] Locate the outside edge of the device 2W'
toward the center of the range from the
marked edge of the range.
[] Using the device as a template, markthe
position of the hole for the screw.
41
