Installation Instructions
OPTIONAL ACCESSORIES
Duct Cover
A Decorative duct cover is available to accommodate
8 to 10 ft. ceiling heights. The duct cover will expand
from 12 Min. or 24 to 34 Max. height.
• The duct cover conceals the ductwork running
from the top of the hood to the ceiling.
• The duct cover accessory fits both 30 and 36 wide
models. Order the duct cover accessory at the same
time as the vent hood. All accessories should be on
site at the time of hood installation.
Order JXCHSS.

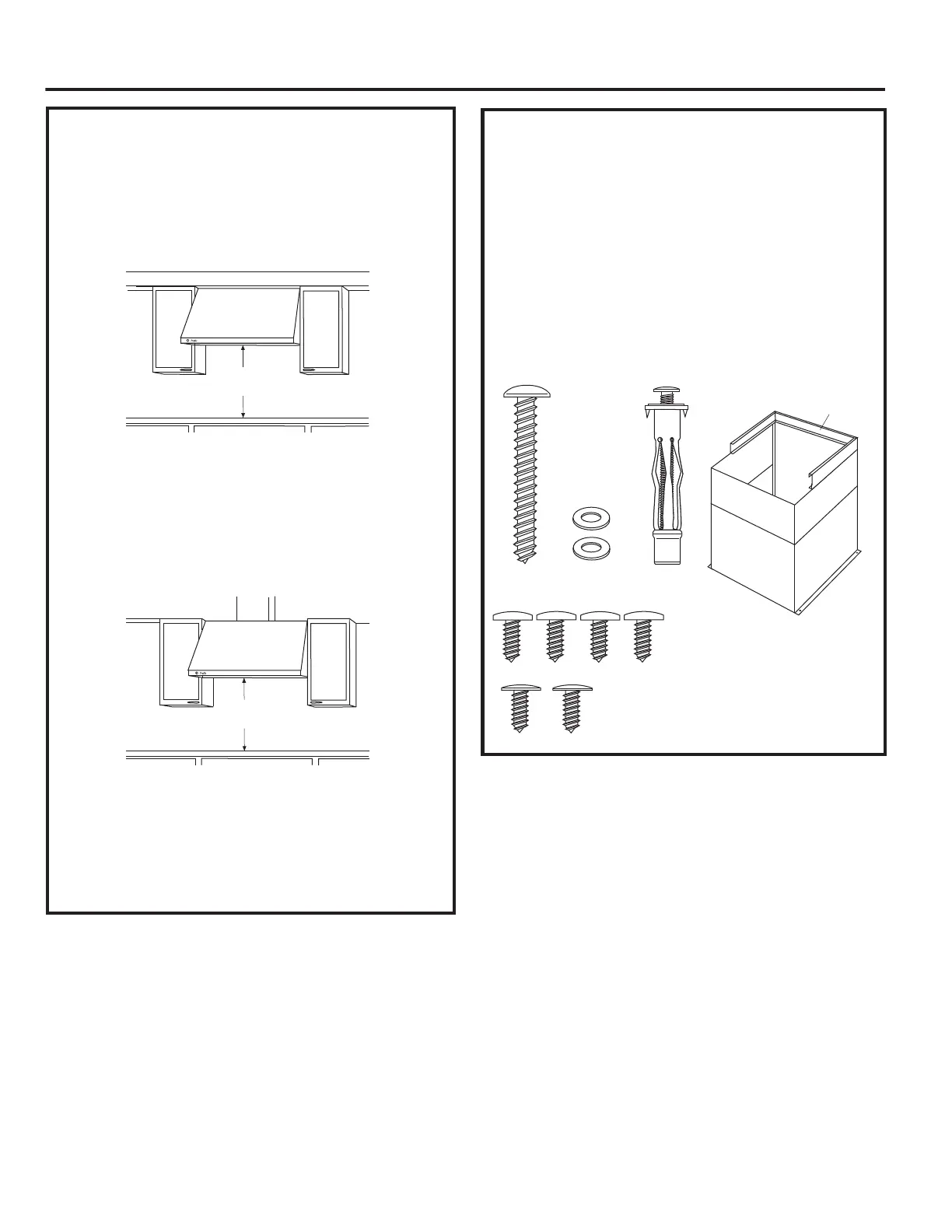

INSTALLATION CLEARANCES
These vent hoods are designed to be installed onto a
wall. They may be installed beneath a soffit or cabinet.
• Install these hoods 24 Min. to 36 Max. above the
cooking surface.
2-Piece
Duct Cover With
Ceiling Bracket
2 Phillips Head
Decorative Screws
SOFFIT
SOFFIT INSTALLATION
24" MIN.
36" MAX.
WALL MOUNT INSTALLATION
24" MIN.
36" MAX.
In this installation the ductwork running from the
top of the hood will be concealed in the soffit or
upper cabinetry.
For this installation, a decorative duct cover is
available to conceal the ductwork running from
the top of the hood. Use of the duct cover requires
special consideration to the installation height
above the countertop. See page 12 for details.
2 Wood
Screws
2 Wall
Fasteners
2 Washers
4 Phillips Head
Screws
Ceiling Bracket
8
To Next Page
