GE JVM3160 Installation Instructions

14
Installation Instructions

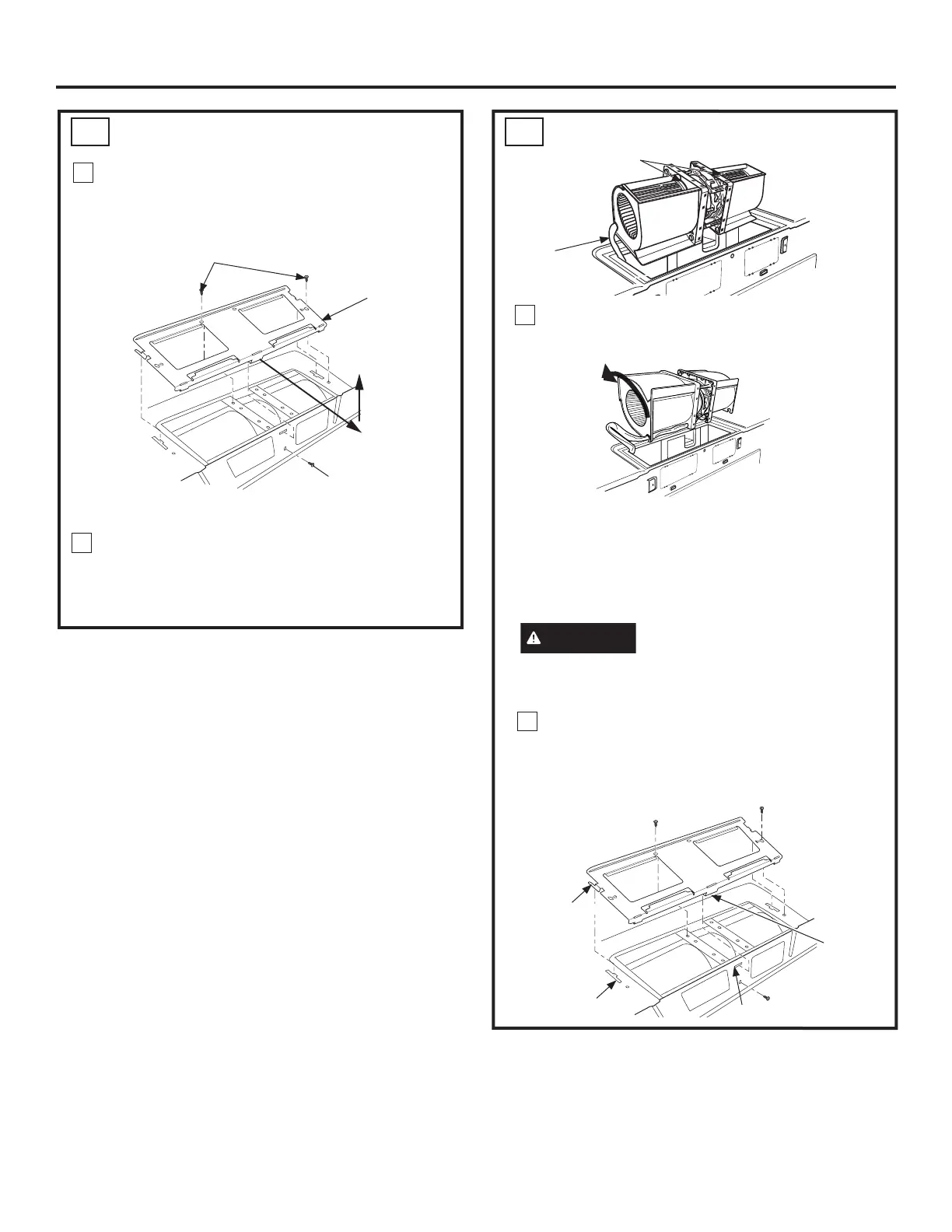

ADJUST BLOWER MOTOR
A3
Remove the screws holding the blower unit and
the screws securing the blower plate. Remove
the blower plate from the outer case by sliding it
toward the back of the microwave and pulling up.
1
Blower
Plate
Blower Motor Screws
Blower
Motor
Screw
2
Carefully pull out the blower unit. The wires will
extend far enough to allow you to adjust the
blower unit.
ADJUST BLOWER MOTOR (cont.)
A3
Roll the blower 90° so that fan blade openings
are facing toward the front of the microwave.
Slide the blower plate back onto the microwave
by placing the side tabs into the slots and
pushing gently until the back tab is seated into
the rear slot. Replace 3 screws.
Note: Make sure the wires remain routed through
the openings in the motor frame. To avoid damage
to the fan motor wiring, insert motor carefully such
that the fan motor wiring does not contact the
microwave power cord bracket.
3
4
Back of
Microwave
Rotate 90°
WARNING
Risk of Electric Shock.
Can cause injury or death. Do not pull or
stretch the blower unit wiring. Make sure the
wires are not pinched.
Side Tab
Side Slot
Rear Slot
Rear Tab
Back of
Microwave
Fan Blades
Wires
