Installation Instructions

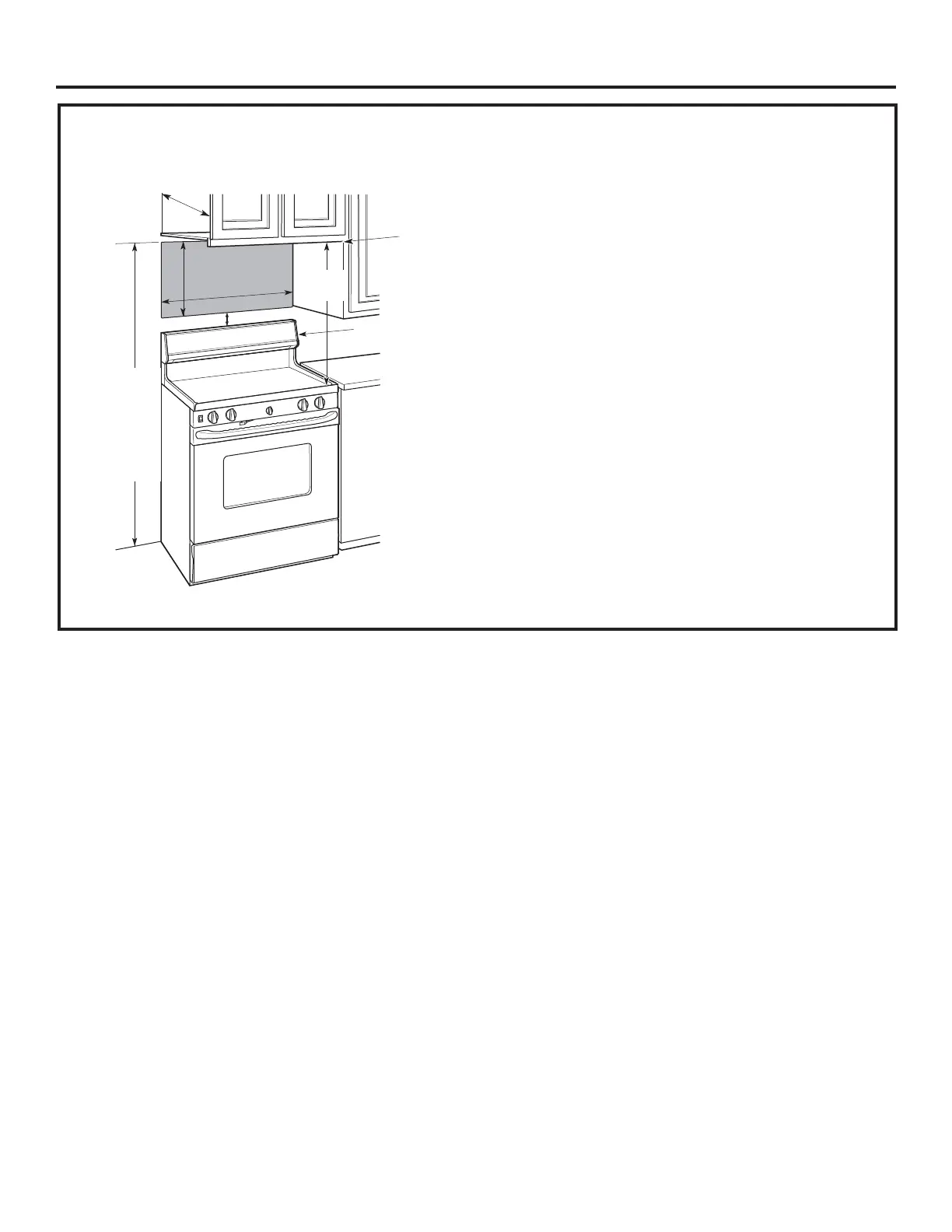

MOUNTING SPACE
NOTES:
• The space between the cabinets must be 30s
wide and free of obstructions.
• This microwave oven is for installation over
ranges up to 36s wide.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for power
cord clearance.
• For models setup in Recirc Exhaust: Do not allow
cabinetry or other objects to block the airflow of the
vent.
• The product should not be installed over any
cooktop or range with a combined BTU greater
than 60,000 BTU.
* 13” max: for standard installation, 15” cabinet
depth requires additional steps using an additional
installation kit JX15BUMPWW/BB.
Backsplash
66s or
more from
the floor
to the top
of the
microwave
oven
30s
2s
30s
min.
16-½s
Bottom edge of
cabinet needs
to be 30s or
more from the
cooking surface
13s
max*
