GE LOGIQ V5 Service Manual

GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3 BASIC SERVICE MANUAL
Chapter 4 - Functional Checks 4 - 31
4-3-13-4 Archiving Images (cont’d)
10.)The status menu appears. When the backup/move has been complete, press Next.
NOTE: If you need to insert the next media, a message appears providing you with the media label.
Label the media, then insert the next media and press OK.
11.)When the backup is complete, the completion wizard page appears. Press Finish.
All databases, presets and images should now be saved to removable media.

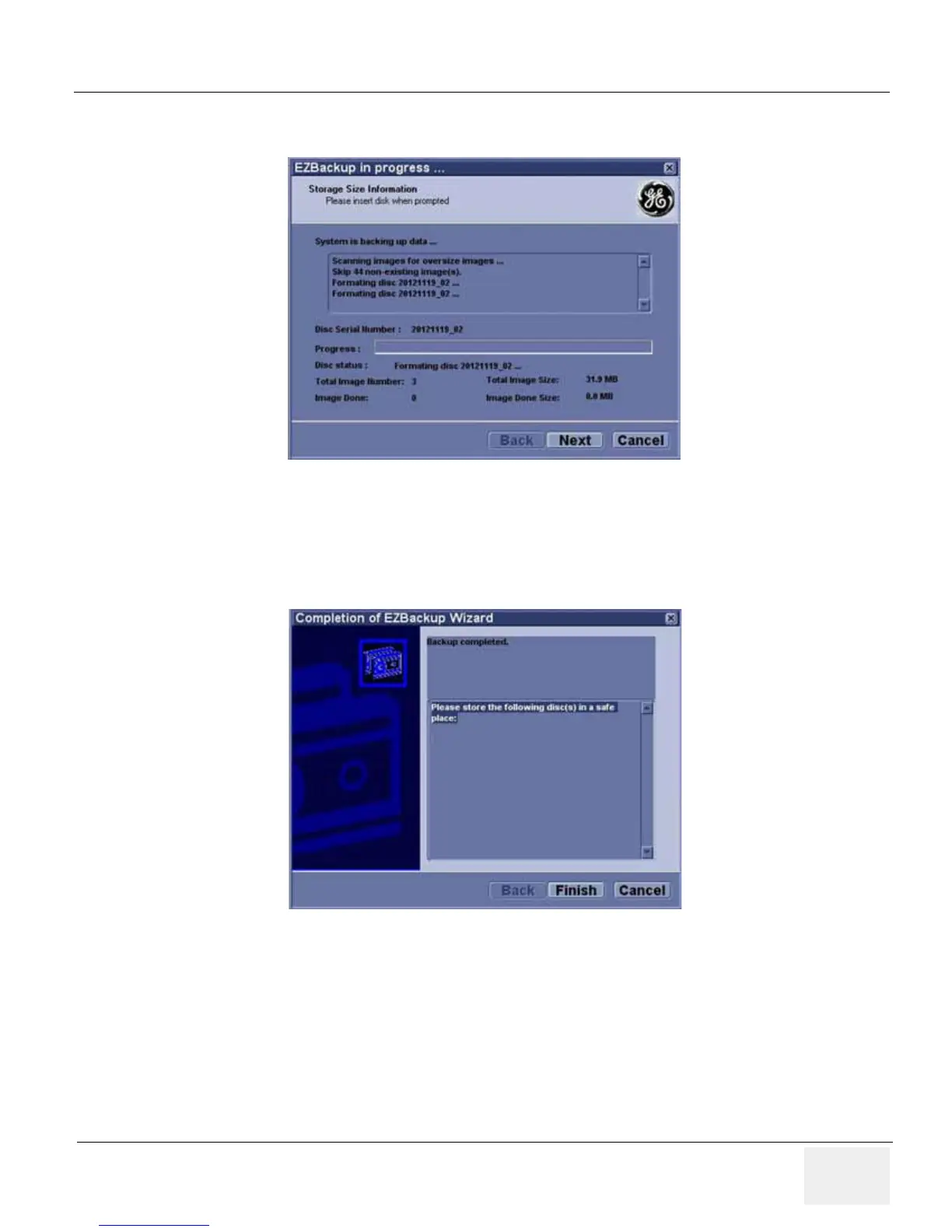

Figure 4-26 EZBackup Wizard 3
Figure 4-27 EZBackup Completion Window

GE LOGIQ V5 Specifications

General

Brand	GE
Model	LOGIQ V5
Category	Medical Equipment
Language	English
