AR Lockout
No Block
Block Inst Prot
&
Autoreclose disabled
Lockout Alarm
Pre-Lockout
EFF Maint Lock
No Block
Block Inst Prot
&
Block Main Prot Trips
Main Protection Start
& & &
Live Line Mode (int)
1
S
R
Q
1 & AR Blk Main Prot
Block SEF Prot Trips
SEF Protection Start
& & &
Live Line Mode (int)
1
S
R
Q
1 & AR Blk SEF Prot
Lockout Alarm
1
AR Deselected
No Block
Block Inst Prot
&
Non Auto Mode
1
&
AR In Progress
Auto Mode (int)
CB Closed 3 ph
Autoreclose inhibit
Manual Close
No Block
Block Inst Prot
&
20ms
V00507

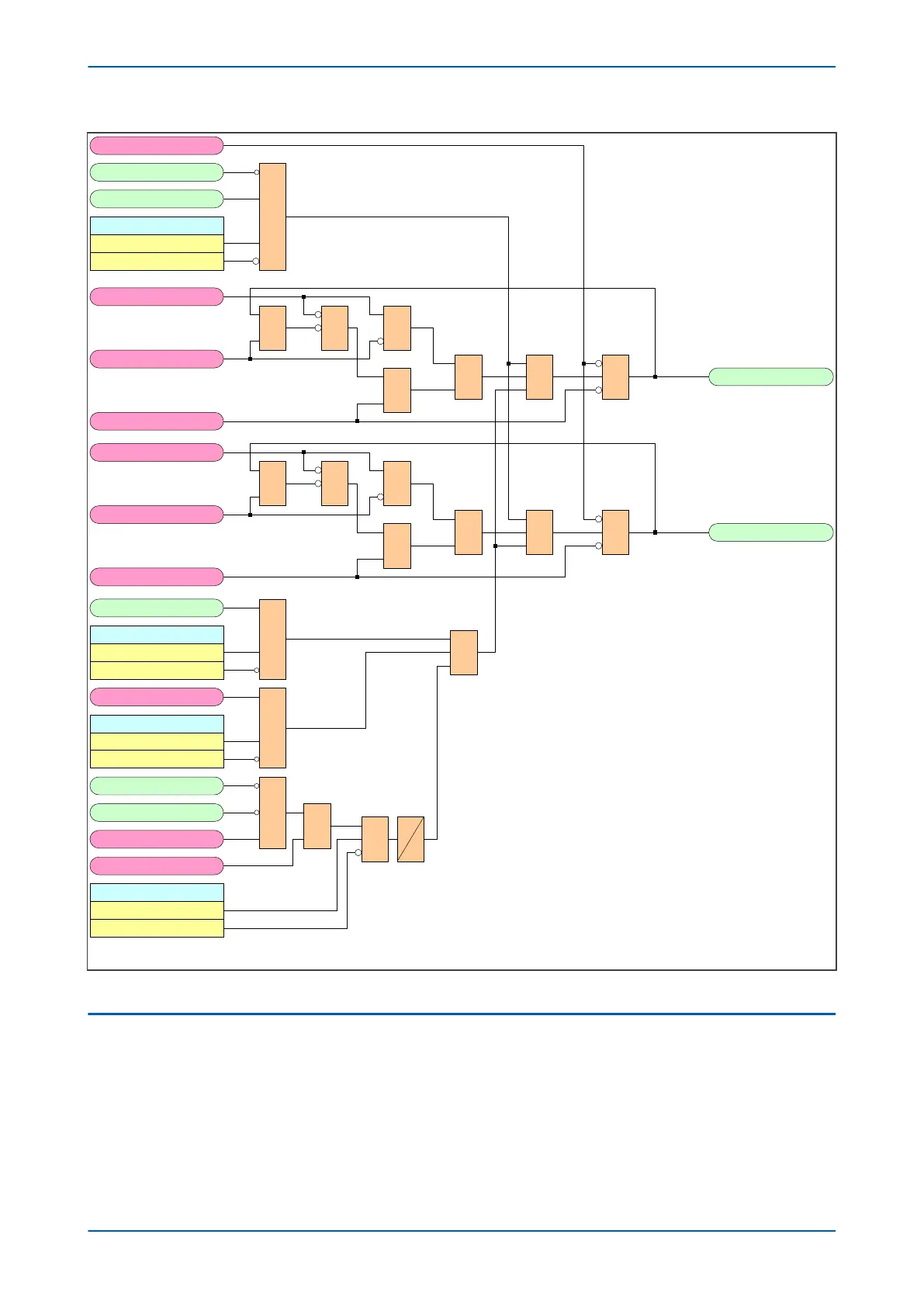

Figure 153: Blocking instantaneous protection for lockouts
7.5 DEAD TIME CONTROL
When the setting CS AR Immediate is enabled, immediate r
e-closure of the circuit breaker is allowed providing
that both sides of the circuit breaker are live and in synchronism at any time after the dead time has started. This
allows for quicker load restoration, as it is not necessary to wait for the full dead time to expire.
If CS AR Immediate is disabled, or neither Line nor Bus are live, the dead timer will continue to run, if the Dead
Time Enabled signal is high. The Dead Time Enabled function could be mapped to an opto-input to indicate that
the circuit breaker is healthy. Mapping the Dead Time Enabled function in PSL increases the flexibility by allowing it
Chapter 13 - Autoreclose P14x
296 P14xEd1-TM-EN-1
