GE Monogram ZDP48N4G Installation Instructions

Installation

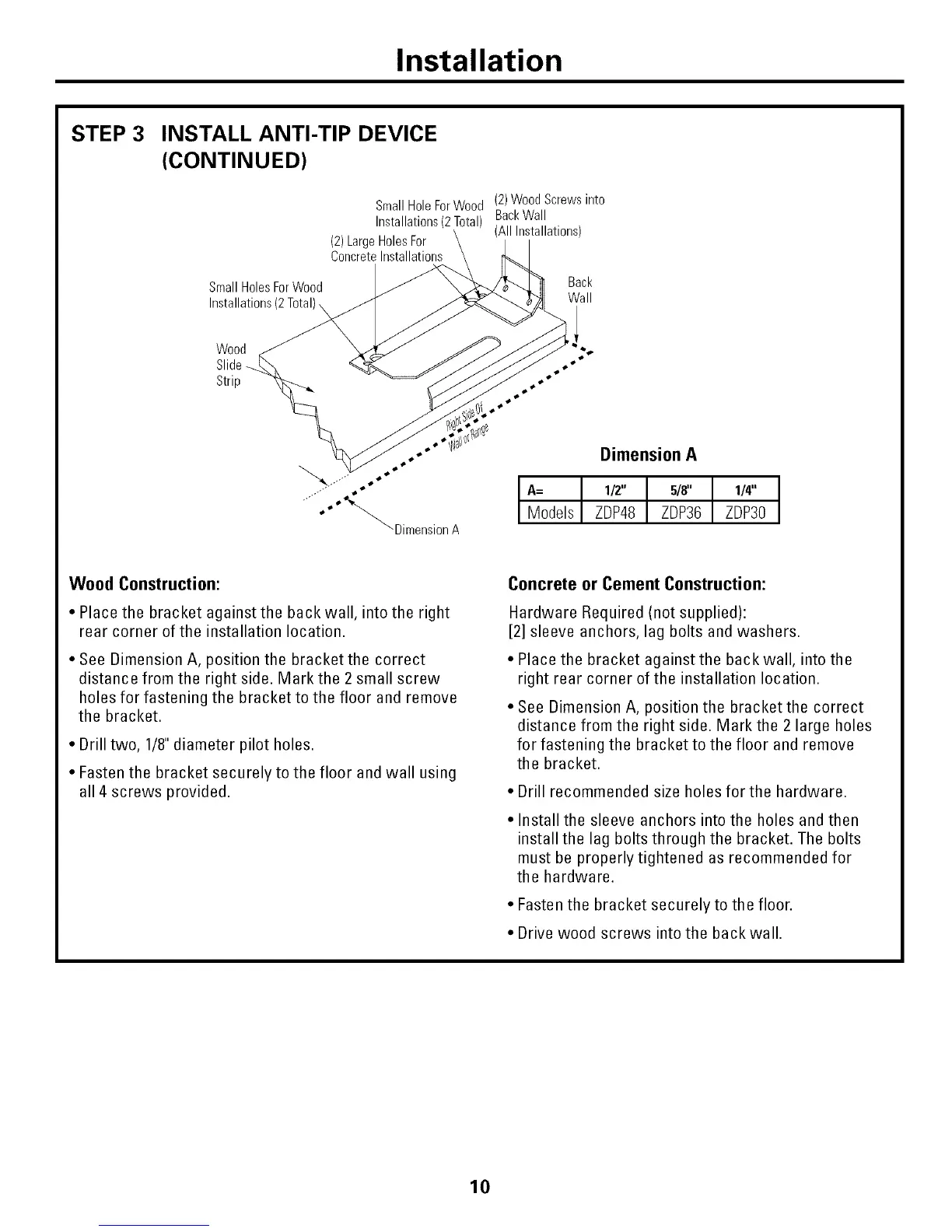

STEP 3 INSTALL ANTI-TIP DEVICE
(CONTINUED)
SmallHolesForWood
Installations(2
SmallHoleForWood
Installations(2 Total)
(2)LargeHolesFor
ConcreteInstallations
(2)WoodScrewsinto
BackWall
(All Installations)
Back
Wall
Wood
Slide
Strip
Dimension A
5/8"
ZDP36
1/4"
ZDP30
Wood Construction:
• Place the bracket against the back wall, into the right
rear corner of the installation location.
• See Dimension A, position the bracket the correct
distance from the right side. Mark the 2 small screw
holes for fastening the bracket to the floor and remove
the bracket.
• Drill two, 1/8"diameter pilot holes.
• Fasten the bracket securely to the floor and wall using
all 4 screws provided.
Concrete or Cement Construction:
Hardware Required (not supplied):
[2] sleeve anchors, lag bolts and washers.
• Place the bracket against the back wall, into the
right rear corner of the installation location.
• See Dimension A, position the bracket the correct
distance from the right side. Mark the 2 large holes
for fastening the bracket to the floor and remove
the bracket.
• Drill recommended size holes for the hardware.
• Install the sleeve anchors into the holes and then
install the lag bolts through the bracket. The bolts
must be properly tightened as recommended for
the hardware.
• Fasten the bracket securely to the floor.
• Drive wood screws into the back wall.
10
