Installation
Chimney Vent
Hoods
Instructions
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT — Save these instructions
for local inspector’s use.
•
IMPORTANT — Observe all governing
codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this vent hood requires
basic mechanical and electrical skills.
• Completion time –
Approximately 1 to 3 hours
• Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.

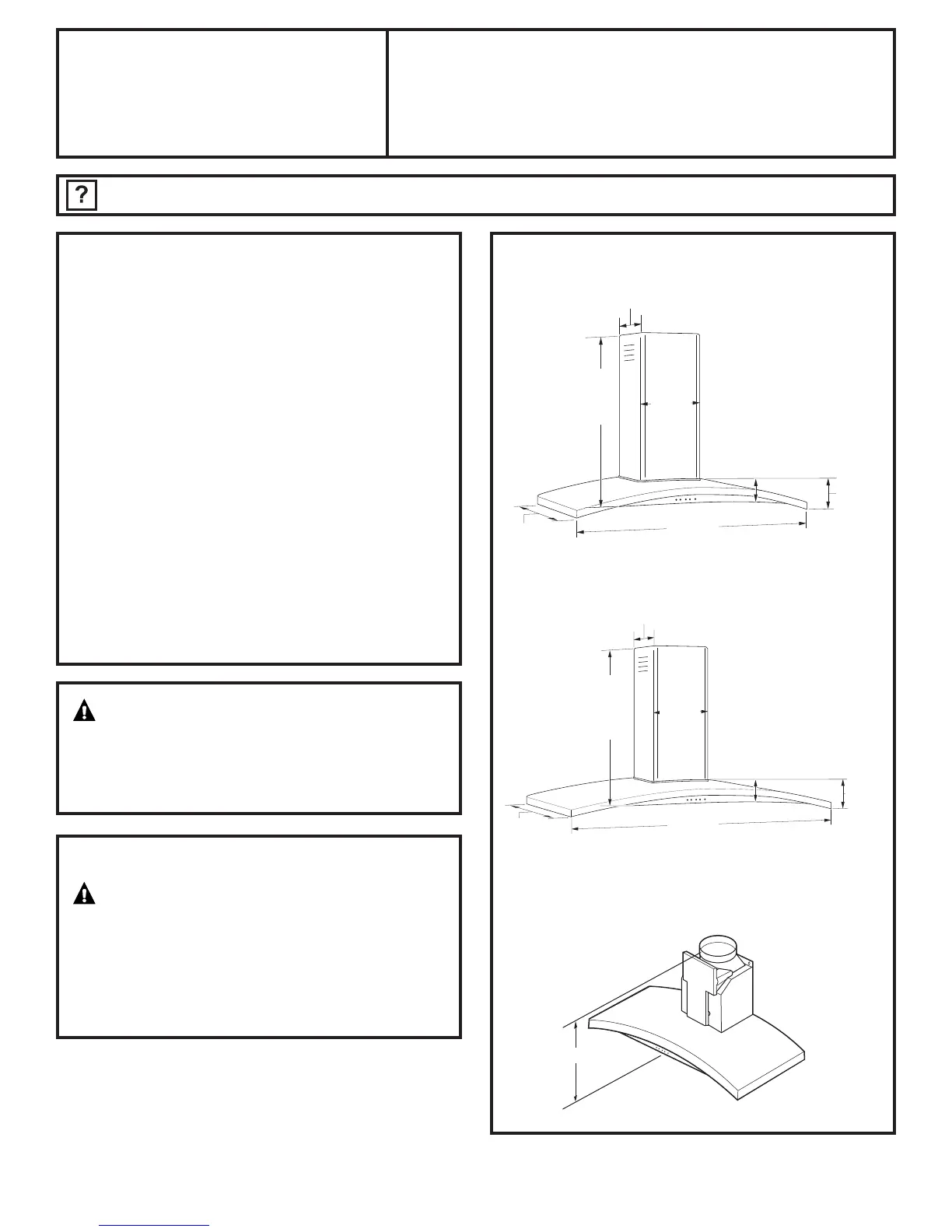

PRODUCT DIMENSIONS
FOR YOUR SAFETY:
WARNING — Before beginning the
installation, switch power off at service panel and
lock the service disconnecting means to prevent
power from being switched on accidentally. When
the service disconnecting means cannot be locked,
securely fasten a prominent warning device, such
as a tag, to the service panel.
CAUTION — Due to the weight
and size of these vent hoods and to reduce
the risk of personal injury or damage
to the product, TWO PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION.
30" Models Require a 30" Wide Opening
*Height
to
Ceiling
19
-
3/4"
29-7/8"
2-1/2"
13-1/8"
10-7/8"
*Height
to
Ceiling
19
-
3/4"
35-7/8"
3-1/8"
13-1/8"
10-7/8"
36" Models Require a 36" Wide Opening
2-1/4"
* For supplied duct cover ceiling heights for vented installation
and recirculating installation, refer to the table on page 13.
17-1/2"
Allow 1" overlap
of duct.
2-3/8"
