OPM_SGS_USM_10K_40K_0US_V010.doc 27/88 Operating Manual
SG Series
10, 20, 30 & 40 kVA
6.3 PARAMETERS

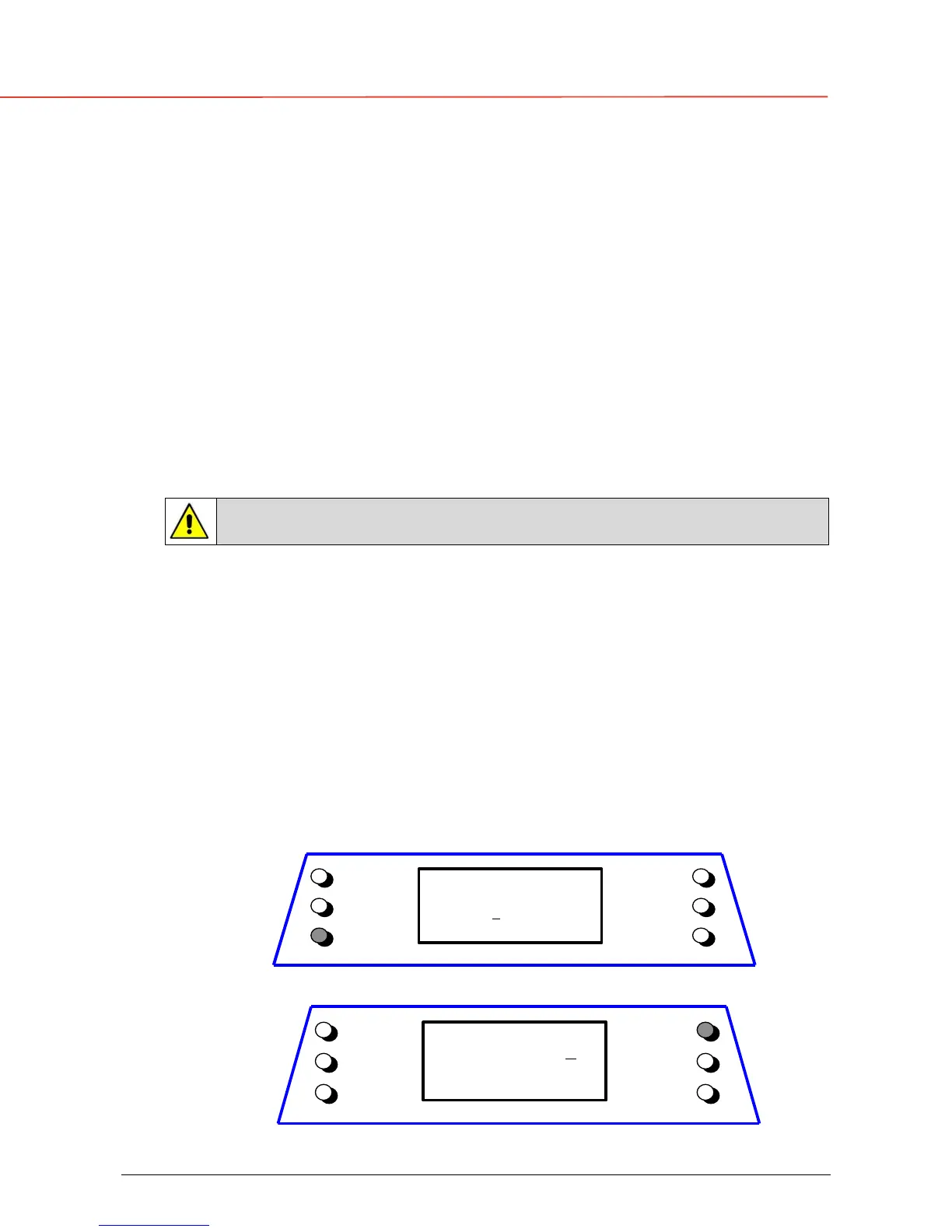

The parameters mode is entered any time the parameters button is pressed.
The LCD will display a series of screens containing the user parameters, accessible without
password protection.
The buttons perform the following functions:
metering Abandon parameters mode and enter metering mode.
alarms
Abandon parameters mode and enter alarms mode.
parameters Scroll forward to the next screen.
+
Scroll forward to the next screen.
– Select from the current screen the parameter to edit.
ok Start the editing for the currently selected parameter.
During parameters mode there is no means to perform scroll back on the
display.
Example of operation within parameters mode:
Purpose: to correct a wrong telephone number previously stored in Tel2.
1 – entering parameters mode (parameters). The first screen is displayed.
2 – scroll to the next screen (+). The second screen is displayed.
3
– scroll to the next screen (
+
). The third screen is displayed.
4 – move the selection (underscore cursor) to the next parameter in this page (-).
5 – move the selection to the next parameter in page (-).
6
– enter Edit mode for the currently selected parameter (
ok
).
DATE AND TIME
D M Y
Date: 01
.10.2002
Time: 12:45:07
metering
1
alarms
parameters
+
–
ok
PROTOCOL SETUP
Modem enabled=N
Init=BEQV1X3&D0S0=2
Alarm= N Delay=22s
metering
2
alarms
parameters
+
–
ok
