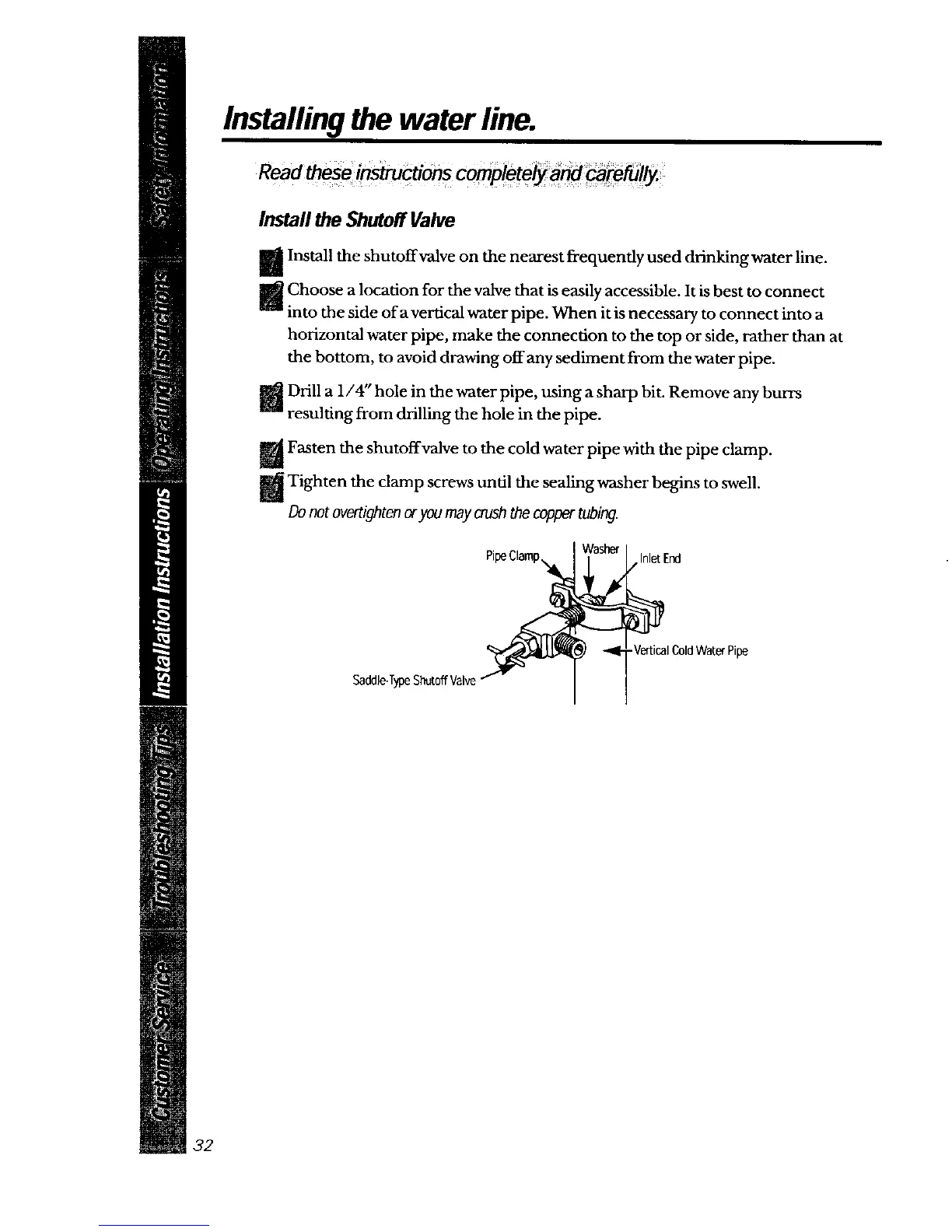

Installingthe water line.
Install the Shutoff Valve
Install the shutoffvalve on the nearest frequently used drinking water line.
tChoose a location for the valve that is easily accessible. It is best to connect
into the side of a vertical water pipe. When it is necessary to connect into a
horizontal water pipe, make the connection to the top or side, rather than at
the bottom, to avoid drawing off any sediment from the water pipe.
Drill a 1/4" hole in the water pipe, using a sharp bit. Remove any burrs
resulting from drilling the hole in the pipe.
Fasten the shutoffvalve to the cold water pipe with the pipe clamp.
Tighten the clamp screws until the sealing washer begins to swell.
Donot overtighten oryou may crushthe coppertubing.
PipeClamp InletEnd
Saddle-TypeSht_toffValve
.VerticalColdWater Pipe
32
