4. Usage of PSO Terminal Function
- 8 -
4. Usage of PSO Terminal Function
When using the U2KV23PI0 PSO4, 5 terminals, set parameter C33-0, 1 sequence output signal.
(Appendix Table 3)
Refer to Table 5-4 in the VAT2000 Instruction Manual (PCST-3251) for details on the sequence
output signal functions.

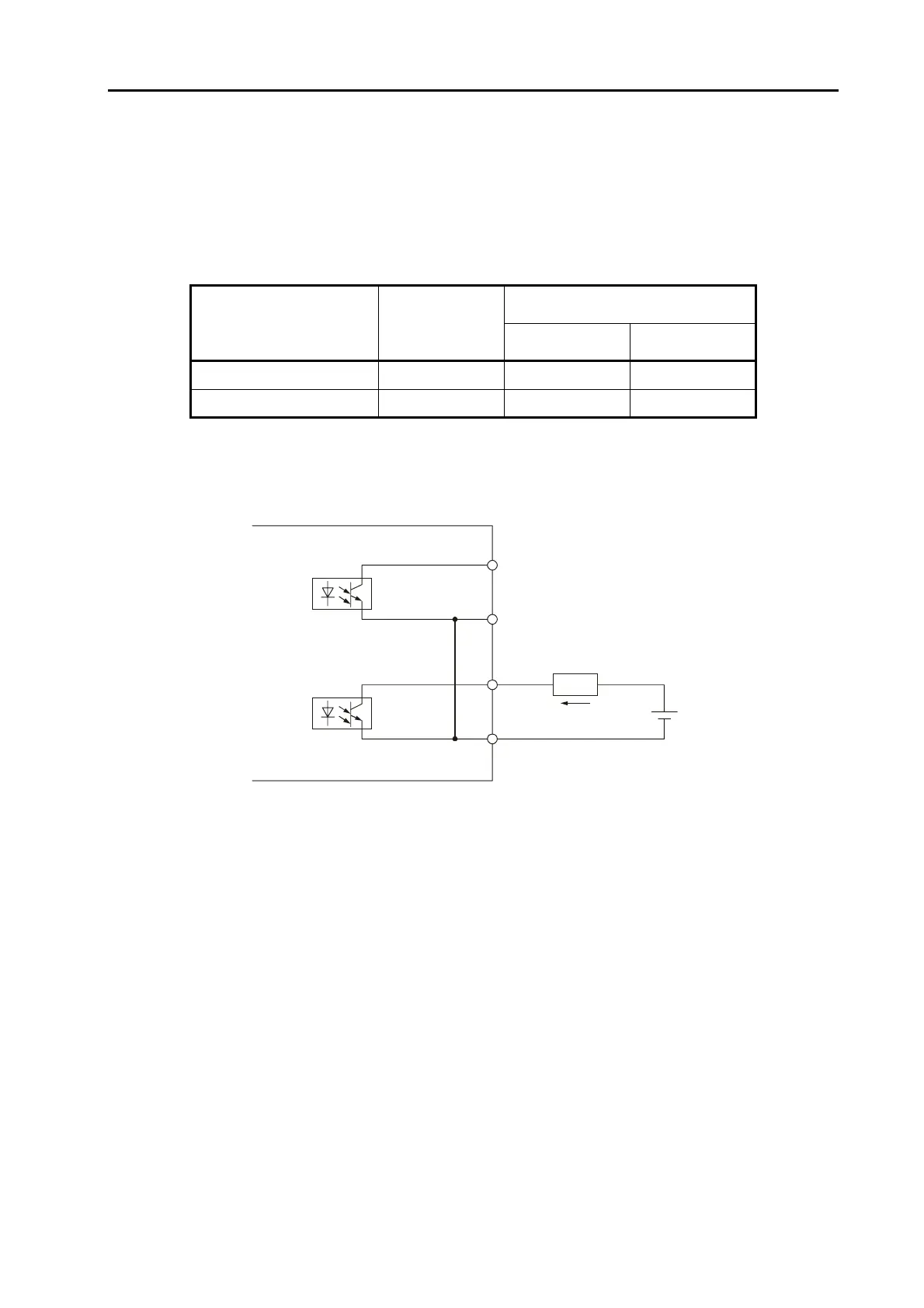

Table 4-1 PSO terminal settings
Sequence output signal
default values
Terminal Parameter No.
setting data output signal
PSO4A-PSO4B-PSO4C C33-0 5 LCL
PSO5A-PSO5B-PSO5C C33-1 6 REV
The sequence output (PSO4, 5) terminals are laid out in CN1. (Appendix Table 1)
CN1-21
CN1-24
CN1-25,26
Load
max. 50mA
max. 30V
PSO4
PSO5
V23-PI0
CN1-22, 23
Fig. 4-1 PSO terminal connection
