GE VAT2000 Series User Manual

3. Parallel Data Input
- 7 -
3-3. Signal logic and circuit format selection
(1) Signal logic selection (D0 ~ D15)
Dn = 1 when the contact connected to D0 to D15 is ON (closed circuit), or Dn = 1 when the
contact is OFF (open circuit) can be selected with parameter No. C32-1. (Appendix Table 3)
(2)Signal common selection (W1)
Setting of all signal commons to EX0 or EX24 can be selected with the W1 setting.
The sequence output method open collector and open emitter can both be corresponded to with
this.
V23-PI0
W1
EX0
EX24
1
2
D0~D15
TB1-2
TB1-1
STB, LSB
Controller such as sequencer
Open collector output
Open emitter output
External
24V power supply
+
-
5 K
5 K

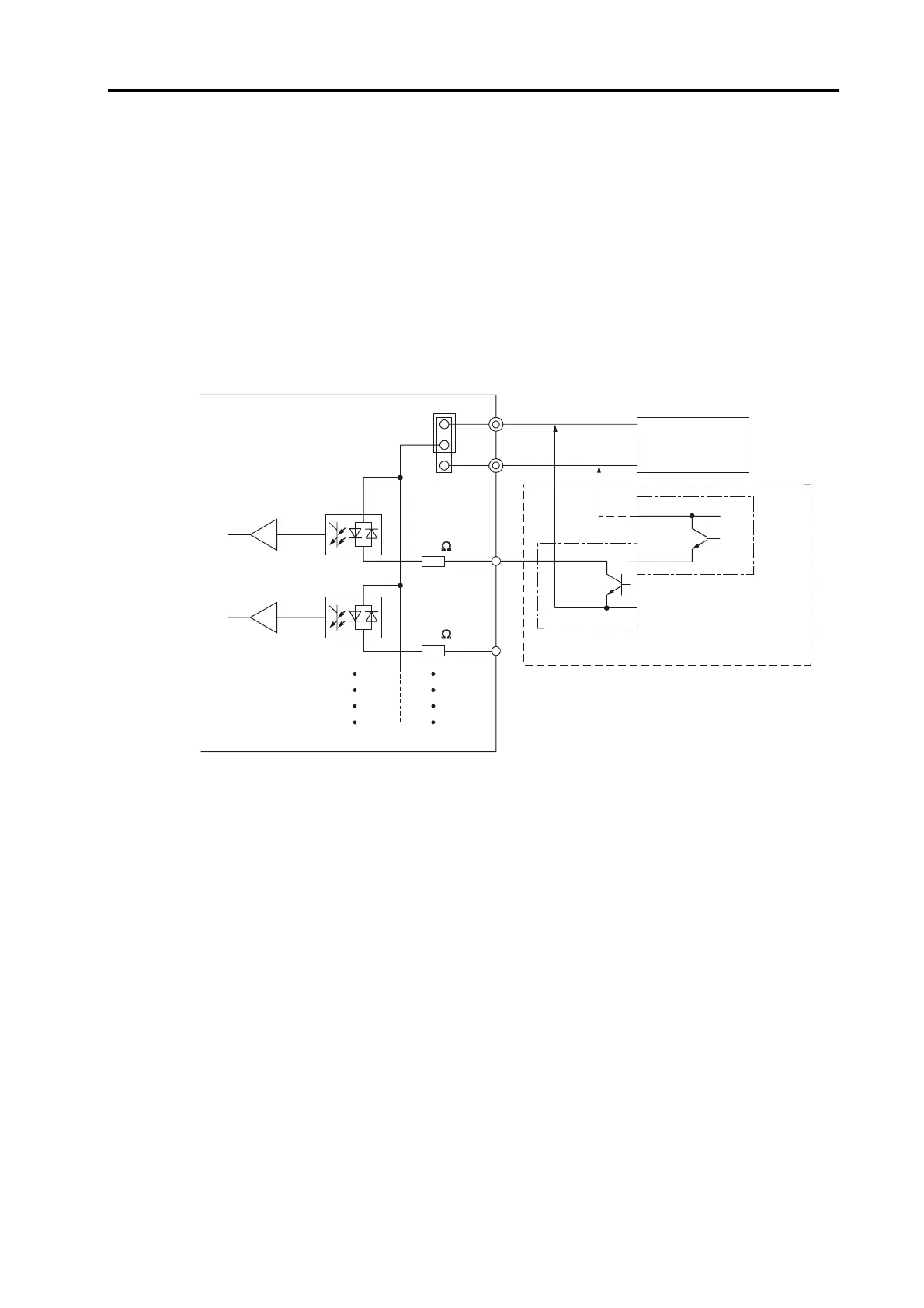

Fig. 3-5 Short pin W1 setting
