10

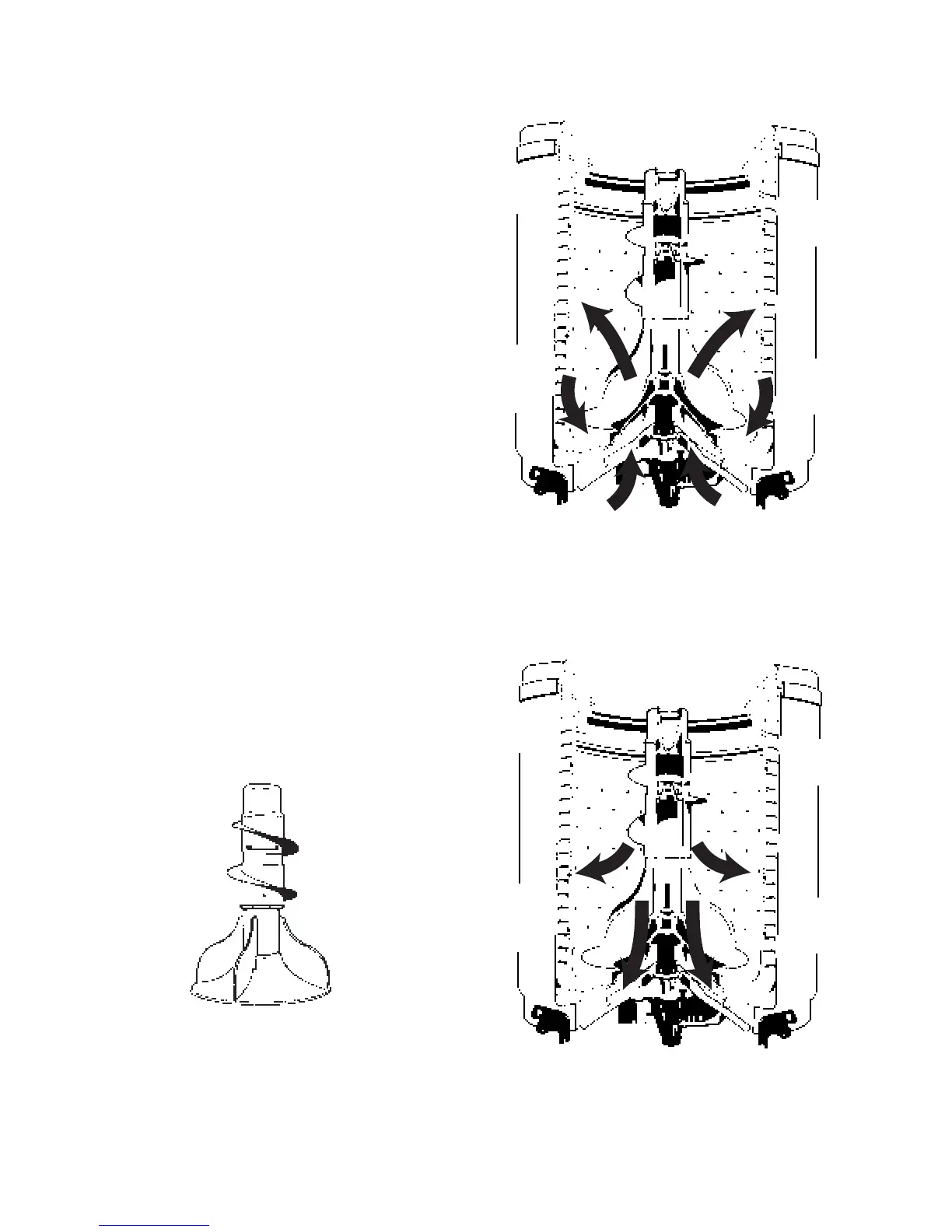

Lint Removal System
WASH
DRAIN
The lint filtering system consist of the turbo pump,
agitator, air bell, and self cleaning filter at bottom of
spin basket. During agitate water moves throught
the sides and up from the bottom throught the self
cleaning filters.
During pump down, prior to spin, the turbo pump is
energized, and water is drawn out the sides and
down through the self cleaning filter to clean and
removal lint from the bottom side of the filter area,
and flush lint down the drain.
Energy Saving
All wash cycles include energy-saving cold water
rinse. Connector in backsplash can be connected
for warm rinse.
Total Cycle Time
18.5 minute wash cycle, plus fill time. Wash time
is 11 minutes with a final spin speed of approxi-
mately 630 RPM. Washer will automatically shut
off at end of cycle.
1.
Dual Action Agitator
