20
Transmission

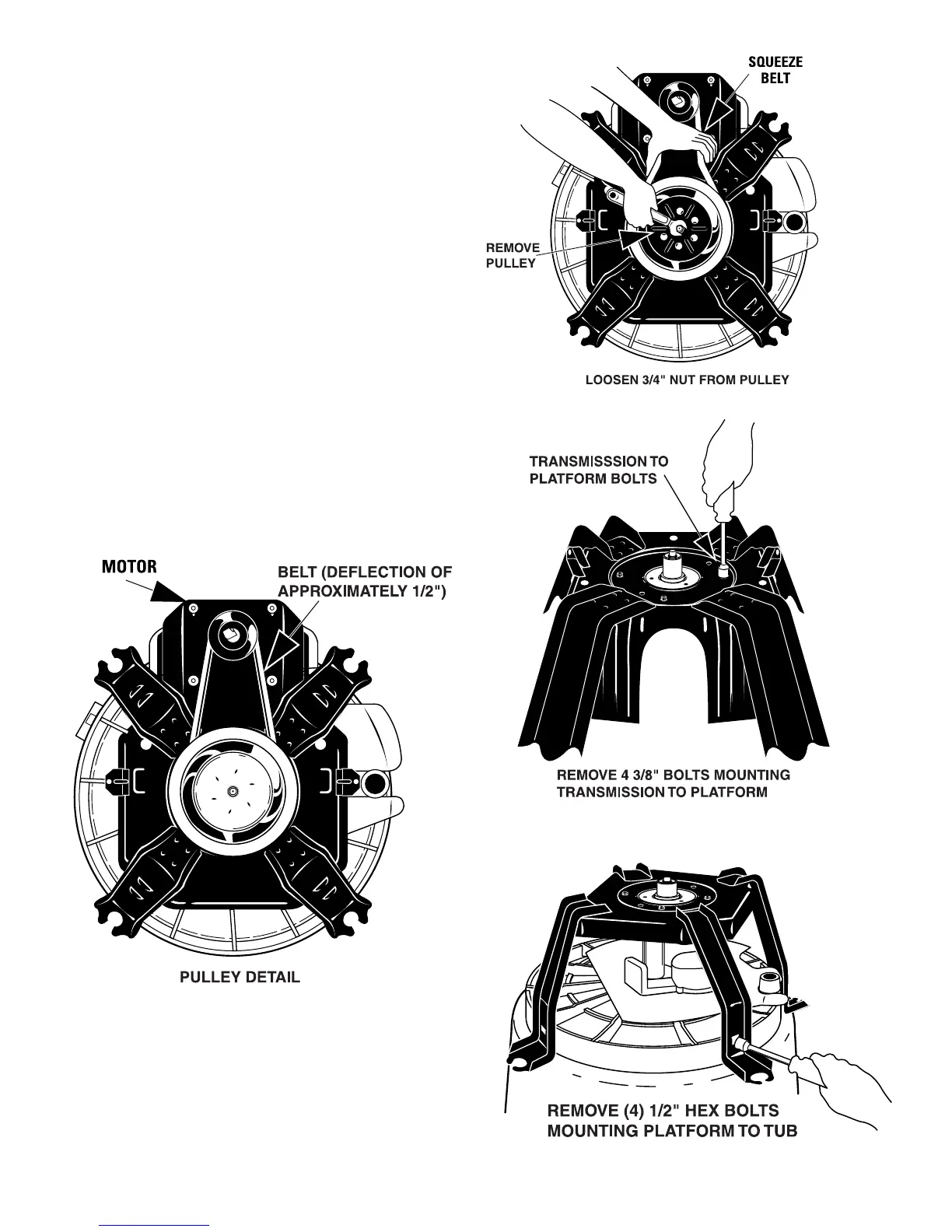

To Service Transmission:
1. with motor/tub/transmission assembly upside down,
loosen motor mounts to release belt tension.
2. Remove transmission drive pulley by holding belt to-
gether as shown. Remove pulley nut. (1 3/4”)
3. After pulley is removed, remove (4) 3/8” bolts mount-
ing the transmission mounting plate to leg and platform
assembly.
4. Remove (4) 1/2” hex bolts mounting platform and leg
assembly to tub. Remove wire tie fastening overflow
tube.
5. Remove leg and platform support.
6. Lift transmission up and out. Transmission/brake as-
sembly is one component, and is replaced as a single
component. Transmission assembly is not technician
serviceable.
7. Reverse and repeat steps 1-6 to replace transmis-
sion/brake assembly.
