19
Clutch
To Remove Clutch:
Clutch can be ordered as a repair part, and is not
shipped with the motor. A common clutch is used for
both single and two speed motors.

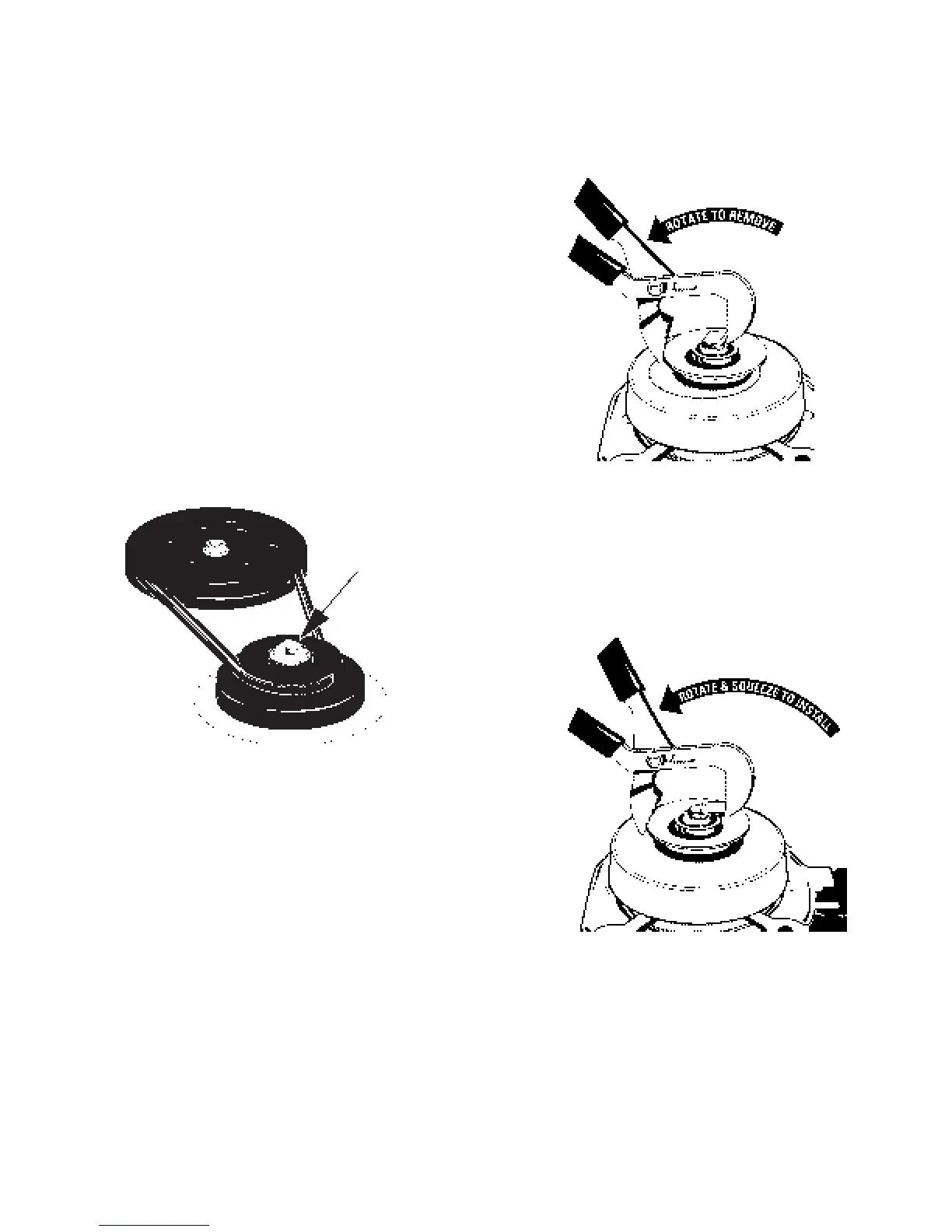

1. Remove non reusable sping clip by grasping clip with
pliers, as shown in illustration, and rotate to remove.
2. To reinstall, place clutch over motor shaft until it is
seated. Align clip so that the clip bottom aligns with flats
in motor shaft.
3. Rotate and squeeze to install
NOTE: Belt tension is about 1/2” deflection when
installed. This can be check by flexing the belt be-
tween the thumb and forefinger and pushing the
two sides of the belt towards the center for a total
movement of approximately 1/2”
INSTALL SPRING CLIP
INSTALL SPRING CLIP
"ONE TIME USE"
SPRING CLIP
(TECH TIP: To reassemble use method shown in
illustration, place and align a new spring clip in
the position shown, and roll the clip into place.)
