3.2 Installation
3.2.1 Installation methods

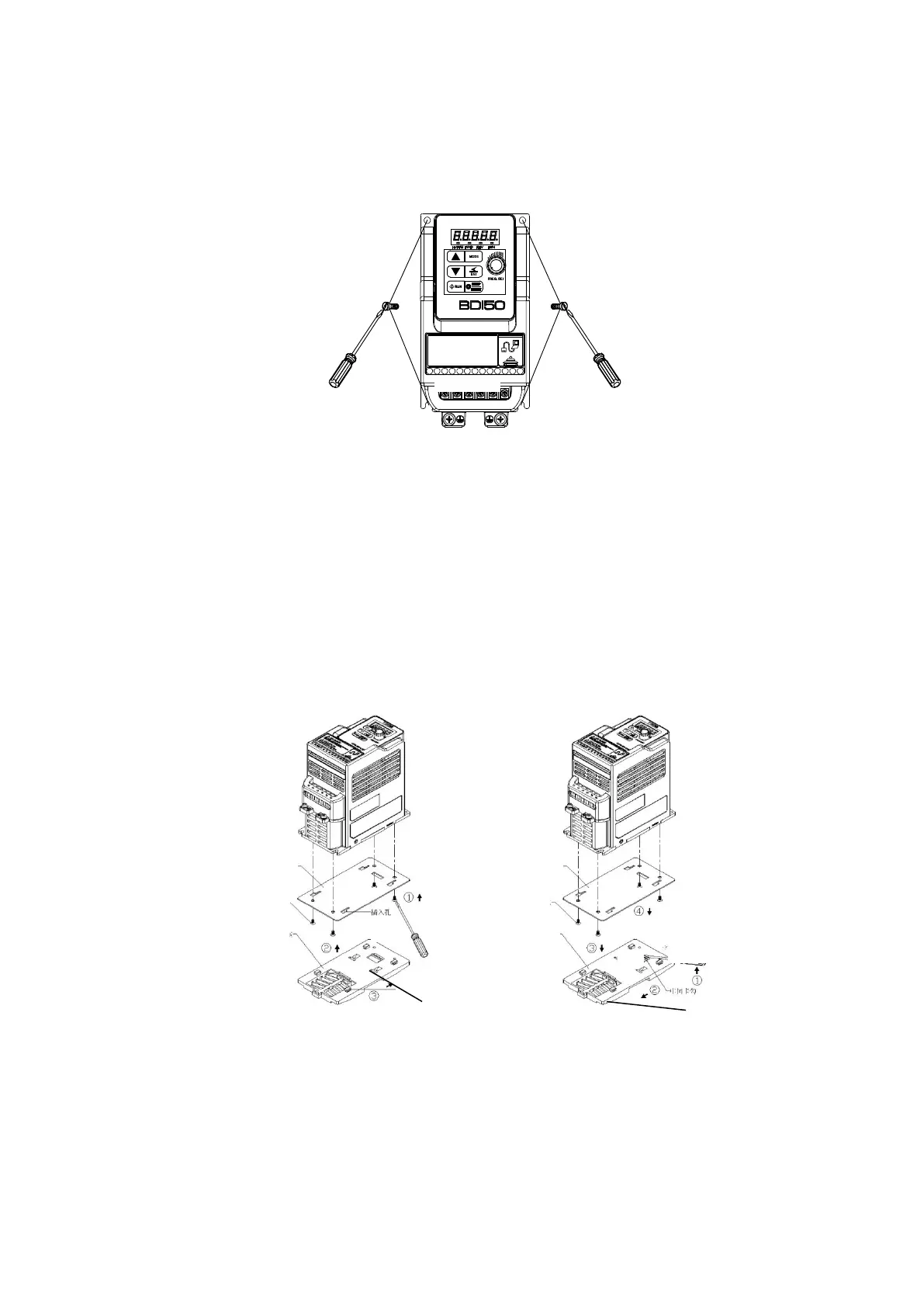

Size1. Mounting on a flat surface.
Din rail type installation
Din rail kit includes a plastic and a metal adaptor plates.
Assembly Steps:
1) Attach the metal adaptor plate to the inverter base with the screws provided.
2) Attach the plastic Din rail adaptor to the metal adaptor plate.
3) Push the plastic adaptor forward to lock into position.
Disassembly Steps:
1) Unlock by pushing the snap hooks
2) Retract and remove the plastic Din rail adaptor.
3) Unscrew the metal plate &Remove
Note
KIT DIN BDI50 Size 1 (Din rail kit part model), including the following parts
1. Metal plate adaptor
2. Plastic adaptor
3. Chamfer head screw: M3×6
