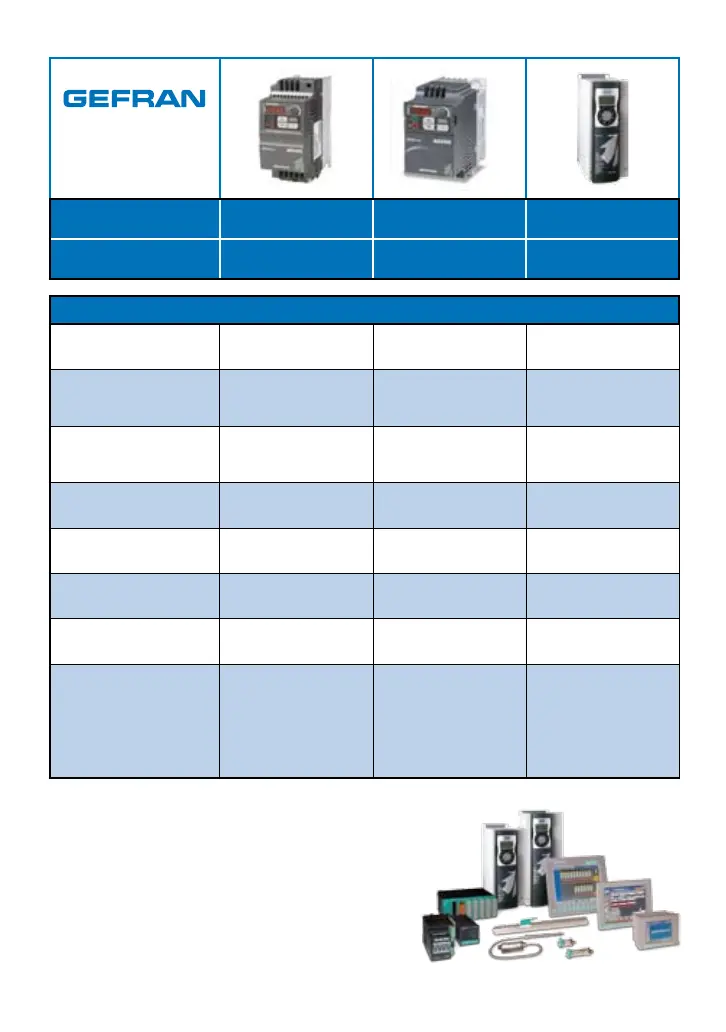

Drive & Motion
Control Unit
Technology
Controllo
V/f control V/f & Sensorless Vector Vector Field Oriented
Vettoriale Orientam. di Flusso
Torque Vector
Vettoriale di coppia
Flux Vector
Vettoriale di usso
Servo
Digital DC
Convertitori Digitali
Model
Modello
ADV20 ADV50 ADV200 AGy-EV AVy XVy-EV TPD32
Specications - Speciche Specications - Speciche
Power
Potenza
0.5 … 5 Hp
0,4… 3,7 kW
0.5 … 15 Hp
0,4… 11 kW
1 … 60 Hp
0,75… 45 kW
1 … 250 Hp
0,75 … 200 kW
1 … 700 Hp
0,75 … 630 kW
2 … 450 Hp
1,5 … 315 kW
20 A … 4800 A
Voltage
Tensione
100...120 Vac, 1ph
200...240 Vac, 1ph
380...480 Vac, 3ph
200...240 Vac, 1ph
200...240 Vac, 3ph
380...480 Vac, 3ph
400 … 480 Vac, 3ph 230 … 575 Vac, 3ph 230 … 690 Vac, 3ph 230 … 480 Vac, 3ph 230 … 690 Vac, 3ph
Speed regulation (accuracy)
Regolazione di velocità
(precisione)
0,5%
0,5%, 0,02% with dig. encoder
0,5%, 0,02% con encoder dig.
± 0,01% Rated motor speed (4) 0,5 … 1% 0,01% (1) absolute 0,01% (1)
Analog inputs
Ingressi analogici
1 voltage or current
1 in tensione o corrente
2 (1 current; 1 voltage)
2 (1 corrente, 1 in tens.)
2 bipolar (current; voltage)
2 bipolari (corrente, in tens.)
3 (±10V), differential
3 (±10V), differenziali
33 (±10V), differential
3 (±10V), differenziali
2 (±10V), differential
2 (±10V), differenziali
3 (±10V), differential
3 (±10V), differenziali
Analog outputs
Uscite analogiche
1 (voltage)
1 (tensione)
1 (voltage)
1 (tensione)
2 (1 voltage or current; 1 voltage)
2 (1 in tens. o corrente, 1 in tens.)
3 (±10V) 2 (±10V) 2 (±10V) 2 (±10V)
Digital inputs
Ingressi digitali
6 6 6 8 8 8 8
Digital outputs
Uscite digitali
1 (relay)
1 (relè)
2 (1 static and 1 relay)
2 (1 statica e 1 a relè)
4 (2 static and 2 relays)
4 (2 statiche e 2 a relè)
4 (2 static and 2 relays)
4 (2 statiche e 2 a relè)
4 (2 static and 2 relays)
4 (2 statiche e 2 a relè)
7 (6 static and 1 relays)
7 (6 statiche e 1 a relè)
6 (4 static and 2 relays)
6 (4 statiche e 2 a relè)
Communications
Comunicazioni seriali
RS-485 (RJ-45) with Modbus
protocol (3).
Optional: DeviceNet,
Probus,
LonWorks,
CANopen
RS-485 (RJ-45) with Mod-
bus protocol (3).
Optional: DeviceNet,
Probus,
LonWorks,
CANopen
RS485, (3)
Modbus RTU,
DeviceNet,
Probus DP,
CANopen, GDNet
RS485, (3)
Modbus RTU,
DeviceNet,
Probus DP,
CANopen
RS485, (3)
Modbus RTU,
DeviceNet,
Probus DP,
CANopen
RS485, (3)
Modbus RTU,
DeviceNet,
Probus DP,
CANopen,
FastLink, GDNet
RS485, (3)
Modbus RTU,
DeviceNet,
Probus DP,
CANopen,
Interbus S
1) w/ sin encoder, 0,2% w/ DE
1) Con encoder sinusoidale. Con encoder digitale 0,2%.
2) w/ sin encoder, 1000:1 w/ DE
2) Con encoder sinusoidale, con encoder digitale 1000:1
3) RS485 port is used for programming (PC) and control (Modbus com-
munication standard in all the drive series)
3) La porta seriale RS485 è utilizzata per la programmazione (PC) e
controllo (comunicazione Modbus standard in tutti i drive)
4) Referred to standard 4 poles motor
4) Riferito a motori standard 4 poli
