The specification for the control terminals
RS-485 port
10VMI1 MI2 MI3 MI4 MI5 MI6 DCM 24V DCM
A
CM AVI ACI
AFM MC M MO1
RA
RB RC

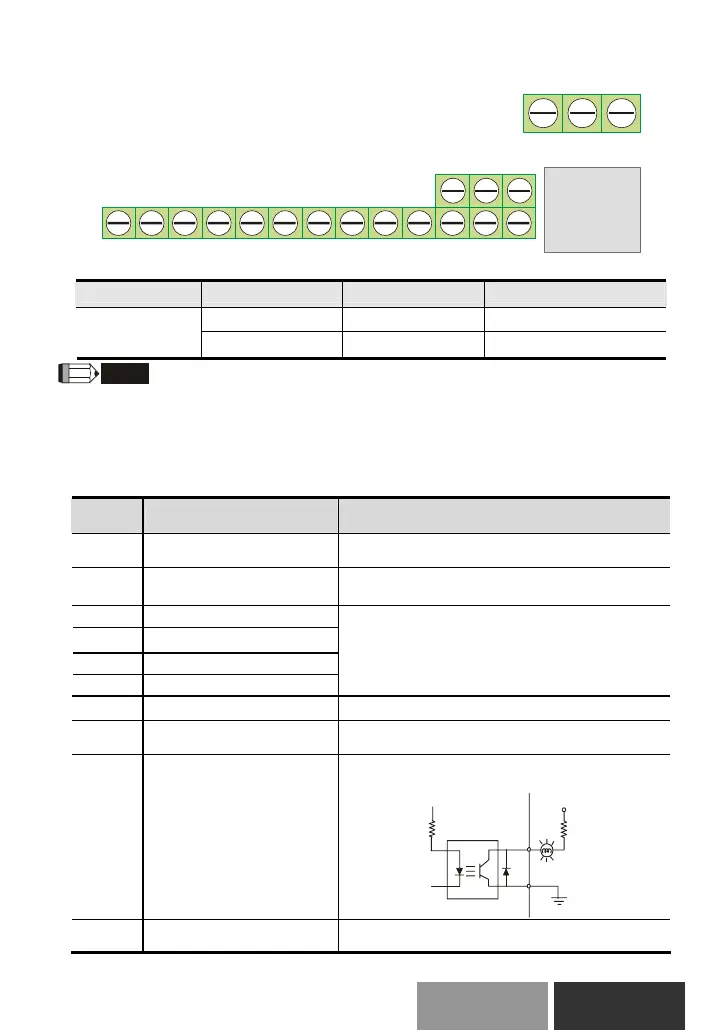

The position of the control terminals
Terminals 2
Terminals 1
Frame Control Terminals Torque Wire
Terminals 1 5 kgf-cm (4.4 in-lbf) 12-24 AWG (3.3-0.2mm
2
)
A, B, C
Terminals 2 2 kgf-cm (2 in-lbf) 16-24 AWG (1.3-0.2mm
2
)
NOTE
Frame A: ADV50-1004-XXX-2MF/4F, ADV50-1007-XXX-2M-F/2T/4F, ADV50-1015-XXX-2T/4F
Frame B: ADV50-2015-XBX-2MF, ADV50-2022-XBX-2M-F/2T/4F, ADV50-2037-XBX-2T/4F
Frame C: ADV50-3055-2T/4F, ADV50-3075-XBX-2T/4F, ADV50-3110-XBX-4F
Control Terminals Explanations
Terminal
Symbol
Terminal Function
Factory Settings (NPN mode)
ON: Connect to DCM
MI1 Forward-Stop command
ON: Run in MI1 direction
OFF: Stop acc. to Stop Method
MI2 Reverse-Stop command
ON: Run in MI2 direction
OFF: Stop acc. to Stop Method
MI3 Multi-function Input 3
MI4 Multi-function Input 4
MI5 Multi-function Input 5
MI6 Multi-function Input 6
Refer to Pr.04.05 to Pr.04.08 for programming the
Multi-function Inputs.
ON: the activation current is 16mA.
OFF: leakage current tolerance is 10
μ
A.
+24V DC Voltage Source +24VDC, 20mA used for PNP mode.
DCM Digital Signal Common
Common for digital inputs and used for NPN
mode.
MO1
Multi-function Output 1
(Photocoupler)
Maximum 48VDC, 50mA
Refer to Pr.03.01 for programming
MO1-DCM
Mo1
MCM
Max: 48Vdc
50mA
internal circuit
MCM Multi-function output common Common for Multi-function Outputs
