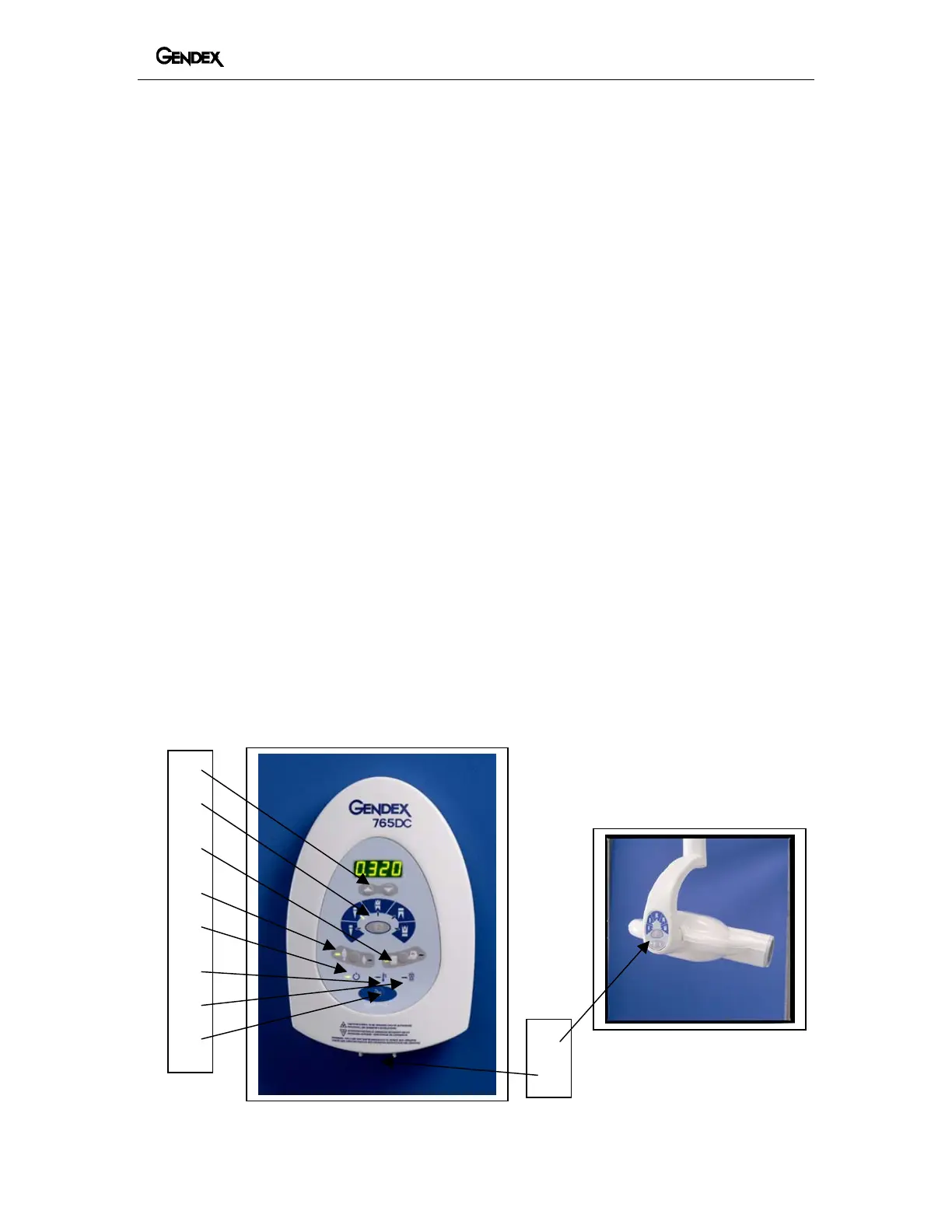

OPERATING CONTROLS
1. TIME SELECTION - Allows the
operator to override the anatomical
preset time and adjust the exposure time
up or down to a specific value on the
R10 scale.
2. ANATOMICAL TIME SELECTION
- Allows the operator to select the
exposure time based on the tooth area
desired.
3. IMAGING TYPE SELECTION - A
toggle function that allows the operator
to select between the use of film or a
digital imaging system. This will modify
all of the preset anatomical time
selections.
4. PATIENT SELECTION - A toggle
function that allows the operator to
select either an adult or a child. This will
modify all of the preset anatomical time
selections.
5. READY INDICATOR LAMP -
Indicates that the "On" switch has been
pushed and the system is ready for
operation.
6. COOL-DOWN INDICATOR LAMP -
This lamp will light when the duty cycle
of the system requires that the tubehead
cool before the next exposure.
7. RADIATION INDICATOR LAMP -
This lamp will light when the exposure
button is pressed indicating that x-ray
radiation is being produced.
8. PUSH-BUTTON EXPOSURE
SWITCH - Allows the operator to
initiate the exposure directly from the
control panel when it is mounted outside
the operatory.
9. COIL-CORD EXPOSURE SWITCH
(Optional – Not Shown) - Allows the
operator to exit the operatory and then
initiate the exposure.
10. SECONDARY TUBEHEAD
CONTROLS - This allows the operator
to verify and adjust if necessary the
anatomic exposure times directly at the
tubehead. A lamp also indicates whether
the adult or child setting has been
selected.
11. POWER SWITCH - Depressing the
switch to the "on" position will supply
power to the control. The Ready
Indicator Lamp on the control panel will
indicate that the system is ready for use.
1
2
3
4
5
6
7
8
10
11
