Section 2 General Information and Setup

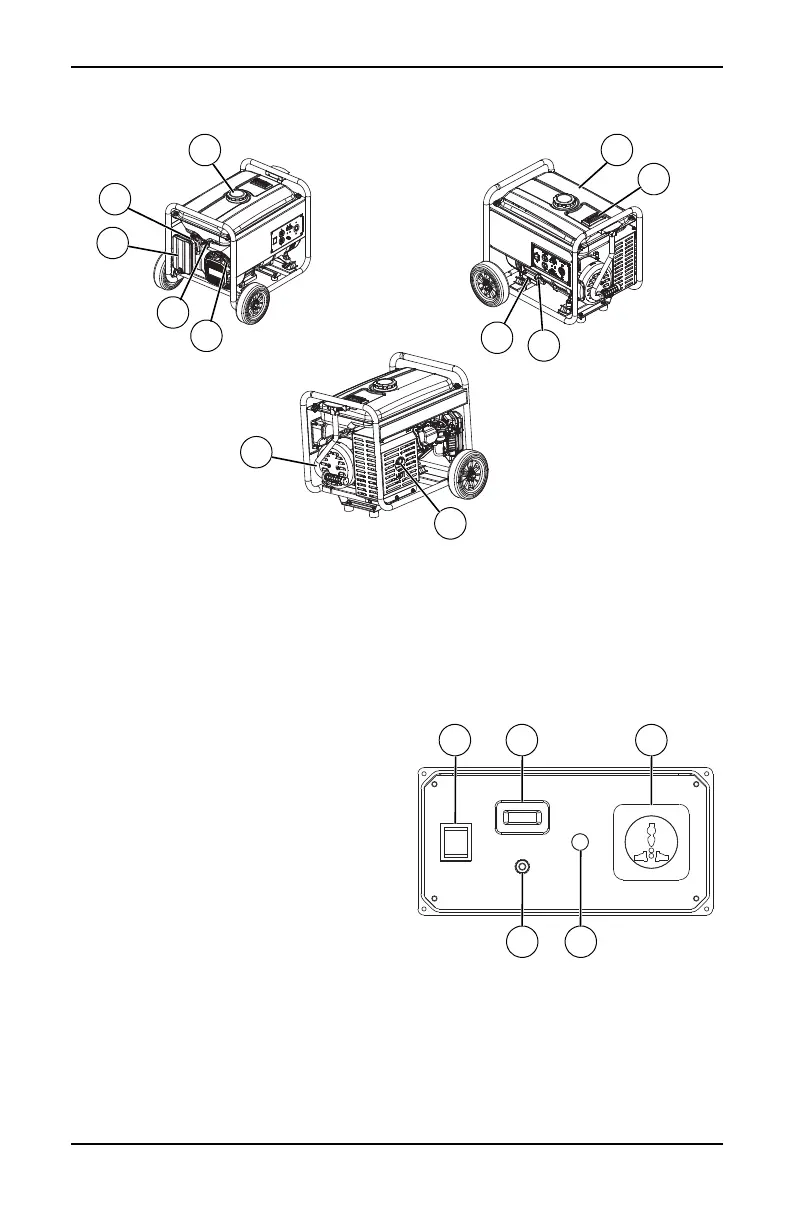

Figure 2-1. Features and Controls
TABLE 1. Generator Components
Figure 2-2. GP1000 Control Panel (Argentina,
Chile) / GP1100 (Peru)
004453
004454
004452
17
12
14
15
19
21
13
16
18
11
20
1 Engine Run/Stop Switch
2 Hour Meter
3 220 Volt Universal Receptacle
4 Push Button Circuit Breaker
5 Grounding Lug
6 120 Volt, 15 Amp Receptacle
(NEMA 5-15)
7 Toggle Circuit Breaker
8 120 Volt, 20 Amp Duplex Receptacle
(5-20R)
9 120/240 Volt, 20 Amp Twistlock
Receptacle (L14-20R)
10 120 Volt 20 Amp Receptacle (NEMA 5-20)
11 Fuel Tank
12 Gas Cap
13 Choke Knob
14 Air Filter
15 Fuel Shut Off
16 Recoil Starter
17 Fuel Gauge
18 Handle
19 Oil Fill / Dipstick
20 Oil Drain
21 Muffler
004455
1 2 3
5 4
